Description

Price

1

SEAT ASSY

53002-1015

$212.15

1

SEAT ASSY,DUAL

53002-1016

$332.88

1

SEAT ASSY,DUAL

53002-1016

$332.88

1

SEAT ASSY

53002-1007

$213.38

2

PIN,SNAP

554A0600

$0.93

3

HINGE,BLACK

53009-017-10

Unavailable

4

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

5

WASHER SPRING 6MM

461F0600

$0.69

6

BOLT-UPSET,6X12

112G0612

$1.45

7

PIN,6X48

53011-002

$5.96

8

DAMPER,DUAL SEAT

92075-023

$4.92

9

DAMPER,SEAT

92075-216

Unavailable

10

BOLT-UPSET 6X14

112B0614

Unavailable

11

HOOK,SEAT

53008-021

$11.34

12

HOOK-ASSY,SEAT

53045-014

Unavailable

13

DAMPER RUBBER,BATERY

92075-224

Unavailable

14

STAY,SEAT

53054-003

Unavailable

15

SPRING,SEAT HOOK

53055-001

Unavailable

16

PIN COTTER 2.0X15

550D2015

$1.04

17

SCREW PAN HEAD 6X12

220B0612

Unavailable

18

WASHER SPRING 6MM

461F0600

$0.69

19

WASHER PLAIN 6MM

411B0600

$2.84

20

CASE-CHAIN,FR BLACK

36014-043-21

$48.73

21

WASHER PLAIN 6MM

411B0600

$2.84

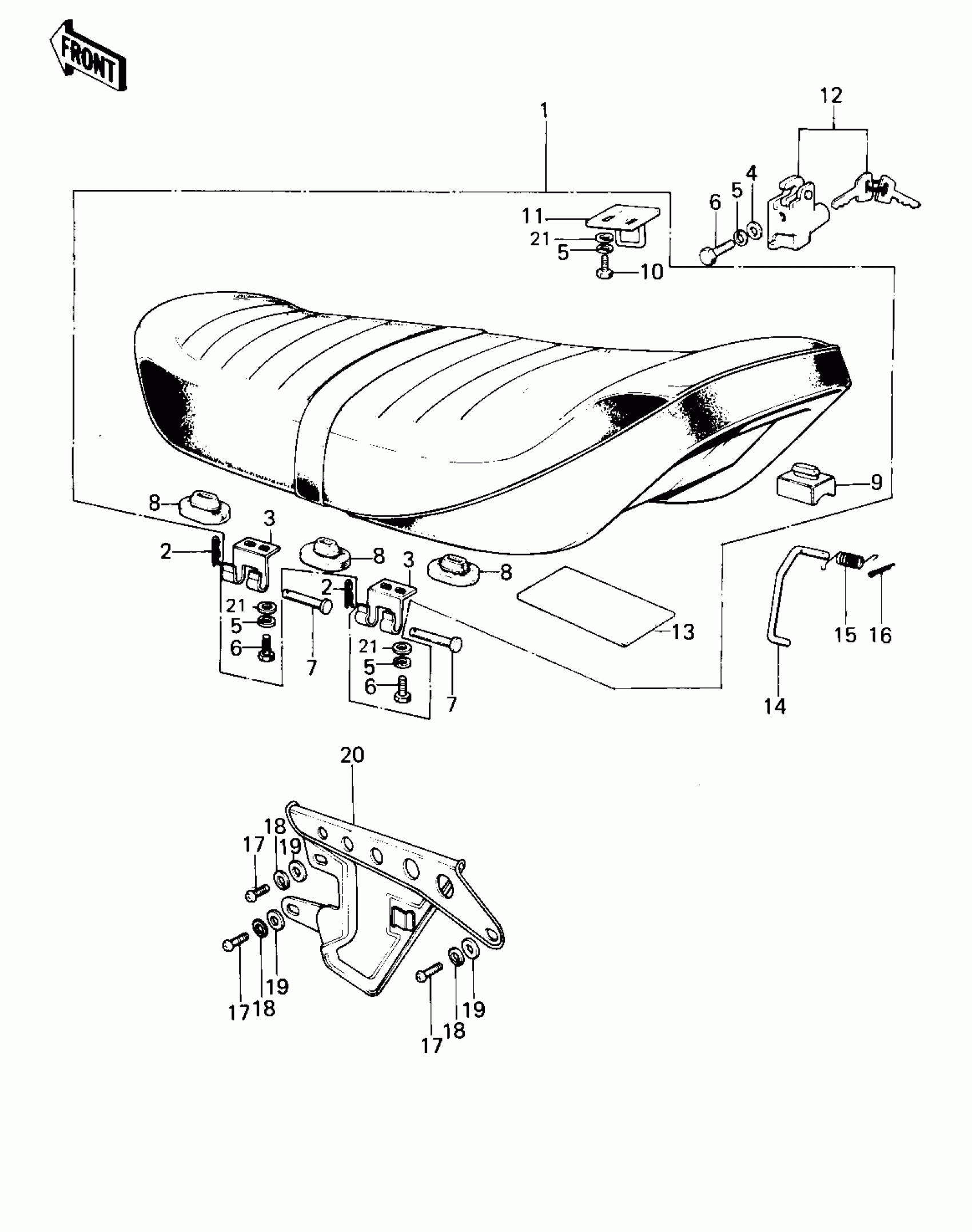

Kawasaki KE100 SEAT/CHAIN COVER Diagram

SEAT ASSY

SEAT ASSY,DUAL

SEAT ASSY,DUAL

SEAT ASSY

PIN,SNAP

HINGE,BLACK

WASHER-PLAIN-SMALL,6MM

WASHER SPRING 6MM

BOLT-UPSET,6X12

PIN,6X48

DAMPER,DUAL SEAT

DAMPER,SEAT

BOLT-UPSET 6X14

HOOK,SEAT

HOOK-ASSY,SEAT

DAMPER RUBBER,BATERY

STAY,SEAT

SPRING,SEAT HOOK

PIN COTTER 2.0X15

SCREW PAN HEAD 6X12

WASHER SPRING 6MM

WASHER PLAIN 6MM

CASE-CHAIN,FR BLACK

WASHER PLAIN 6MM
