Description

Price

14020

RETAINER,SEALED BEAM

23072-002

$39.06

14024

COVER,HEAD LAMP SOCKET

23081-001

$8.08

23004

LAMP-HEAD

23004-1030

$231.02

23005

BODY-COMP-HEAD LAMP,BLACK

23005-1007-6Z

Unavailable

23006

RIM-LAMP

23006-1004

$72.77

23007

LENS-COMP,"4020" MARK

23007-055

Unavailable

23008

SOCKET-ASSY,HEAD LAMP

23008-044

$22.32

92009

SCREW,LENS FITTING

23019-026

$4.51

92009A

SCREW,FOCUS ADJUSTING

23019-027

$4.51

92015

NUT,ADJUSTING

23020-012

$3.91

92015A

NUT,FLANGED,8MM

92015-1014

$0.65

92022

WASHER

23021-010

$4.31

92027

COLLAR,L=15.6

92027-1105

$7.62

92075

DAMPER,HEAD LAMP

92075-1077

$7.22

92075A

DAMPER,HEAD LAMP

92075-1078

$5.59

92081

SPRING,HEAD LAMP LENS

23009-015

$5.44

92081A

SPRING,FOCUS ADJUSTING

23014-012

$5.88

154

BOLT-WP-SMALL

154N0830

$5.11

223

SCREW-PAN-WS-CROS,5X12

223B0512

$1.79

311

NUT-HEX

311B0400

$0.52

461

WASHER SPRING 5MM

461F0500

$0.69

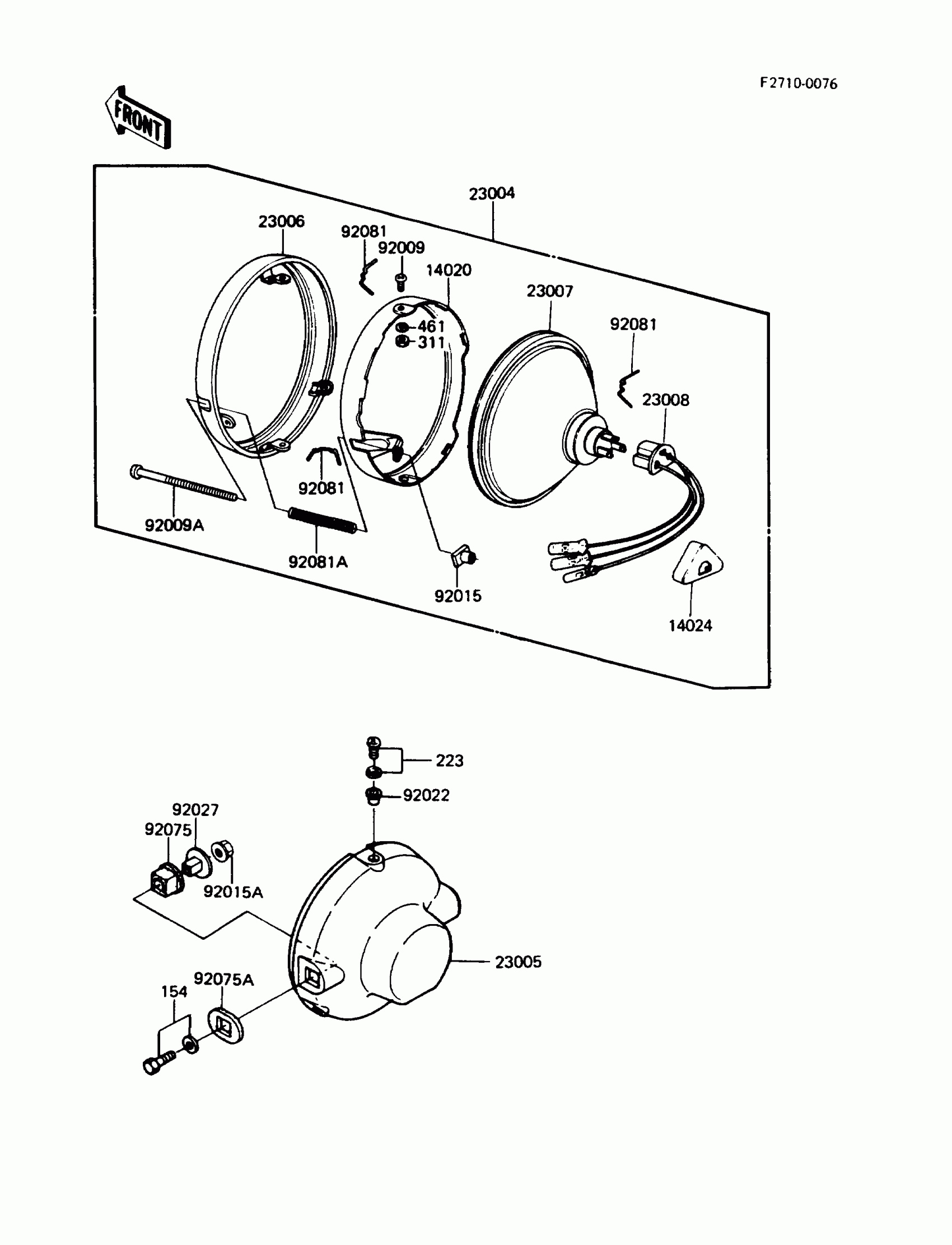

Kawasaki KE100 Head Lamp Diagram

RETAINER,SEALED BEAM

COVER,HEAD LAMP SOCKET

LAMP-HEAD

BODY-COMP-HEAD LAMP,BLACK

RIM-LAMP

LENS-COMP,"4020" MARK

SOCKET-ASSY,HEAD LAMP

SCREW,LENS FITTING

SCREW,FOCUS ADJUSTING

NUT,ADJUSTING

NUT,FLANGED,8MM

WASHER

COLLAR,L=15.6

DAMPER,HEAD LAMP

DAMPER,HEAD LAMP

SPRING,HEAD LAMP LENS

SPRING,FOCUS ADJUSTING

BOLT-WP-SMALL

SCREW-PAN-WS-CROS,5X12

NUT-HEX

WASHER SPRING 5MM
