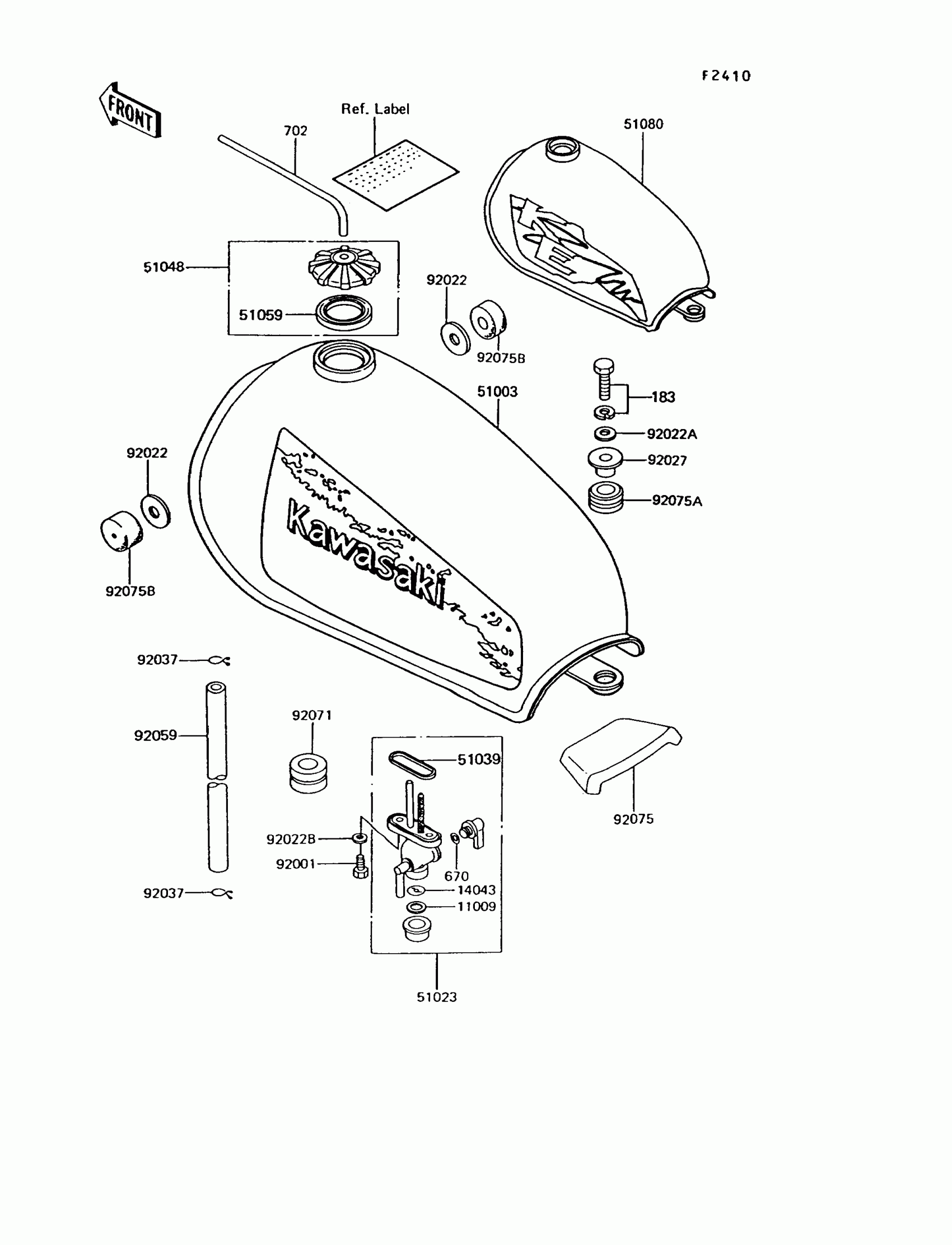

Kawasaki KE100 Fuel Tank(KE100-B11/B12/B13/B14) Diagram

Description

Price

183

BOLT-UPSET-WS-SMALL

183B0835

Unavailable

670

O RING,10MM

670B2010

$1.50

702

TUBE-RUBBER,5X300

702A05300

$29.14

11009

GASKET,FUEL TAP CUP

11009-1013

$5.42

14043

FILTER,FUEL TAP

14043-1002

$4.53

51023

TAP-ASSY,FUEL

51023-1020

Unavailable

51039

RING,TAP FLANGED

51039-003

$6.27

51048

CAP-ASSY-TANK,FUEL

51048-1004

$38.08

51059

GASKET,FUEL TANK CAP

51059-006

Unavailable

51080

TANK-COMP-FUEL,L.GREEN

51080-5077-7F

$625.95

92001

BOLT,6X20

92001-1091

$3.92

92022

WASHER,10.5X26X2.3

92022-044

$3.92

92022A

WASHER,8.5X26X1.6

92022-092

$4.31

92022B

WASHER-PLAIN

92022-183

$3.92

92027

COLLAR,12.7X15.9X19

92027-223

$6.05

92037

CLAMP,TUBE

92037-010

$3.92

92059

TUBE,4.5X9X310

92059-063

$38.33

92071

GROMMET,PIPE

92071-038

Unavailable

92075

DAMPER,FUEL TANK

92075-106

$17.29

92075A

DAMPER

92075-1086

Unavailable

92075B

DAMPER,FUEL TANK

92075-125

$6.22
