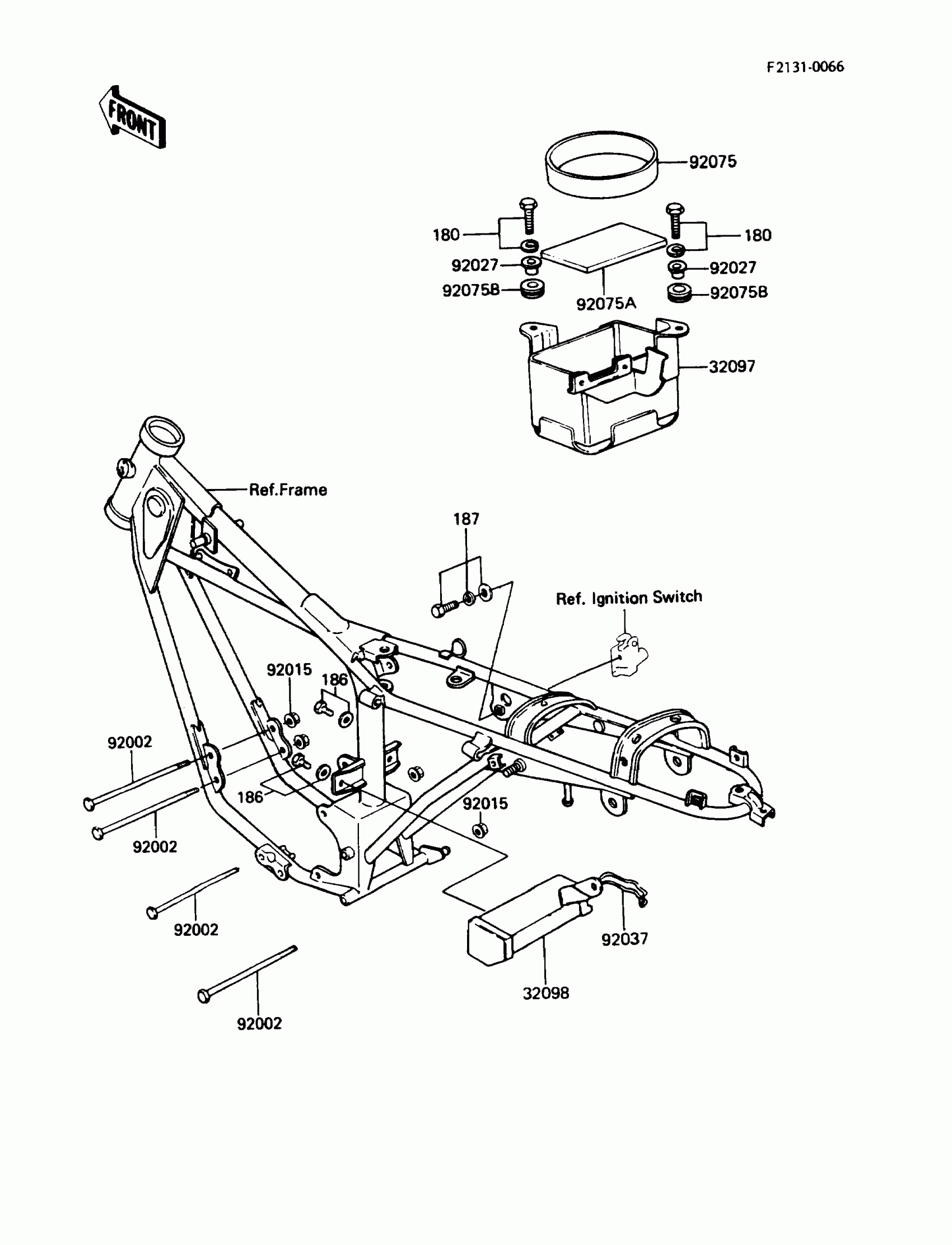

Kawasaki KE100 Frame Fitting Diagram

Description

Price

32097

CASE-BATTERY

32097-1009

Unavailable

32098

CASE-TOOL

32098-018

$87.20

92002

BOLT,10X115

92002-1072

$11.07

92015

NUT,FLANGED,10MM

92015-1180

$4.31

92027

COLLAR

92027-153

$6.22

92037

CLAMP,TOOL CASE

92079-002

$15.65

92075

DAMPER,BATTERY BOTTOM

32103-023

Unavailable

92075A

DAMPER,BATTERY

32103-027

$11.91

92075B

DAMPER RUBBER

92075-051

$3.92

180

BOLT-UPSET-WS

180B0618

$0.88

186

BOLT

186B0614

$0.96

187

BOLT 6X12

187B0612

$1.10
