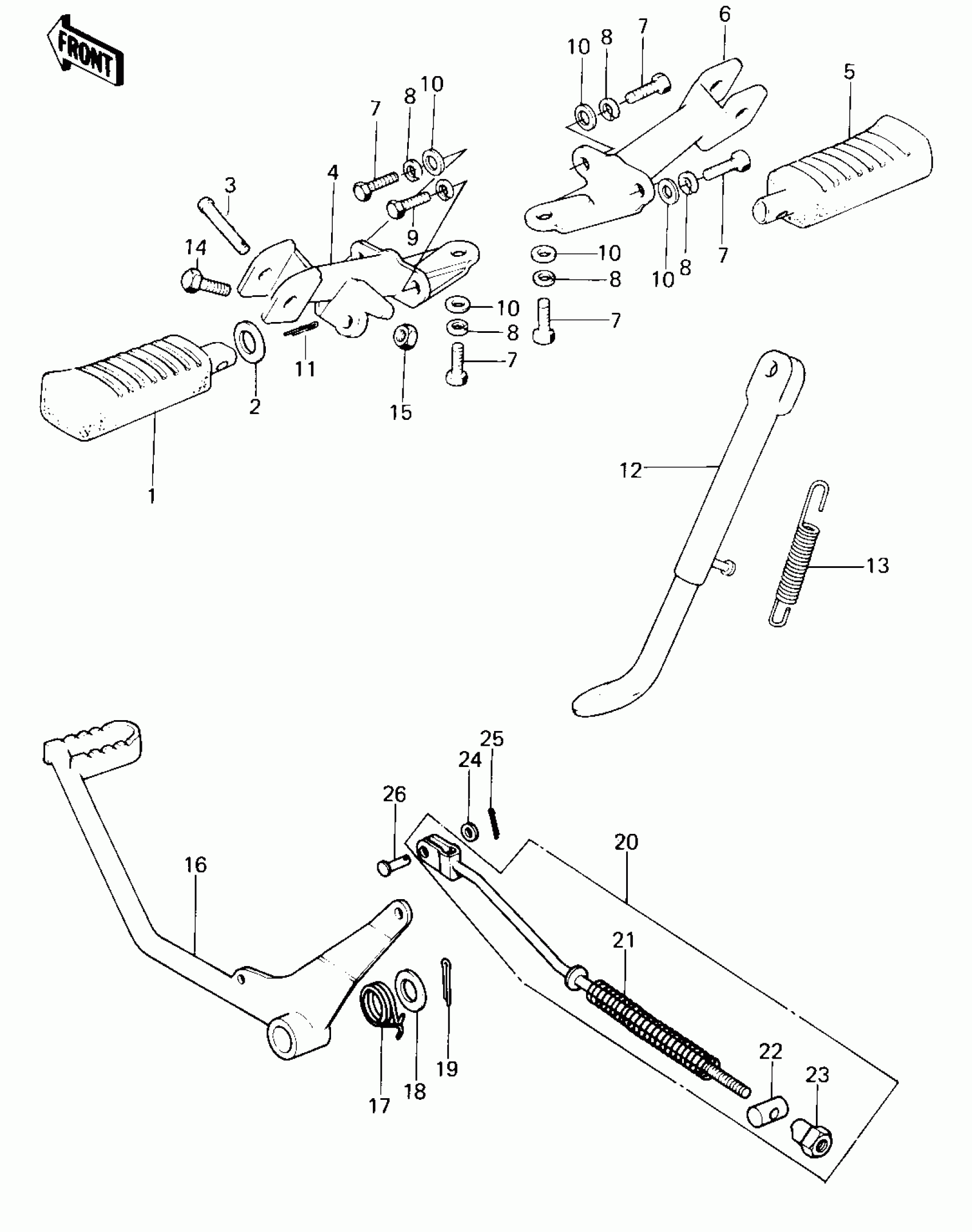

Kawasaki KE100 FOOTRESTS/STAND/BRAKE PEDAL Diagram

#

Description
Price

1

STEP-ASSY,FR,LH

34027-1114

$35.42

2

WASHER,25X36X2.3

92022-250

$5.00

3

PIN,8X31

92043-080

$5.52

4

HOLDER,FOTREST BAR,LH

34003-049

Unavailable

5

STEP-ASSY,FR,RH

34027-1115

$42.54

6

HOLDER-STEP,RH

34003-050

$82.14

7

BOLT-SMALL-UPSET,8X18

115G0818

$5.23

8

WASHER SPRING 8MM

461F0800

$0.40

9

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

10

WASHER PLAIN 8MM

410B0800

$0.93

11

PIN COTTER 2.5X16

550D2516

$2.79

12

STAND-SIDE

34024-037

Unavailable

13

SPRING MAIN STAND

34023-005

$10.92

14

BOLT, HEX HEAD, 10X28

113B1028

Unavailable

15

NUT-HEX-FINE,10MM

315B1000

$0.58

16

LEVER-BRAKE,PEDAL

43001-056

Unavailable

17

SPRING,BRAKE PEDAL

43005-007

Unavailable

18

WASHER-PLAIN-SMALL,14MM

410B1400

$2.01

19

PIN-COTTER,3.0X30

550D3030

$2.51

20

ROD-ASSY-BRAKE

43010-5001

Unavailable

20

ROD-ASSY-BRAKE

43010-5001

Unavailable

21

SPRING,BRAKE ROD

43012-001

$4.65

22

PIN,BRAKE ROD

92043-039

$6.38

23

NUT,BRAKE ROD

92015-042

$6.22

23

NUT,BRAKE ROD

92015-042

$6.22

24

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

25

PIN COTTER 2.0X15

550D2015

$1.04

26

PIN,6X17

92043-064

$4.69
