Description

Price

35004

FENDER-FRONT,P.WHITE

35004-1072-6F

Unavailable

35022

FENDER-COMP-REAR,FR

35022-064

$42.99

35023

FENDER-REAR,RR,P.WHITE

35023-1039-6F

Unavailable

35034

REINFORCE

35034-1075

$78.06

92001

BOLT,6X12

92001-1761

Unavailable

92001A

BOLT,W/SP,6X16

92001-1763

$4.50

92002

BOLT,6X16

92002-1075

Unavailable

92009

SCREW,6X14

92009-1281

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92027

COLLAR,L=3.5

92027-1018

$5.24

92027A

COLLAR

92027-103

$3.58

92075

DAMPER RUBBER

92075-105

$4.38

187

BOLT 6X12

187B0612

$1.10

224

SCREW-PAN-WP-CROS

224B0614

$5.51

312

NUT 6MM

312B0600

$0.72

461

WASHER SPRING 6MM

461F0600

$0.69

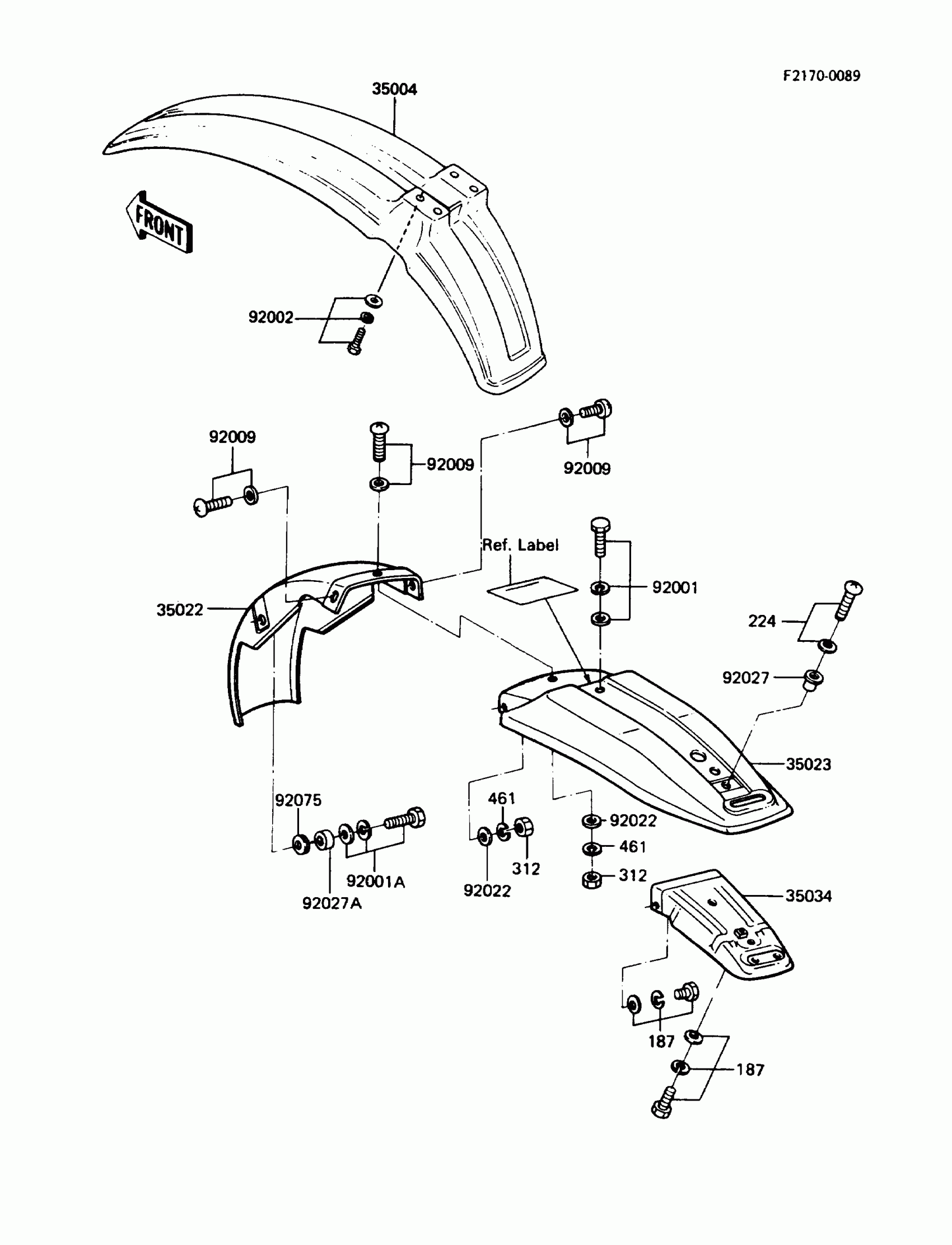

Kawasaki KE100 Fender Diagram

FENDER-FRONT,P.WHITE

FENDER-COMP-REAR,FR

FENDER-REAR,RR,P.WHITE

REINFORCE

BOLT,6X12

BOLT,W/SP,6X16

BOLT,6X16

SCREW,6X14

WASHER,6.5X20X1.6

COLLAR,L=3.5

COLLAR

DAMPER RUBBER

BOLT 6X12

SCREW-PAN-WP-CROS

NUT 6MM

WASHER SPRING 6MM
