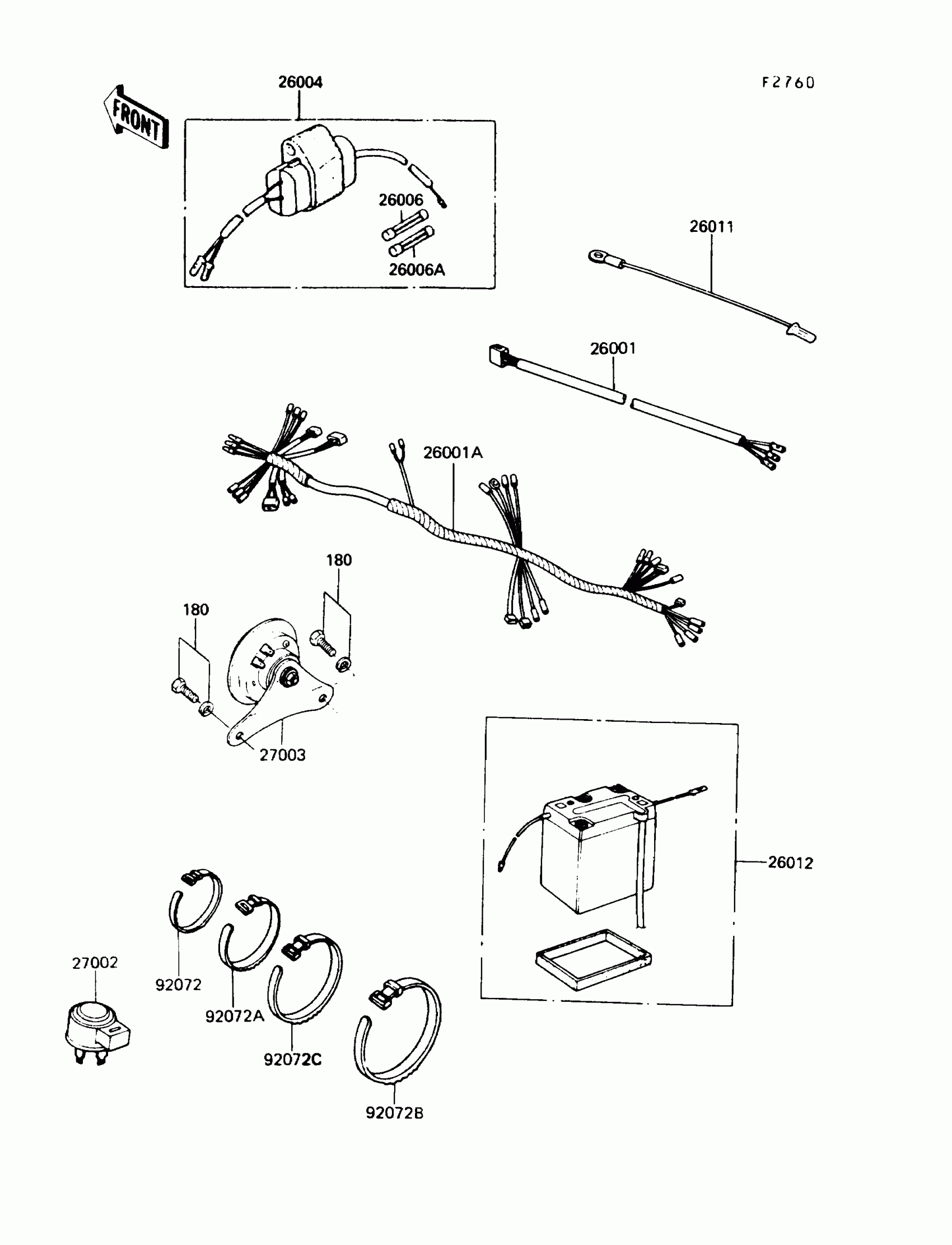

Kawasaki KE100 Electrical Equipment Diagram

Description

Price

26001

HARNESS,TAIL LAMP

26001-1007

$18.72

26001A

HARNESS,MAIN

26001-1275

$135.25

26004

FUSE-ASSY

26004-1010

Unavailable

26006

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

$4.96

26006A

FUSE,15A,L=30

26006-1003

$5.06

26011

WIRE-LEAD

26011-093

Unavailable

26012

BATTERY,6V 6AH,6N6-1D-2(K1)

26012-1193

$45.73

27002

RELAY-ASSY,TURN SIGNAL

27002-013

Unavailable

27003

HORN

27003-1052

$59.84

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92072B

BAND,L=218

92072-032

$5.00

92072C

BAND,L=186

92072-056

$5.00

180

BOLT-UPSET-WS,6X25

180C0625

Unavailable
