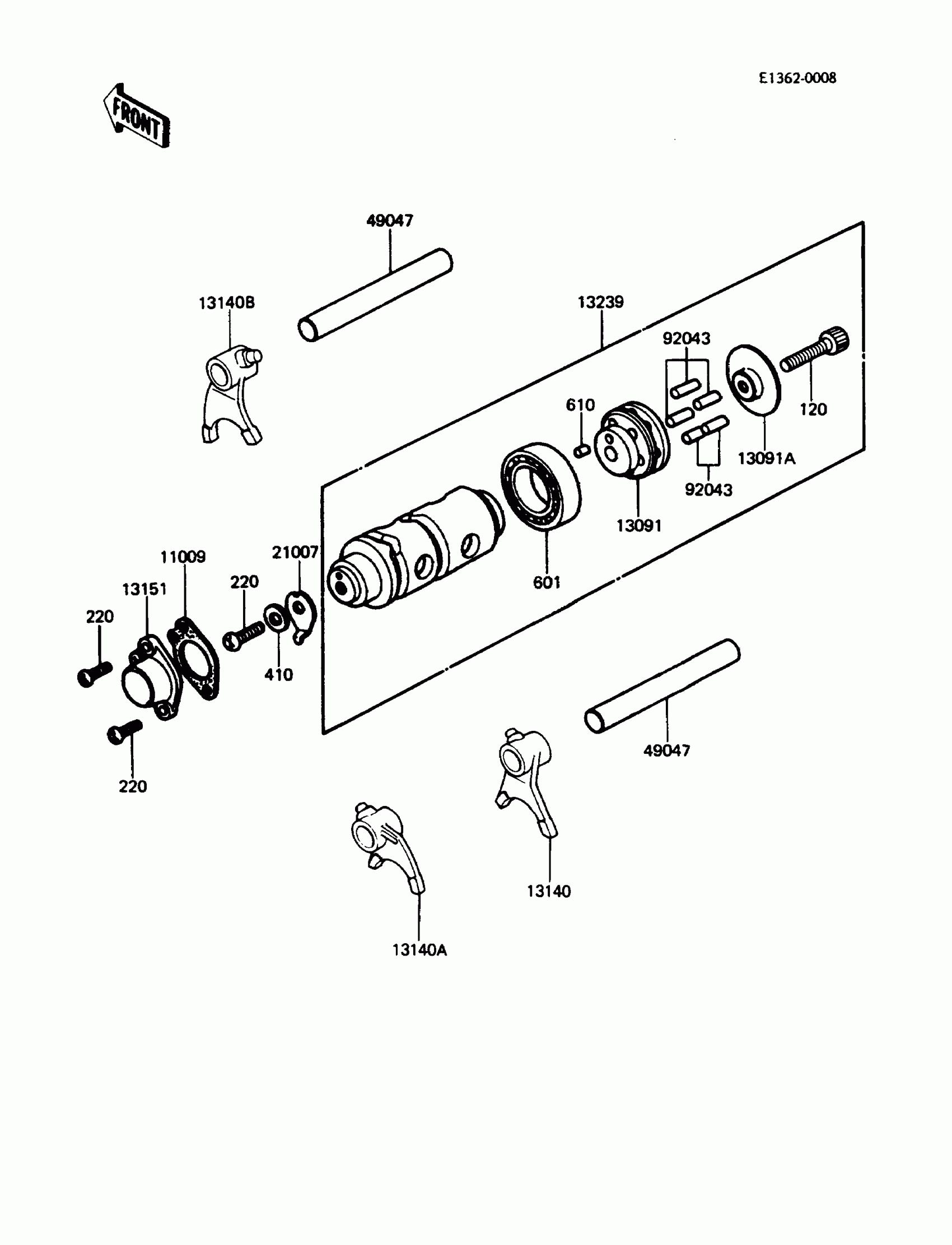

Kawasaki KE100 Change Drum/Shift Fork Diagram

Description

Price

11009

GASKET,NEUTRAL SWITCH

13146-002

$4.35

13091

HOLDER,CHANGE DRUM

13091-1077

$35.90

13091A

HOLDER,CHANGE DRUM PIN

13142-014

$20.79

13140

FORK-SHIFT,LOW&2ND

13140-1026

$82.35

13140A

FORK-SHIFT,3RD

13140-1027

$94.69

13140B

FORK-SHIFT,4TH&TOP

13140-1028

Unavailable

13151

SWITCH-COMP,NEUTRAL

13151-1002

$16.92

13239

DRUM-ASSY-CHANGE

13239-1034

$134.32

21007

ROTOR,TOP & NEUTRAL

21007-1003

$7.62

49047

ROD-SHIFT,10X80

13209-014

Unavailable

92043

PIN,DOWEL,4X14.8

92042-042

$4.39

120

BOLT-SOCKET,6X30

120Q0630

$2.95

220

SCREW-PAN-CROS,6X16

220B0616

$2.84

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

601

BEARING-BALL,#6004C3

601B6004

$12.47

610

ROLLER,4X6

610A0406

$4.31
