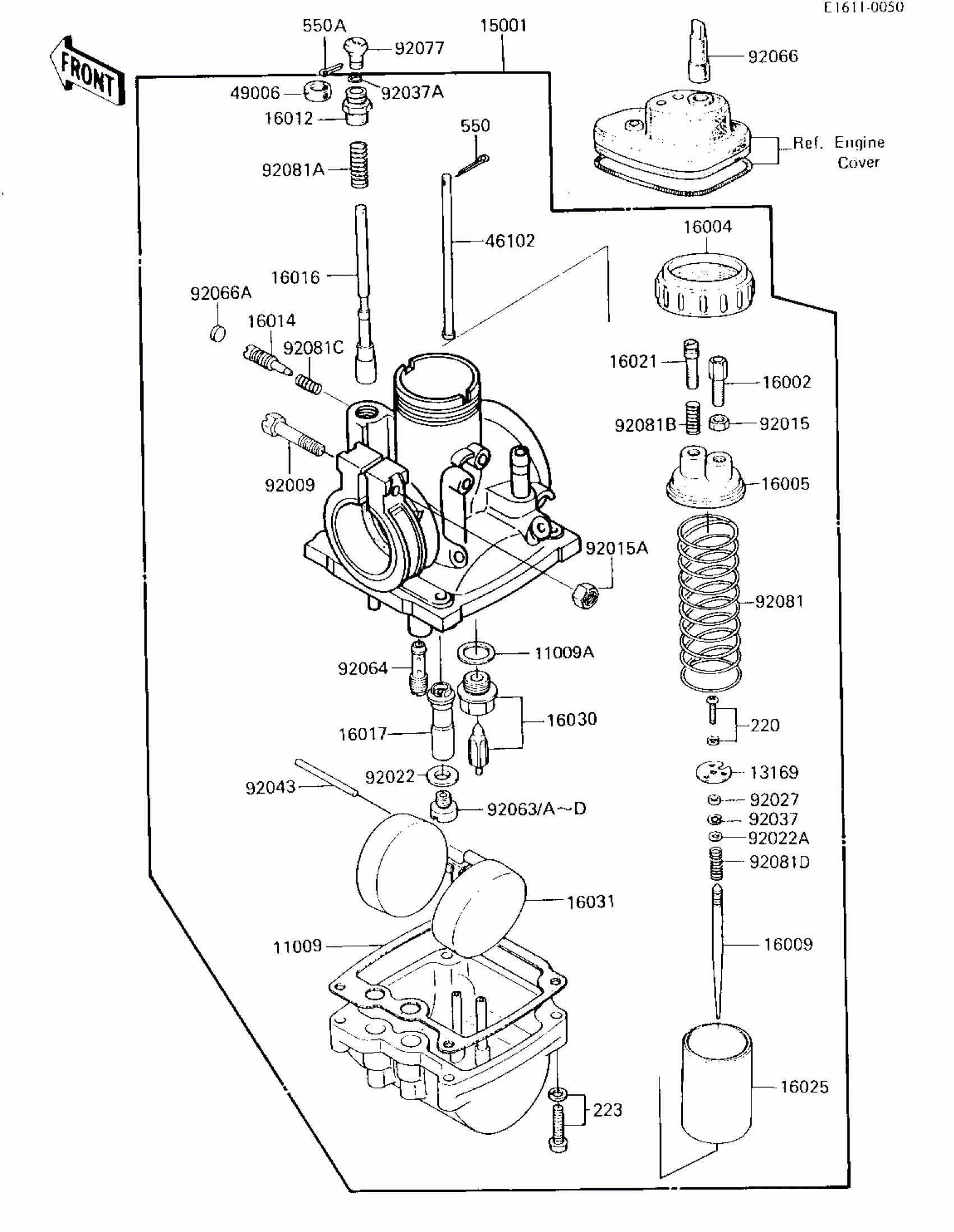

Kawasaki KE100 CARBURETOR (KE100-B5, US) Diagram
#
11009
GASKET,FLOAT CHAMBER
16019-021
$20.79
11009A
GASKET,FLOAT VALVE SEAT
16029-002
$4.46
13169
PLATE,THROTTLE VALVE
13169-1676
$8.98
15001
CARBURETOR-ASSY
15001-1220
$325.27
16002
ADJUSTER-CABLE
16002-017
$13.38
16004
CAP-CHAMBER,MIXING
16004-010
$20.59
16005
CAP-CHAMBER,MIXING
16004-010
$20.59
16009
NEEDLE-JET,4EJ39
16009-1289
$36.44
16012
CAP-STARTER PLUNGER
16012-021
$15.94
16014
SCREW-PILOT AIR
16014-002
$18.22
16016
PLUNGER,STARTER
16016-012
$40.35
16017
JET-NEEDLE,O-1
16017-1299
Unavailable
16021
SCREW-THROTTLE STOP
16021-002
$18.22
16025
VALVE-THROTTLE,CA2.0
16025-1013
$120.79
16030
VALVE-FLOAT,#2.0
16030-001
$56.16
16031
FLOAT
16031-015
$56.16
46102
ROD,THROTTLE VLV STP
16024-012
Unavailable
49006
BOOT,STARTER PLUNGER
16036-012
$11.46
92009
SCREW,CLAMP
16010-004
$5.57
92015
NUT,CABLE ADJUST LOCK
16003-004
$7.34
92015A
NUT,6MM
92015-1026
$6.63
92022
WASHER,MAIN JET
16034-001
$4.31
92022A
WASHER,THROTTLE VALVE
92022-1024
$6.61
92027
COLLAR,THROTTLE VALVE
92027-1103
$7.34
92037
CLAMP,E-TYPE
16008-010
$9.21
92037A
CLAMP
92037-1077
Unavailable
92043
PIN,FLOAT
16032-003
$6.57
92063
JET-MAIN,#A80R
92063-1030
$16.92
92063A
JET-MAIN,#A77.5R
92063-1032
Unavailable
92063B
JET-MAIN,#A75R
92063-1111
Unavailable
92063C
JET-MAIN,#A82,5R
92063-1322
$16.92
92063D
JET-MAIN,#A85R
92063-1323
$16.92
92064
JET-PILOT,#A15
92064-1018
$20.51
92066
PLUG,12X40
16147-001
$5.17
92066A
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
$5.05
92077
KNOB,CARBURETOR
92077-022
$10.64
92081
SPRING,THROTTLE VALVE
16006-013
$15.02
92081A
SPRING,STARTER PLUNGER
16013-010
Unavailable
92081B
SPRING,THROTTLE STOP SCREW
16022-005
$8.68
92081C
SPRING,PILOT AIR SCREW
16022-007
$8.13
92081D
SPRING,JET NEEDLE
92081-1072
$5.54
220
SCREW-PAN-CROS,3X8
220B0308
$0.59
223
SCREW-PAN-WS-CROS
223B0418
$1.76
550
PIN COTTER 1.2X10
550D1210
$2.65
550A
PIN-COTTER,1.6X15
550D1615
$2.51
