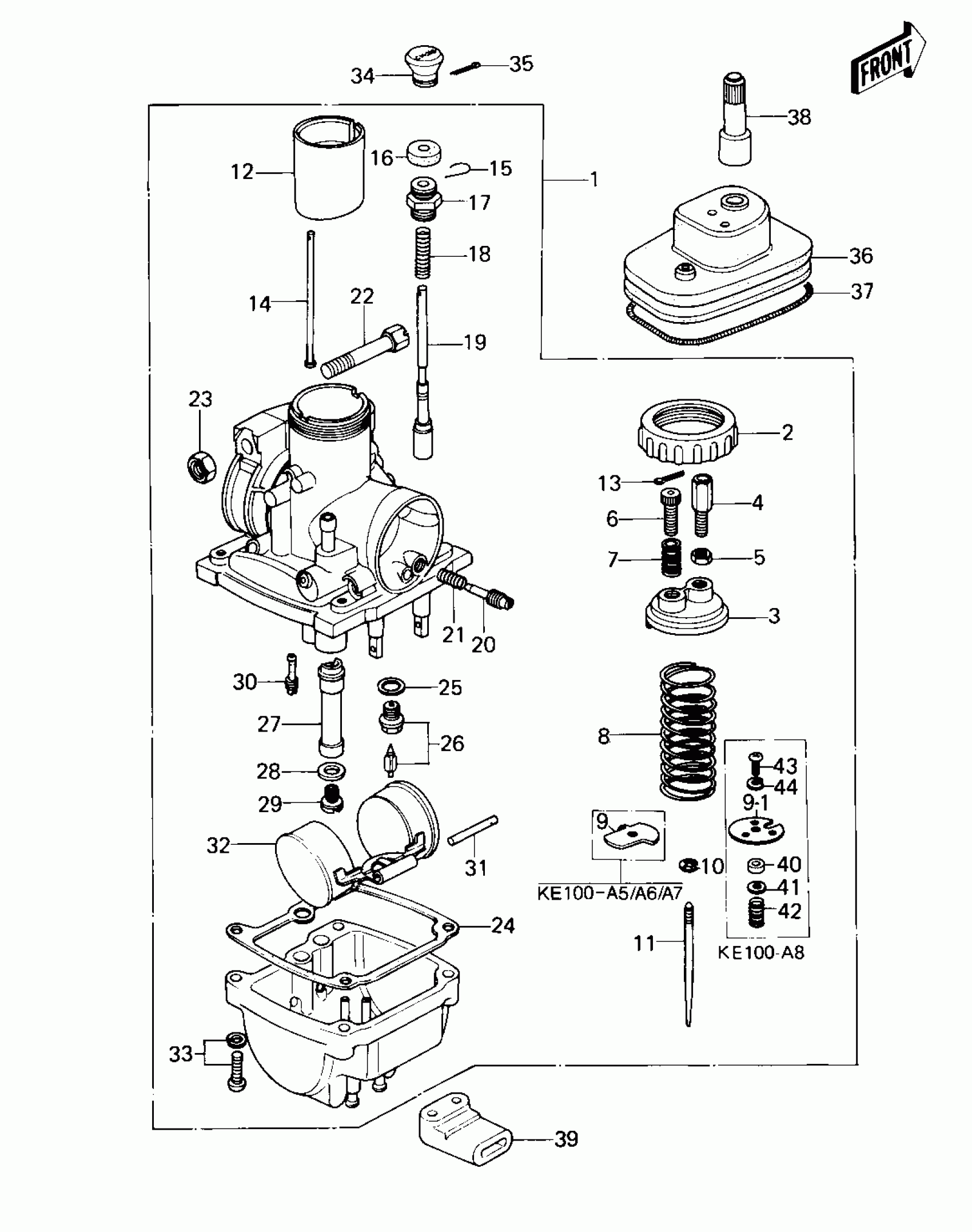

Kawasaki KE100 CARBURETOR (KE100-A5/A6/A7/A8) Diagram
#
1
CARBURETOR ASSY,
16001-230
Unavailable
1
CARBURETOR ASSY
16001-234
Unavailable
1
CARBURETOR ASSY
16001-1042
Unavailable
2
CAP-CHAMBER,MIXING
16004-010
$20.59
3
TOP-CHAMBER,MIXING
16005-005
$20.79
4
ADJUSTER-CABLE
16002-017
$13.38
5
NUT,CABLE ADJUST LOCK
16003-004
$7.34
6
SCREW-THROTTLE STOP
16021-002
$18.22
7
SPRING,THROTTLE STOP SCREW
16022-005
$8.68
8
SPRING,THROTTLE VALVE
16006-013
$15.02
9
SEAT-SPRING,THROTTLE VALVE
16007-020
$10.97
9-1
SPRING SEAT,THROT VLV
13169-1105
Unavailable
10
CLAMP,E-TYPE
16008-010
$9.21
11
NEEDLE-JET,4EJ7
16009-059
$37.51
11
JET NEEDLE,4EJ12
16009-1012
Unavailable
12
VALVE-THROTTLE,CA2.0
16025-057
Unavailable
12
VALVE-THROTTLE,CA2.0
16025-1013
$120.79
13
PIN COTTER 1.2X10
550D1210
$2.65
14
ROD,THROTTLE VLV STP
16024-012
Unavailable
15
CLAMP
92037-1077
Unavailable
15
CLAMP
92037-1077
Unavailable
16
BOOT,STARTER PLUNGER
16036-012
$11.46
17
CAP-STARTER PLUNGER
16012-021
$15.94
18
SPRING,STARTER PLUNGER
16013-010
Unavailable
19
PLUNGER,STARTER
16016-012
$40.35
20
SCREW-PILOT AIR
16014-002
$18.22
21
SPRING,PILOT AIR SCREW
16022-007
$8.13
22
SCREW,CLAMP
16010-004
$5.57
23
NUT 6MM
311B0600
$0.93
23
NUT,6MM
92015-1026
$6.63
24
GASKET,FLOAT CHAMBER
16019-021
$20.79
25
GASKET,FLOAT VALVE SEAT
16029-002
$4.46
26
VALVE-FLOAT,#2.0
16030-001
$56.16
27
NEEDLE JET O-Z
16017-068
$55.22
27
NEEDLE JET, 0-2
16017-1031
Unavailable
28
WASHER,MAIN JET
16034-001
$4.31
29
JET-MAIN,#75R
92063-109
Unavailable
29
JET-MAIN,#A77.5R
92063-1032
Unavailable
29
MAIN JET,#70R
92063-1012
Unavailable
29
MAIN JET NO 72.5R
92063-108
Unavailable
29
JET-MAIN,#A80R
92063-1030
Unavailable
30
JET-PILOT,#17.5
92064-020
Unavailable
30
JET-PILOT,#A15
92064-1018
$20.51
30
JET-PILOT,#A15
92064-1018
$20.51
31
PIN,FLOAT
16032-003
$6.57
32
FLOAT
16031-015
$56.16
33
SCREW-FLOAT CHAMBER
16033-012
$1.88
34
KNOB,CARBURETOR
92077-022
$10.64
35
PIN-COTTER,1.6X15
550D1615
$2.51
36
BOOT,CARBURETOR
14038-035
Unavailable
37
SPRING COIL
92081-047
$11.29
38
PLUG,12X40
16147-001
$5.17
39
GROMMET,OVERFLOW PIPE
16136-007
Unavailable
40
COLLAR,THROTTLE VALVE
92027-1103
$7.34
41
WASHER,THROTTLE VALVE
92022-1024
$6.61
42
SPRING,JET NEEDLE
92081-1072
$5.54
43
SCREW-PAN-CROS,3X8
220B0308
$0.59
44
WASHER SPRING 3MM
461F0300
$0.46
