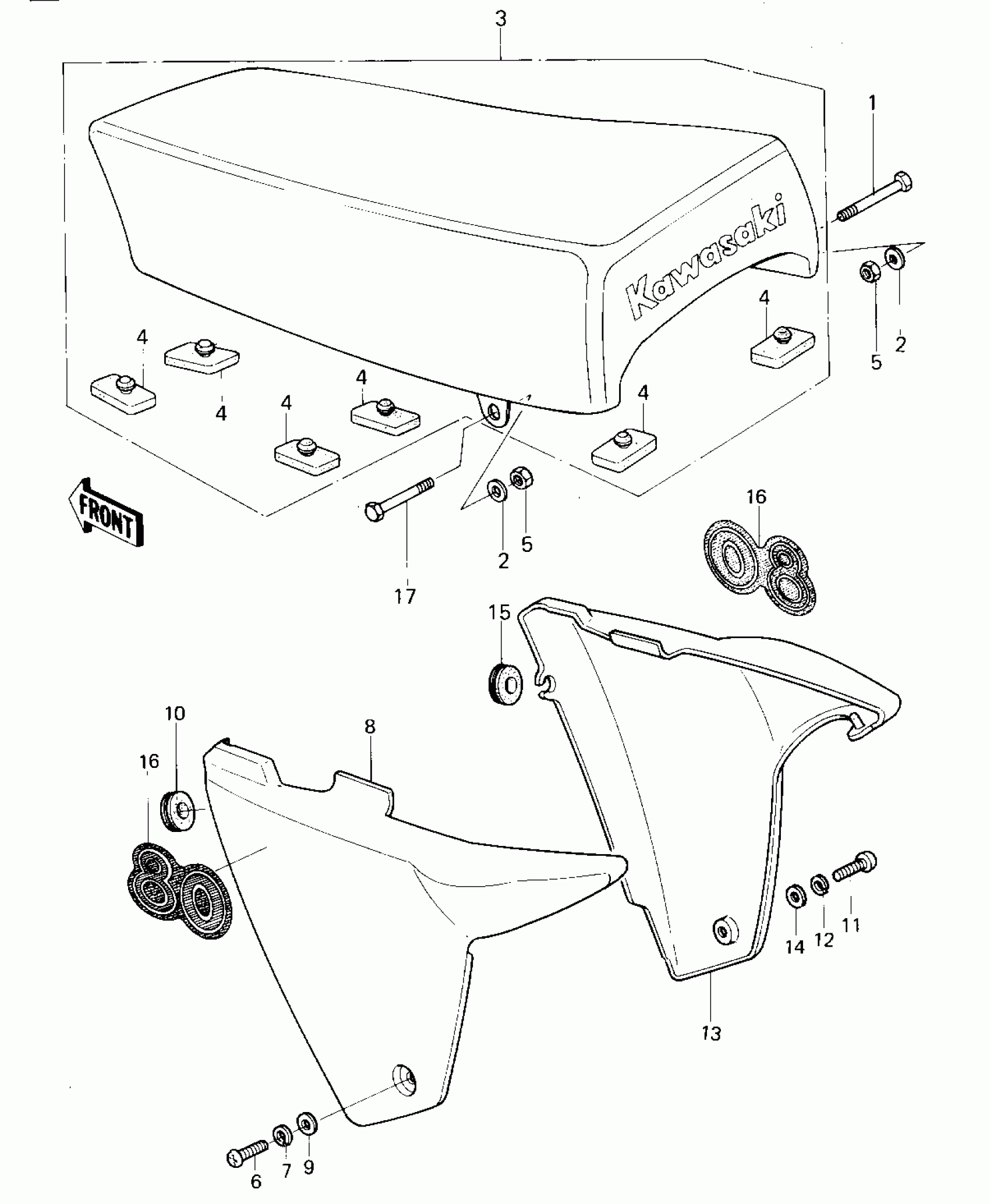

Kawasaki KDX80 SEAT/SIDE COVERS Diagram

#

Description

Price

1

BOLT-UPSET

112G0645

Unavailable

2

WASHER PLAIN 6MM

411B0600

Unavailable

3

SEAT-ASSY

53001-1110

Unavailable

3

SEAT-ASSY

53001-1110

Unavailable

4

DAMPER

92075-1054

Unavailable

5

NUT,LOCK,6MM

92019-008

Unavailable

6

SCREW-PAN-CROS,6X20,WHITE

220B0620

Unavailable

7

WASHER SPRING 6MM

461F0600

Unavailable

8

COVER,SIDE,L.H.GREEN

36001-1078-6W

Unavailable

9

WASHER PLAIN

92022-024

Unavailable

10

DAMPER

92075-1067

Unavailable

11

SCREW-PAN-CROS,6X20,WHITE

220B0620

Unavailable

12

WASHER SPRING 6MM

461F0600

Unavailable

13

COVER,SIDE,R.H.GREEN

36001-1079-6W

Unavailable

14

WASHER PLAIN

92022-024

Unavailable

15

DAMPER

92075-1067

Unavailable

16

MARK,SIDE COVER

56018-1138

Unavailable

17

BOLT-UPSET,6X40

112G0640

Unavailable
