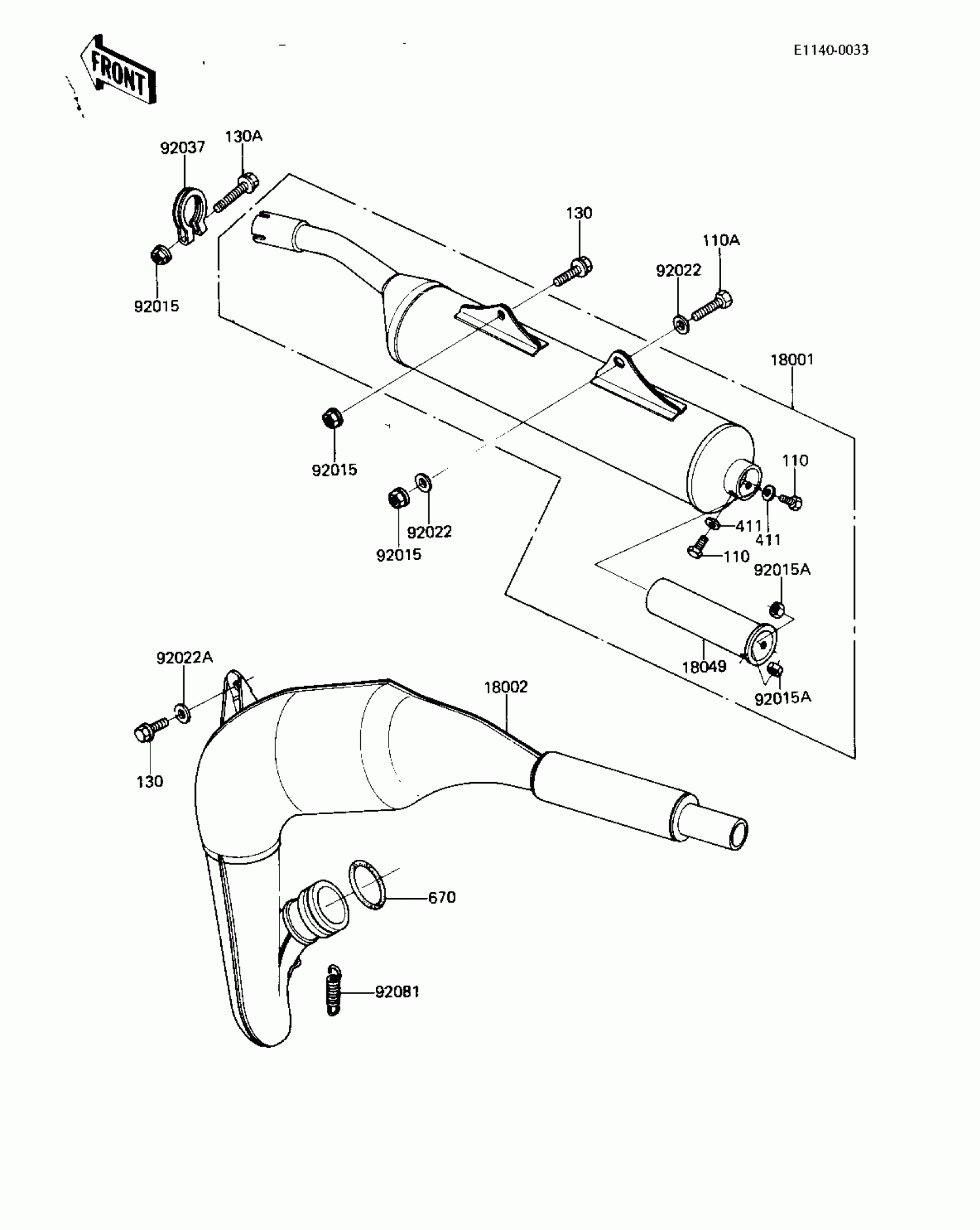

Kawasaki KDX80 MUFFLER Diagram

Description

Price

18001

MUFFLER

18001-1232

$186.93

18002

BODY-COMP-MUFFLER

18002-1178

$376.89

18049

PIPE,EXHAUST

18049-1101

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,LOCK,6MM

92019-008

$4.26

92022

WASHER PLAIN

92022-024

$3.65

92022A

WASHER,6.5X20X1.6

92022-125

$1.40

92037

CLAMP

92037-1150

Unavailable

92081

SPRING-CONNECTOR

18071-003

$11.49

110

BOLT,6X10

112G0610

$0.58

110A

BOLT-UPSET,6X16

112G0616

$1.10

130

BOLT-FLANGED,6X12

130G0612

$1.69

130A

BOLT-FLANGED,6X30

130G0630

$1.42

411

WASHER PLAIN 6MM

411B0600

$2.84

670

"0" RING,36MM

670B3036

$1.03
