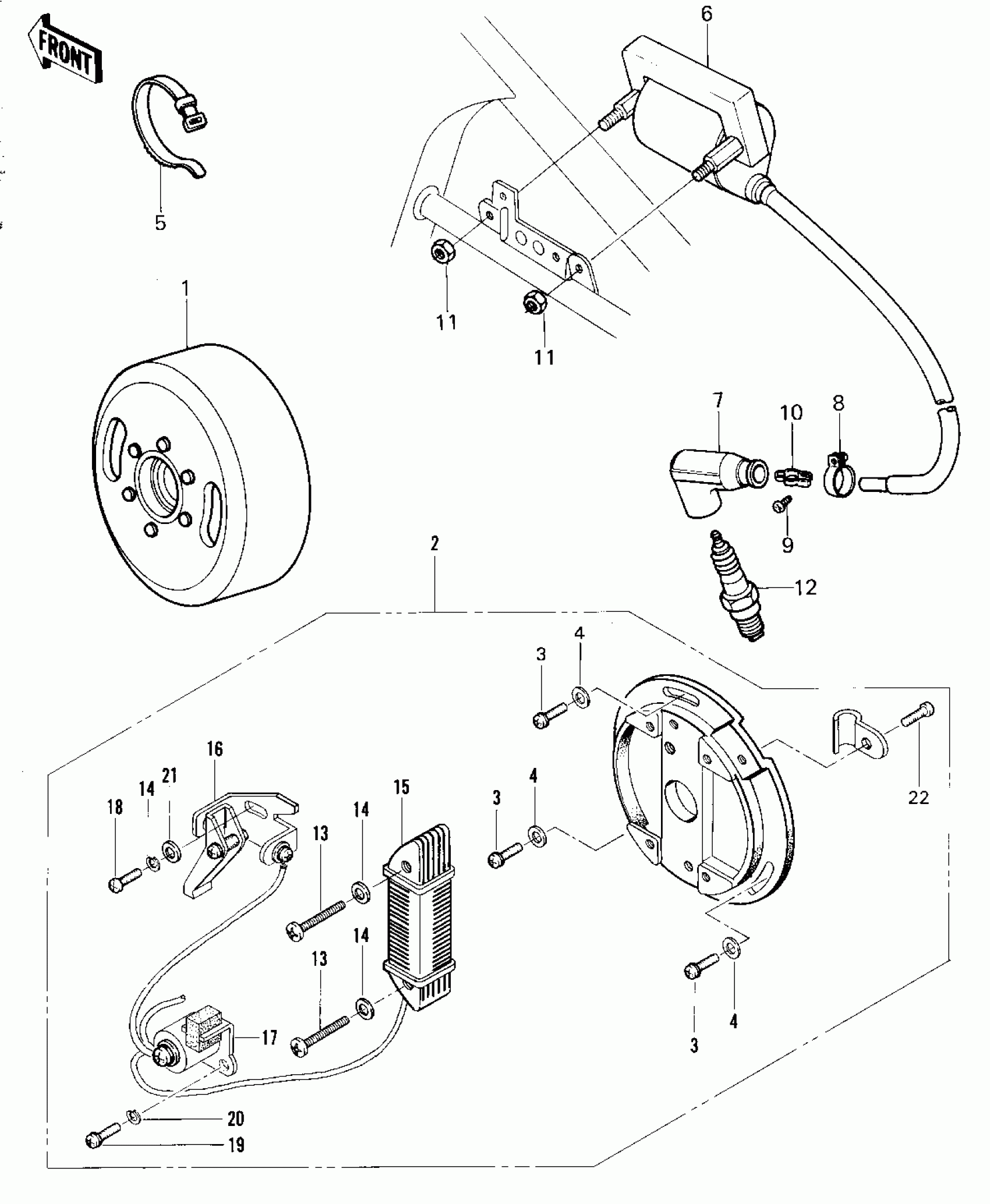

Kawasaki KDX80 IGNITION Diagram

#

Description

Price

1

BOLT-UPSET

112G0645

Unavailable

1

FLYWHEEL,MAGNETO

21007-1019

Unavailable

2

STATOR ASSY,MAGNETO

21003-1028

Unavailable

3

SCREW-PAN-CROS

220B0514

Unavailable

4

WASHER PLAIN 5MM

410B0500

Unavailable

5

BAND,L=123

92072-030

Unavailable

6

COIL,IGNITION

21121-1033

Unavailable

7

CAP-SPARK PLUG

21130-1006

Unavailable

7

CAP-SPARK PLUG

21130-1006

Unavailable

8

CLAMP

92037-1173

Unavailable

8

CLAMP

92037-1173

Unavailable

9

SCREW-PAN-CROS

220B0310

Unavailable

10

TERMINAL,PLUG CAP

21169-001

Unavailable

11

NUT 6MM

311B0600

Unavailable

12

SPARK PLUG B8ES

B8ES

Unavailable

13

SCREW-PAN-CROS,4X18

220B0418

Unavailable

14

WASHER SPRING 4MM

461F0400

Unavailable

15

COIL,EXCITING

21049-1009

Unavailable

16

BREAKER,CONTACT

21008-1016

Unavailable

17

CONDENCER

21013-1006

Unavailable

18

SCREW PAN HEAD 4X10

220B0410

Unavailable

19

SCREW PAN HEAD 5X8

220B0508

Unavailable

20

WASHER SPRING 5MM

461F0500

Unavailable

21

WASHER PLAIN 4MM

410B0400

Unavailable

22

SCREW PAN HEAD 4X6

220B0406

Unavailable
