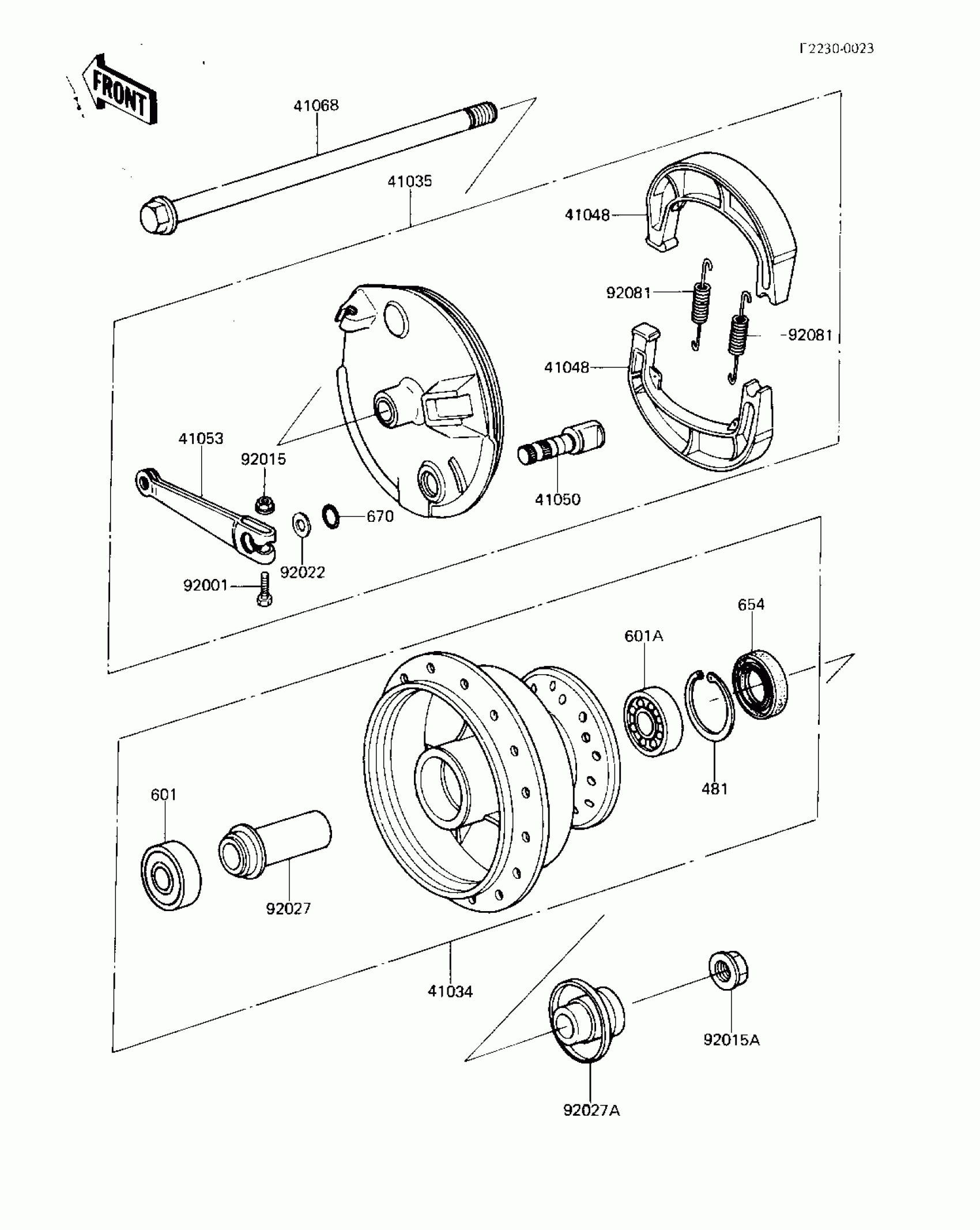

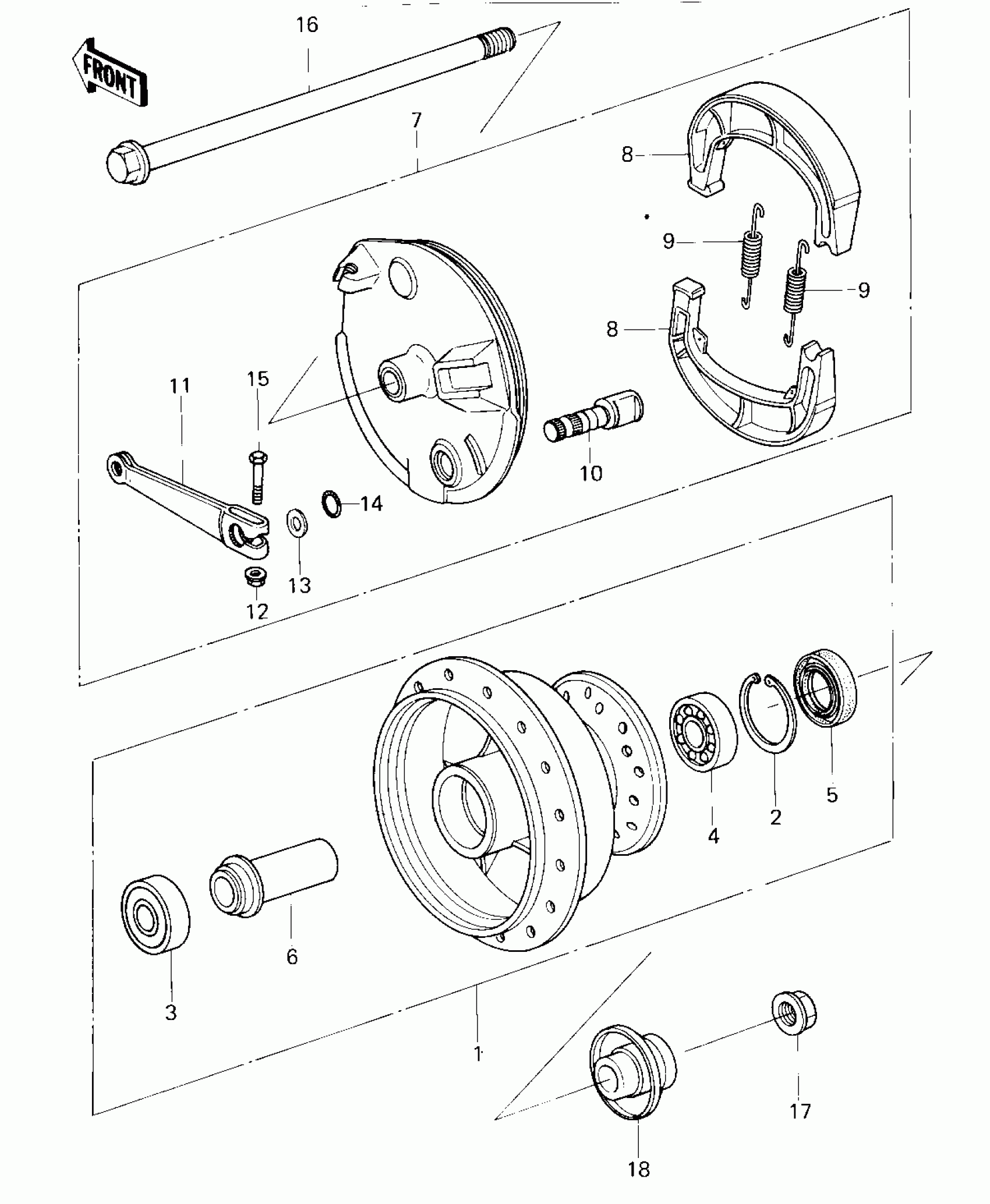

Kawasaki KDX80 FRONT HUB/BRAKE Diagram

Description

Price

41034

DRUM-ASSY,FR BRK

41034-1022

$160.46

41035

PANEL-ASY,FR BRK

41035-1033

$159.45

41048

SHOE,BRAKE

41048-1021

$29.61

41050

CAM,BRAKE,FRONT

41050-1009

Unavailable

41053

LEVER,BRAKE CAM,FRONT

41053-1011

Unavailable

41068

AXLE,FRONT

41068-1011

Unavailable

92001

BOLT,HEX HEAD,6X30

92001-1135

Unavailable

92015

NUT,6MM

41072-007

$3.92

92015A

NUT,FLANGED,10MM

92015-1415

$4.69

92022

WASHER

92022-257

Unavailable

92027

COLLAR,FRONT BRAKE

92027-1093

$11.06

92027A

COLLAR,FRONT AXLE

92027-1094

Unavailable

92081

SPRING,BRAKE SHOE

92081-1766

$8.03

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.96

601

UNAVAILABLE IN PRICE BOOK

601B62000

Unavailable

601A

BEARING,BALL,#6300

601B6300

$13.82

654

OIL SEAL,20X35X7

654A203507

$11.40

670

O RING,12MM

670B2012

$3.23
