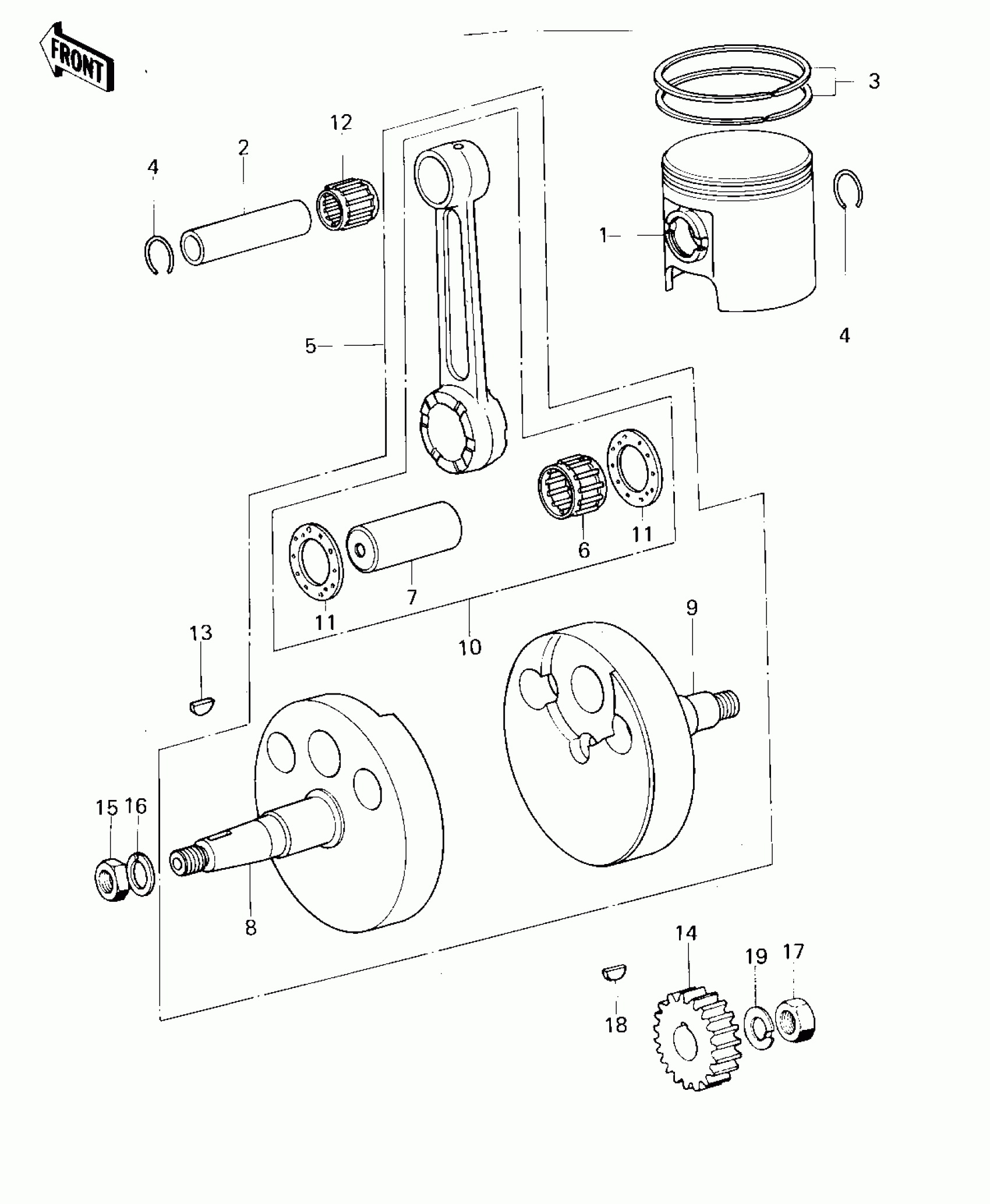

Kawasaki KDX80 CRANKSHAFT/PISTON Diagram

#

Description

Price

1

PISTON-ENGINE

13001-1082

Unavailable

2

PIN-PISTON

13002-1009

Unavailable

3

RING SET,PISTON,STD

13008-5011

Unavailable

4

RING-SNAP,PISTON PIN

92036-003

Unavailable

5

CRANKSHAFT ASSY

13031-1027

Unavailable

6

BEARING,NEEDLE

13034-1015

Unavailable

7

PIN-CRANK

13035-1002

Unavailable

8

CRANKSHAFT,L.H.

13037-1053

Unavailable

9

CRANKSHAFT,R.H.

13037-1054

Unavailable

10

CONNECTING ROD SET

13044-5014

Unavailable

11

SHIM,20X34.5X1.0

92025-005

Unavailable

12

BEARING-NEEDLE,KTV141817

13033-030

Unavailable

13

KEY-WOODRUFF

510A3200

Unavailable

14

GEAR,PRIMARY

13097-1021

Unavailable

15

NUT,10M/M

314G1000

Unavailable

16

WASHER SPRING 10MM

461F1000

Unavailable

17

NUT,12MM

92015-006

Unavailable

18

KEY,WOODRUFF

92038-003

Unavailable

19

WASHER,CLAW,12.5X25X0.8

92024-003

Unavailable
