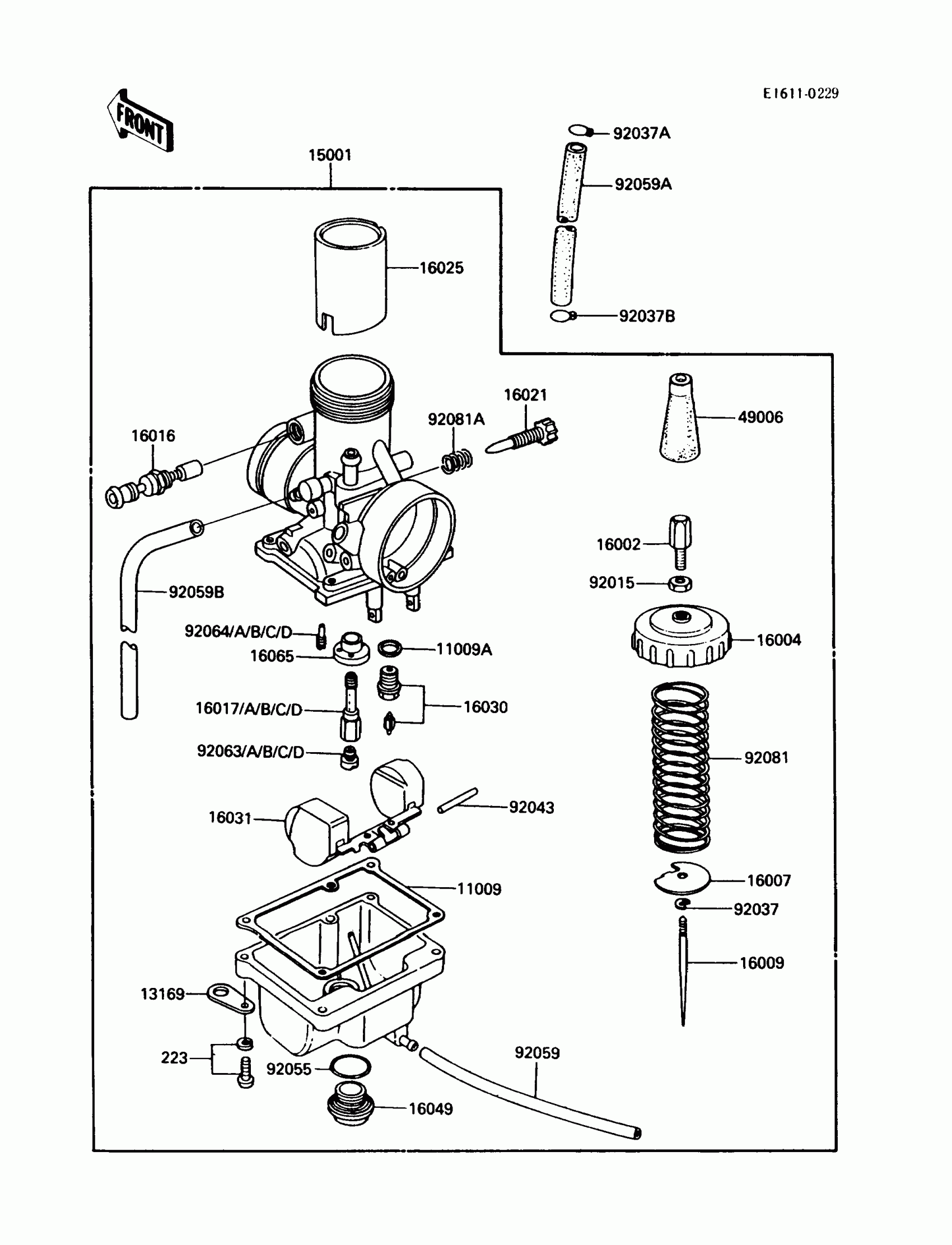

Kawasaki KDX80 Carburetor(KDX80-C1/C2/C3) Diagram
#
11009
GASKET,FLOAT CHAMBER
11009-1147
$10.19
11009A
WASHER FLOAT VLV SEAT
16029-004
$3.89
13169
PLATE,TUBE CLAMP
13169-1226
Unavailable
15001
CARBURETOR
16001-1926
Unavailable
16002
ADJUSTER-CABLE
16002-017
$13.38
16004
CAP-CHAMBER
16004-025
$33.28
16007
SEAT-SPRING,THROTTLE VALVE
16007-023
$10.19
16009
NEEDLE-JET,5I14
16009-1220
$39.28
16016
PLUNGER,STARTER
16016-1052
$43.32
16017
JET-NEEDLE,O-6
16017-1228
Unavailable
16017A
JET-NEEDLE,P-0
16017-1229
$40.33
16017B
JET-NEEDLE,O-8
16017-1230
$40.33
16017C
JET-NEEDLE,O-4
16017-1231
$43.70
16017D
JET-NEEDLE,O-2
16017-1232
$43.70
16021
SCREW-THROTTLE STOP
16021-1104
$18.83
16025
VALVE-THROTTLE,CA2.0
16025-1107
$108.45
16030
VALVE-FLOAT,#2.6
16030-1004
Unavailable
16031
FLOAT
16031-1005
$53.59
16049
COVER-MAIN JET
16049-1001
$26.99
16065
HOLDER,JET NEEDLE
16065-1020
$18.54
49006
BOOT,CABLE ADJUSTER
16036-007
$17.80
92015
NUT,ADJUST LOCK
16003-006
$7.34
92037
CLAMP,E-TYPE
16008-010
$9.21
92037A
CLAMP,TUBE
92037-147
$7.34
92037B
CLAMP
92037-1712
$5.00
92043
PIN,FLOAT
16032-003
$6.57
92055
RING-O,MAIN JET COVER
92055-1061
$8.58
92059
TUBE,3X5X300
92059-1018
$9.24
92059A
TUBE,5.3X10.5X150
92059-1129
$21.98
92059B
TUBE,3X5X320
92059-1430
Unavailable
92063
JET-MAIN,#190
92063-021
$14.10
92063A
JET-MAIN,#200
92063-022
$14.10
92063B
JET-MAIN,#210
92063-023
$14.10
92063C
JET-MAIN,#220
92063-024
$16.50
92063D
JET-MAIN,#230
92063-025
$16.09
92064
JET-PILOT,#35
92064-1023
$19.96
92064A
JET-PILOT,#30
92064-1030
$19.96
92064B
JET-PILOT,#25
92064-1038
$19.96
92064C
JET-PILOT,#45
92064-1060
$10.34
92064D
JET-PILOT,#40
92064-1104
$19.96
92081
SPRING,THROTTLE VALVE
16006-023
$15.02
92081A
SPRING,THROTTLE STOP SCREW
16022-005
$8.68
223
SCREW-PAN-WS-CROS
223B0416
$0.67
