Description

Price

13127

SHAFT,INPUT,12T

13127-1046

Unavailable

13128

OUTPUT SHAFT

13128-1029

Unavailable

13129

GEAR,INPUT 2ND&3RD

13129-1599

Unavailable

13129A

GEAR,4TH

13129-1226

Unavailable

13129B

GEAR,5TH

13129-1227

Unavailable

13129C

GEAR,TOP

13129-1228

Unavailable

13129D

GEAR,LOW

13129-1229

Unavailable

13129E

GEAR,2ND

13129-1230

Unavailable

13129F

GEAR,4TH

13129-1232

Unavailable

13129G

GEAR,OUTPUT 57H,20T

13129-1352

Unavailable

13129H

GEAR,OUTPUT TOP

13129-5002

Unavailable

13129I

GEAR,OUTPUT 3RD

13129-5001

Unavailable

13144

ENGINE SPROCKET,14T

13144-1006

Unavailable

92022

WASHER,TOOTHED,25.3X30X1

92022-1072

Unavailable

92022A

WASHER,20.5X30X1,STEEL

92022-112

$8.86

92022B

WASHER,25.3X30X0.5

92022-159

$8.58

92022C

WASHER,22.3X27X0.5

92022-198

$5.52

92022D

WASHER,PLAIN

92022-281

Unavailable

92022E

WASHER,TOOTHED,22.5X31X0.5

92024-038

$6.22

92022F

WASHER,TOOTHED,22.5X27X0.5

92024-039

$6.27

92027

COLLAR-ENG SPROKET

92027-163

Unavailable

92028

BUSHING,OUTPUT GEAR

92028-1268

$28.88

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92033A

RING-SNAP,24MM

92033-026

$8.79

92033B

RING-SNAP,18MM

92033-029

$9.82

92033C

RING-SNAP

92033-032

$4.96

92046

BEARING-NEEDLE

92046-1184

$21.25

92046A

BEARING-NEEDLE,KT202614

92046-1170

$18.16

92055

RING-O

92055-035

$5.00

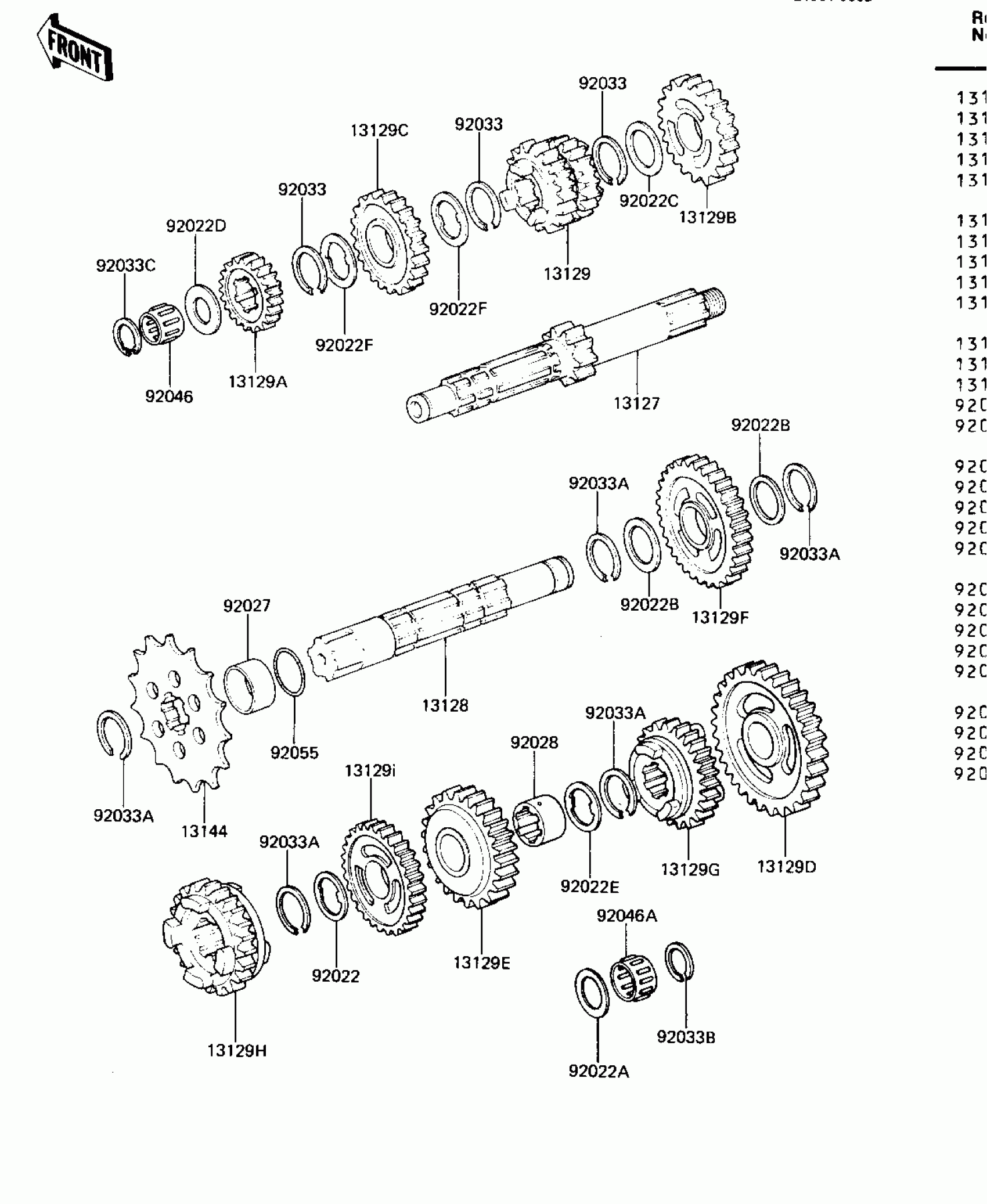

Kawasaki KDX250 TRANSMISSION ('82 KDX250-B2) Diagram

SHAFT,INPUT,12T

OUTPUT SHAFT

GEAR,INPUT 2ND&3RD

GEAR,4TH

GEAR,5TH

GEAR,TOP

GEAR,LOW

GEAR,2ND

GEAR,4TH

GEAR,OUTPUT 57H,20T

GEAR,OUTPUT TOP

GEAR,OUTPUT 3RD

ENGINE SPROCKET,14T

WASHER,TOOTHED,25.3X30X1

WASHER,20.5X30X1,STEEL

WASHER,25.3X30X0.5

WASHER,22.3X27X0.5

WASHER,PLAIN

WASHER,TOOTHED,22.5X31X0.5

WASHER,TOOTHED,22.5X27X0.5

COLLAR-ENG SPROKET

BUSHING,OUTPUT GEAR

RING-SNAP,20X25.5X1.2

RING-SNAP,24MM

RING-SNAP,18MM

RING-SNAP

BEARING-NEEDLE

BEARING-NEEDLE,KT202614

RING-O
