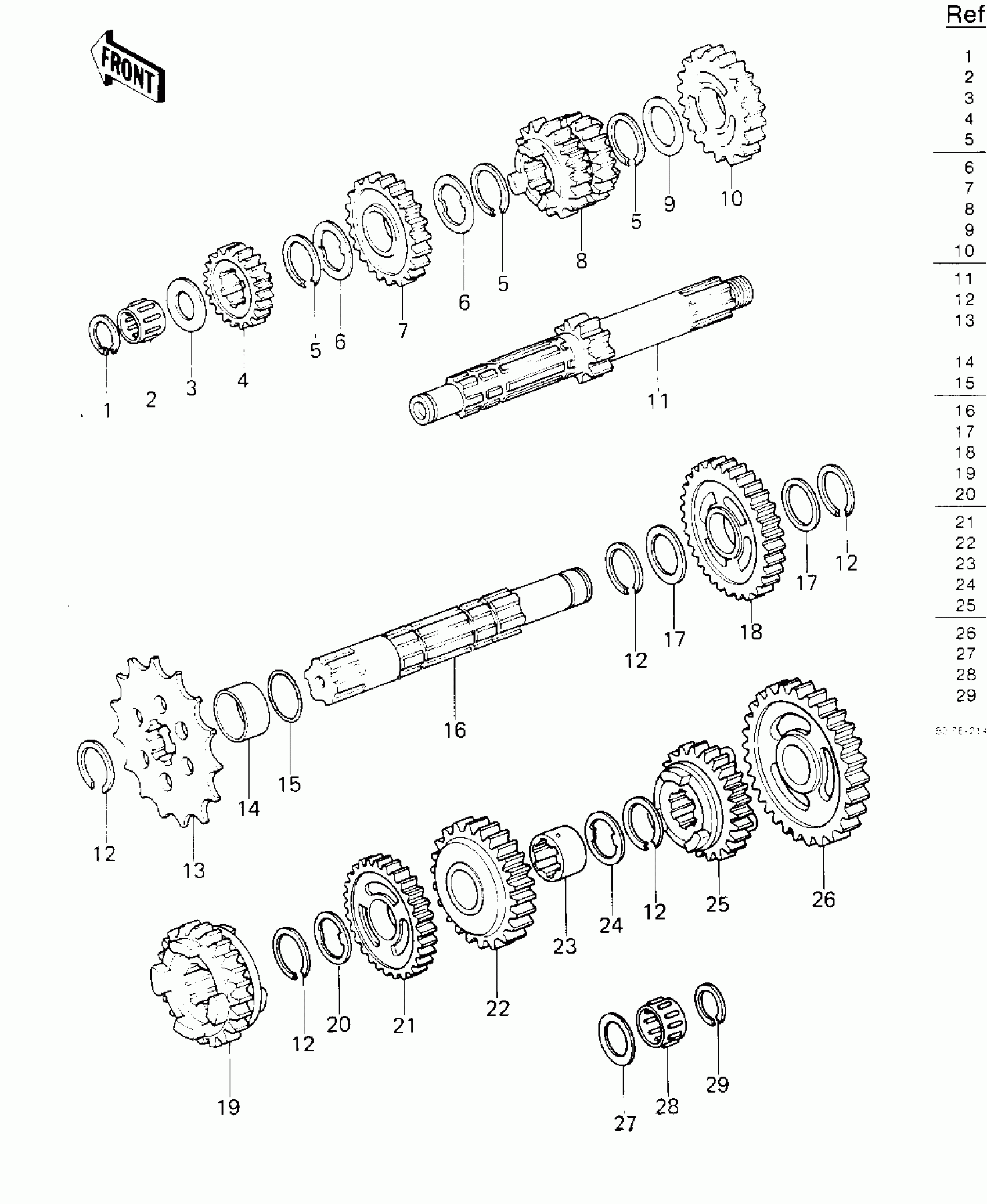

Kawasaki KDX250 TRANSMISSION ('81KDX250-B1) Diagram

#

Description
Price

1

RING-SNAP

92033-032

$4.96

2

BEARING-NEEDLE

92046-1184

$21.25

3

WASHER,PLAIN

92022-281

Unavailable

4

GEAR,4TH

13129-1226

Unavailable

5

RING-SNAP,20X25.5X1.2

92033-025

$4.96

6

WASHER,TOOTHED,22.5X27X0.5

92024-039

$6.27

7

GEAR,TOP

13129-1228

Unavailable

8

GEAR,INPUT 2ND&3RD

13129-1599

Unavailable

9

WASHER,22.3X27X0.5

92022-198

$5.52

10

GEAR,5TH

13129-1227

Unavailable

11

GEAR,LOW

13127-1033

Unavailable

12

RING-SNAP,24MM

92033-026

$8.79

13

ENGINE SPROCKET 13T

13144-055

Unavailable

13

ENGINE SPROCKET,14T

13144-1006

Unavailable

14

COLLAR-ENG SPROKET

92027-163

Unavailable

15

RING-O

92055-035

$5.00

16

OUTPUT SHAFT

13128-1029

Unavailable

17

WASHER,25.3X30X0.5

92022-159

$8.58

18

GEAR,4TH

13129-1232

Unavailable

19

TOP GEAR,OUTPUT SHAFT

13129-1234

Unavailable

20

WASHER,TOOTHED,25.3X30X1

92022-1072

Unavailable

21

GEAR,3RD

13129-1231

Unavailable

22

GEAR,2ND

13129-1230

Unavailable

23

BUSHING,OUTPUT GEAR

92028-1268

$28.88

24

WASHER,TOOTHED,22.5X31X0.5

92024-038

$6.22

25

GEAR,OUTPUT 57H,20T

13129-1352

Unavailable

26

GEAR,LOW

13129-1229

Unavailable

27

WASHER,20.5X30X1,STEEL

92022-112

$8.86

28

BEARING-NEEDLE,KT202614

92046-1170

$18.16

29

RING-SNAP,18MM

92033-029

$9.82
