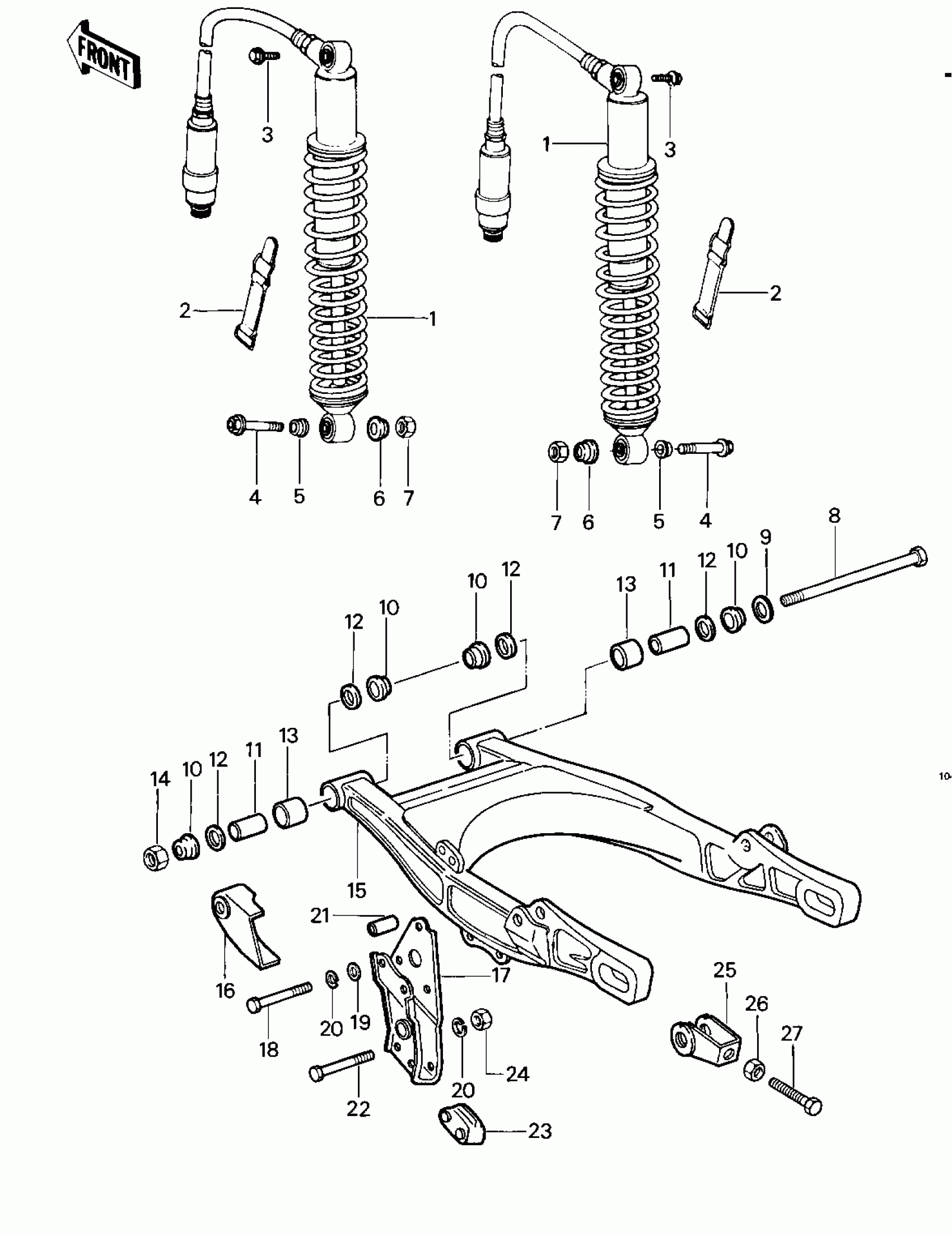

Kawasaki KDX250 SWING ARM/SHOCK ABSORBERS Diagram
#
Description
Price
1
SHOCK ABSBR RR
45014-4004
$846.72
2
BAND,FUEL TANK
92072-076
Unavailable
3
BOLT,FLANGED,6X10
92001-1034
$10.28
4
BOLT,HEX HEAD,10X48
92001-1029
Unavailable
5
COLLAR
92027-1029
$6.76
6
COLLAR
92027-1030
$4.03
7
NUT,LOCK,10MM
92019-021
$6.11
8
SHAFT,SWING ARM
33032-4001
$78.66
9
WASHER PLAIN 14MM
411B1400
$3.93
10
CAP,SWING ARM
11012-1099
$29.79
11
SLEEVE,SWING ARM
42036-4002
$87.33
12
SHIM,SWING ARM
92025-1116
Unavailable
13
BUSHING,SWING ARM
92028-4001
Unavailable
14
NUT-LOCK,14MM
92019-011
Unavailable
15
SWING ARM
33001-4001
$377.09
16
GUIDE,CHAIN
12053-1047
Unavailable
17
CHAIN GUIDE
55020-4001
Unavailable
18
BOLT-UPSET
112G0660
Unavailable
19
WASHER PLAIN 6MM
411B0600
$2.84
20
WASHER SPRING 6MM
461F0600
$0.69
21
COLLAR
92027-4003
$3.95
22
BOLT 6X35
110R0635
Unavailable
23
GUIDE,CHAIN,REAR
12053-1011
Unavailable
24
NUT 6MM
311B0600
$0.93
25
ADJUSTER,CHAIN
33040-4001
$26.77
26
NUT-HEX-SMALL,8MM
318G0800
Unavailable
27
BOLT,CHAIN ADJUSTER
92001-1027
Unavailable
