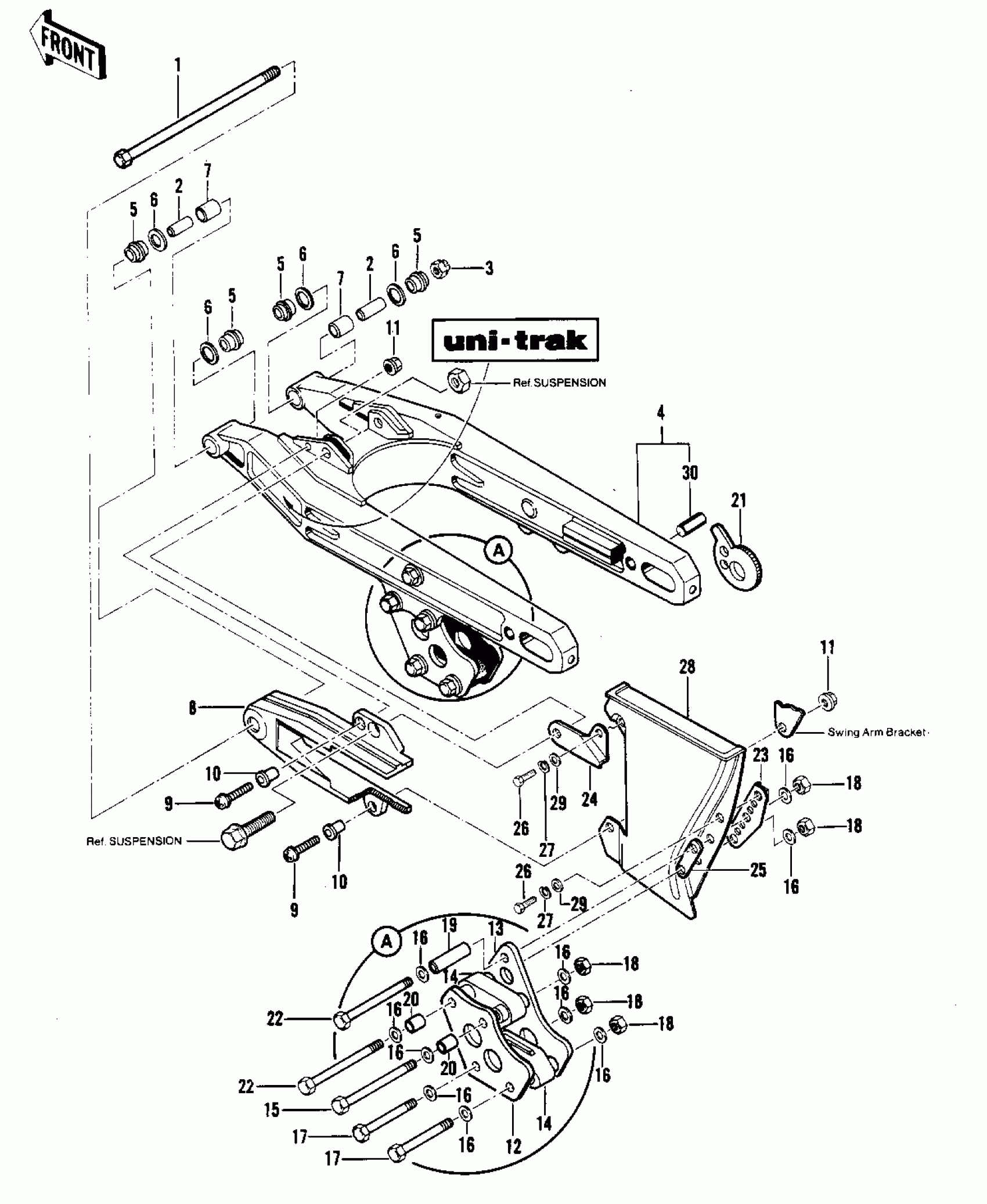

Kawasaki KDX250 SWING ARM/CHAIN COVER Diagram

#

Description
Price

1

SHAFT-SWING ARM

33032-1020

$119.20

2

SLEEVE,SWING ARM

42036-1031

Unavailable

3

NUT-LOCK,14MM

92019-011

Unavailable

4

SWING ARM

33001-1002

$229.47

5

CAP,SWING ARM

11012-1099

$29.79

6

SHIM,SWING ARM

92025-1116

Unavailable

7

BUSHING

92028-1072

Unavailable

8

GUIDE,CHAIN

12053-4001

Unavailable

9

SCREW,6X20

92009-1289

$4.31

10

COLLAR,L=5.1

92027-1260

$6.22

11

NUT,FLANGED,6MM

92015-1078

Unavailable

12

GUARD,CHAIN

55020-4009

$59.76

13

GUARD,CHAIN

55020-4010

$57.89

14

GUIDE,CHAIN

12053-1015

Unavailable

15

BOLT-UPSET

112G0660

Unavailable

16

WASHER PLAIN 6MM

411B0600

$2.84

17

BOLT-UPSET

112G0645

$0.48

18

NUT,LOCK,6MM

92019-008

$4.26

19

COLLAR

92027-4016

$4.19

20

COLLAR

92027-4017

$1.89

21

ADJUSTER-CHAIN

33040-1060

$30.37

22

BOLT,6X70

110G0670

Unavailable

23

BRACKET,CHAIN CASE,F

11034-1841

Unavailable

24

BRACKET,CHAIN CASE

11034-4076

Unavailable

25

BRACKET,CHAIN CASE

11034-4077

Unavailable

26

BOLT-UPSET 6X14

112B0614

Unavailable

27

WASHER SPRING 6MM

461F0600

$0.69

28

CASE-CHAIN

36014-4005

Unavailable

29

WASHER,6.5X20X1.6

92022-125

$1.40

30

PIN,DOWEL,8X25

551A0825

$0.81
