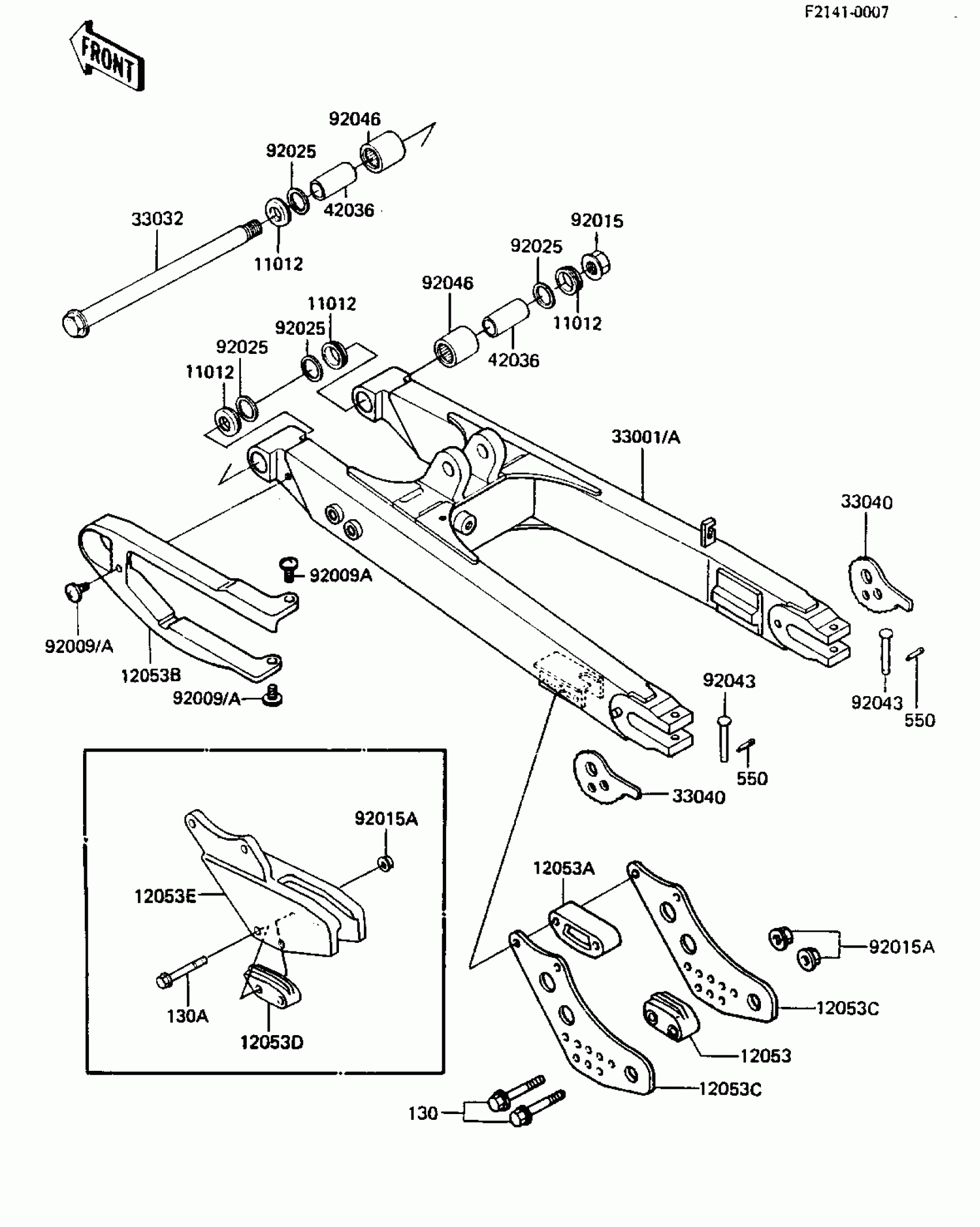

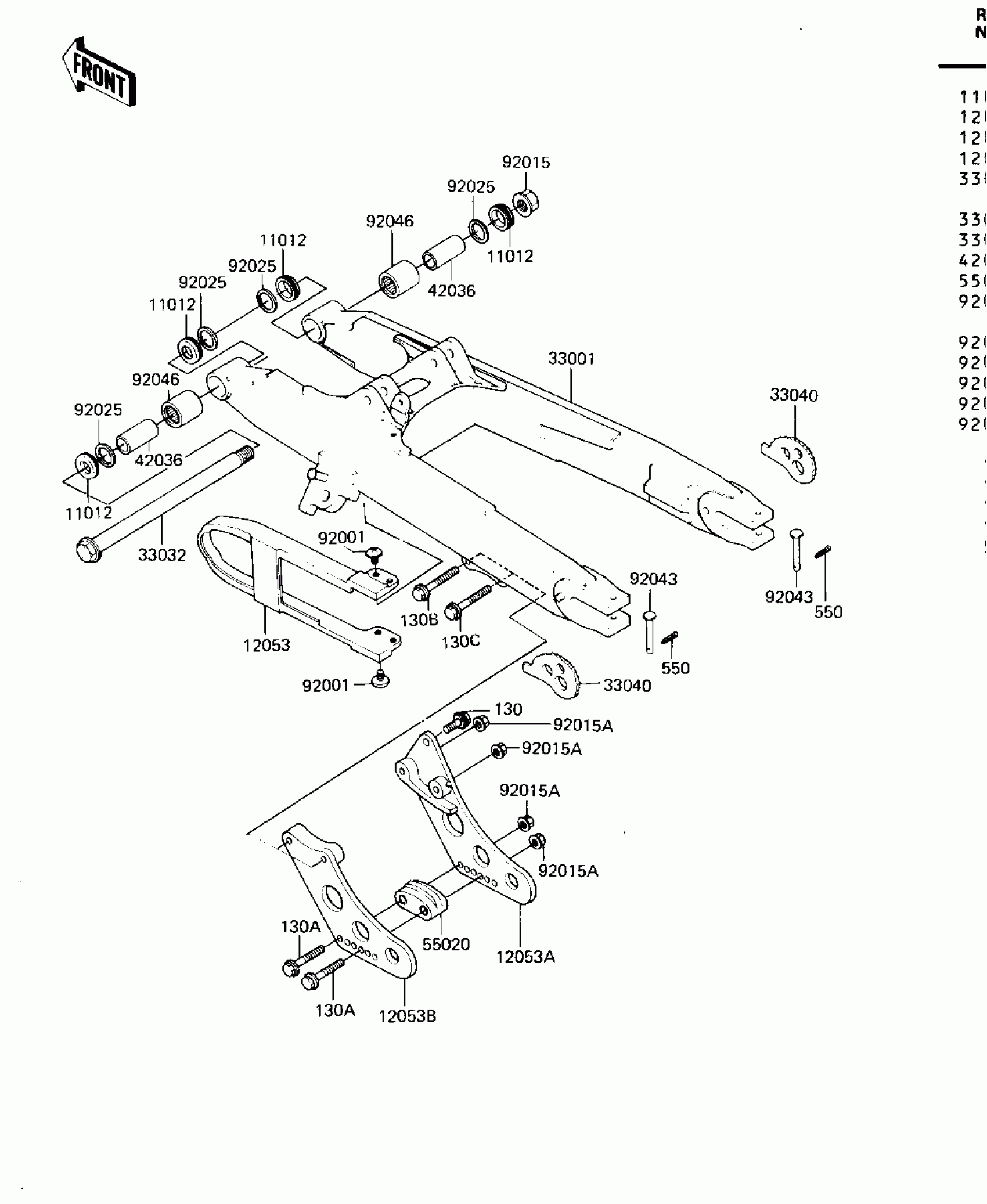

Kawasaki KDX250 SWING ARM Diagram

Description

Price

11012

CAP

11012-1207

Unavailable

12053D

GUIDE-CHAIN,RR,INSIDE

12053-1105

Unavailable

12053E

GUIDE-CHAIN,RR

12053-1124

Unavailable

33001A

ARM-COMP-SWING

33001-1208

$579.06

33032

SHAFT-SWING ARM

33032-1042

Unavailable

33040

ADJUSTER-CHAIN

33040-1060

$30.37

42036

SLEEVE,SWING ARM

42036-1056

Unavailable

92009A

SCREW,6X14,WHITE

92009-1287

$2.55

92015

NUT,14MM

92015-1407

$9.91

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92025

SHIM,SWING ARM

92025-1116

Unavailable

92043

PIN,6X44.5

92043-1110

$5.11

92046

BRG,NEEDLE,HMK2030

92046-1031

Unavailable

130A

BOLT-FLANGED,6X40

130G0640

$1.17

550

PIN COTTER 2.0X15

550D2015

$1.04
