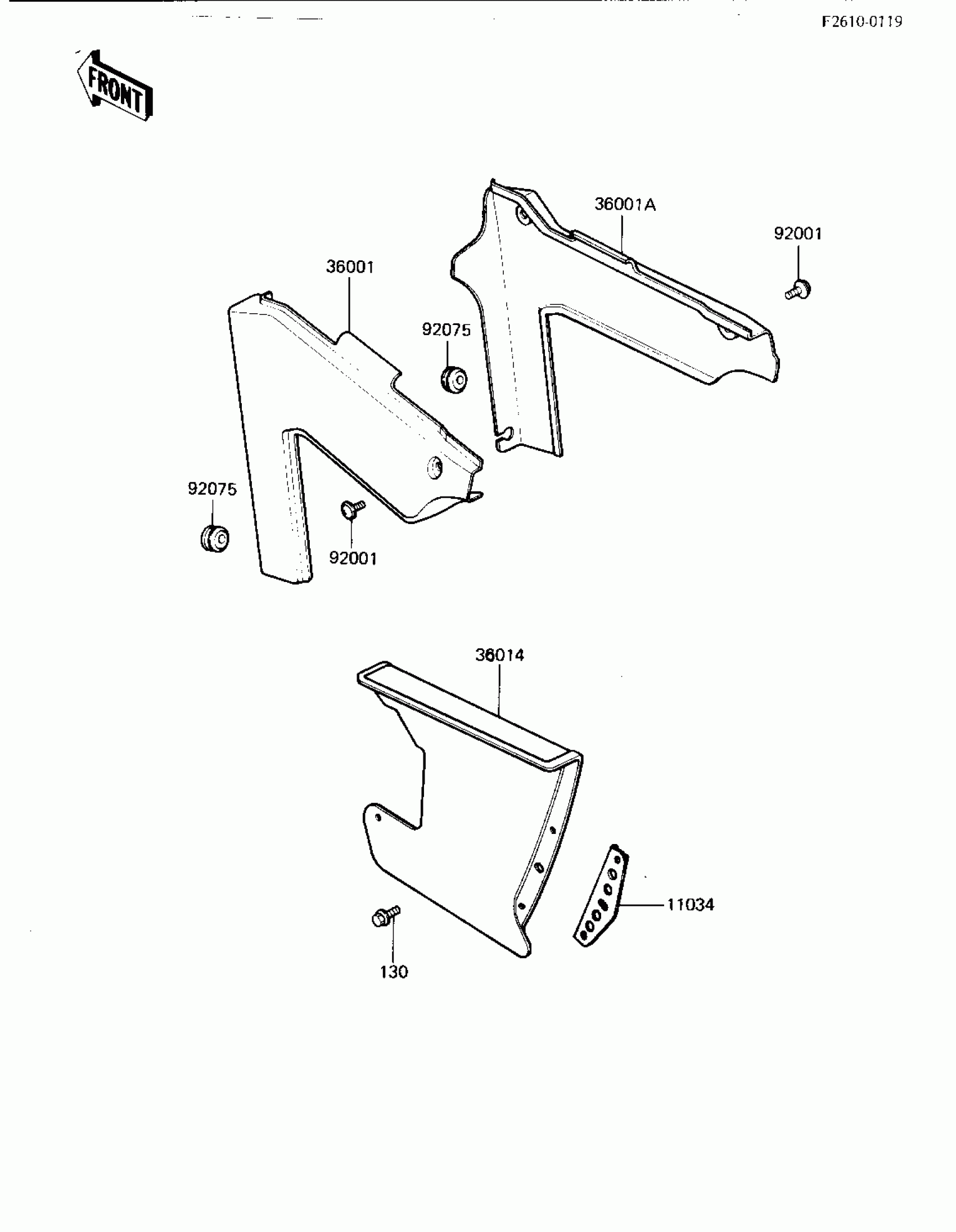

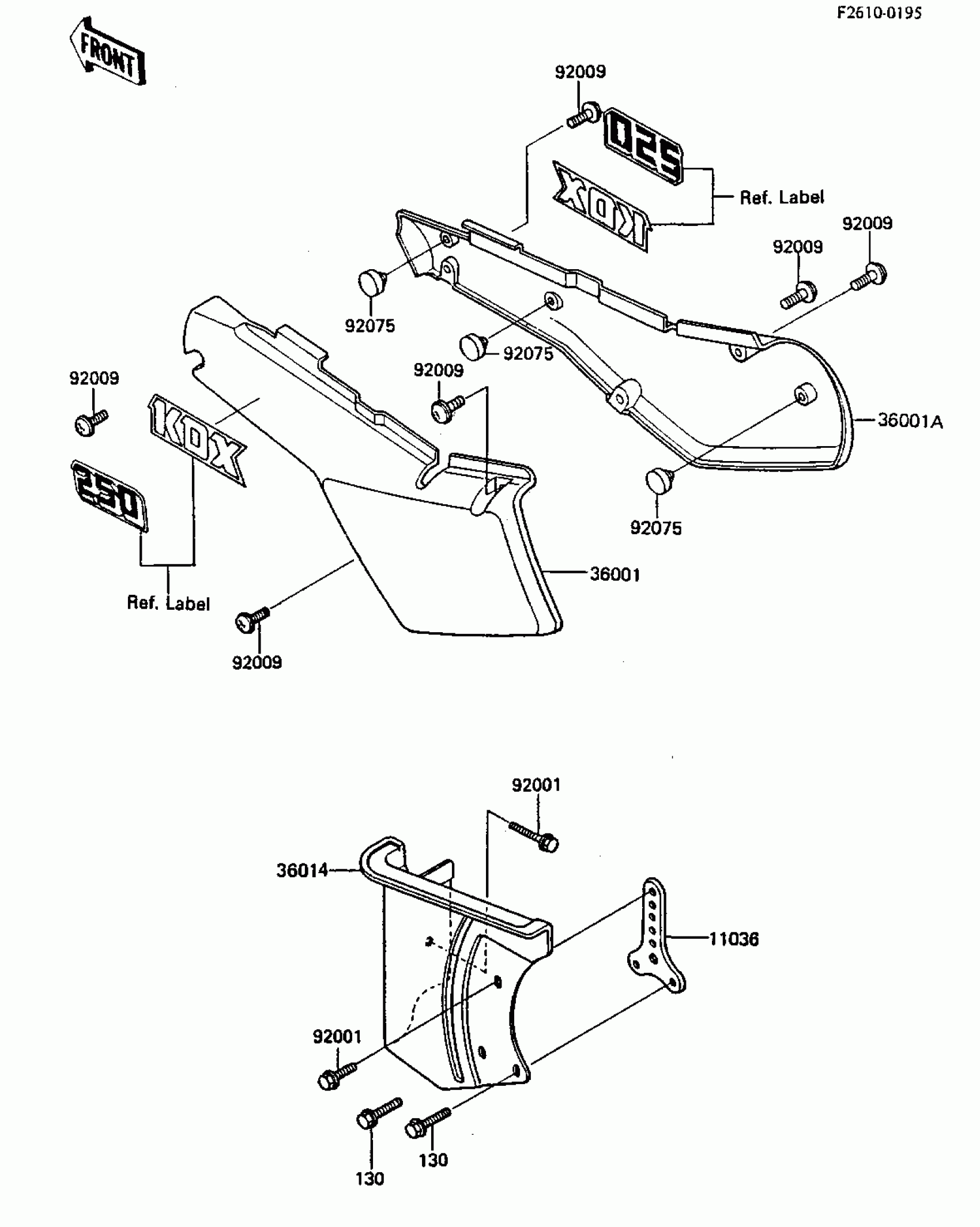

Kawasaki KDX250 SIDE COVERS/CHAIN COVER Diagram

#

Description

Price

11036

BRACKET-A,CHAIN CASE

11036-1743

Unavailable

36001

COVER-SIDE,LH,L.GREEN

36001-1177-AC

Unavailable

36001A

COVER-SIDE,RH,L.GREEN

36001-1178-AC

Unavailable

36014

CASE-CHAIN

36014-1117

$71.15

92001

BOLT,6X16

92002-1136

Unavailable

92009

SCREW,6X10,WHITE

92009-1286

$4.31

92075

DAMPER

92075-1598

$8.58

130

BOLT-FLANGED,6X45

130G0645

$0.93
