Description

Price

1

AXLE,REAR

41068-4002

$160.99

2

O RING,15MM

670B2015

$1.42

3

PANEL-ASY,RR BRK

41035-1047

$304.29

4

BOLT-UPSET

112G0622

$3.48

5

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

6

LEVER BRAKE CAM

41053-1022

Unavailable

7

CAME-BRAKE

41050-1018

$25.69

8

SHOE-BRAKE

41048-1018

$37.39

9

SPRING,BRAKE SHOE

42020-004

$8.51

10

DRUM-ASSY,RR BRK

41034-1019

$488.13

11

BEARING-BALL,6204UUC3

601B6204UU

$29.98

12

COLLAR,REAR BRAKE

92027-1207

$45.82

13

BEARING-BALL,#6003UC3

601B6003U

$22.40

14

CIRCLIP-TYPE-C,35MM

481J3500

$1.96

15

COLLAR

92027-4013

Unavailable

16

NUT,16MM

92015-1015

Unavailable

17

BOLT,FLANGED,8X36

92001-1041

$9.86

18

REAR SPROCKET,50T STD

42041-1006

Unavailable

18

REAR SPROCKET,48T

42041-1022

Unavailable

18

REAR,SPROCKET,52T

42041-1008

Unavailable

19

DR CHAIN 520X116

92057-1028

$288.43

20

CHAIN JOINT 520

92058-1002

$10.92

21

NUT,8MM

92015-1134

$8.15

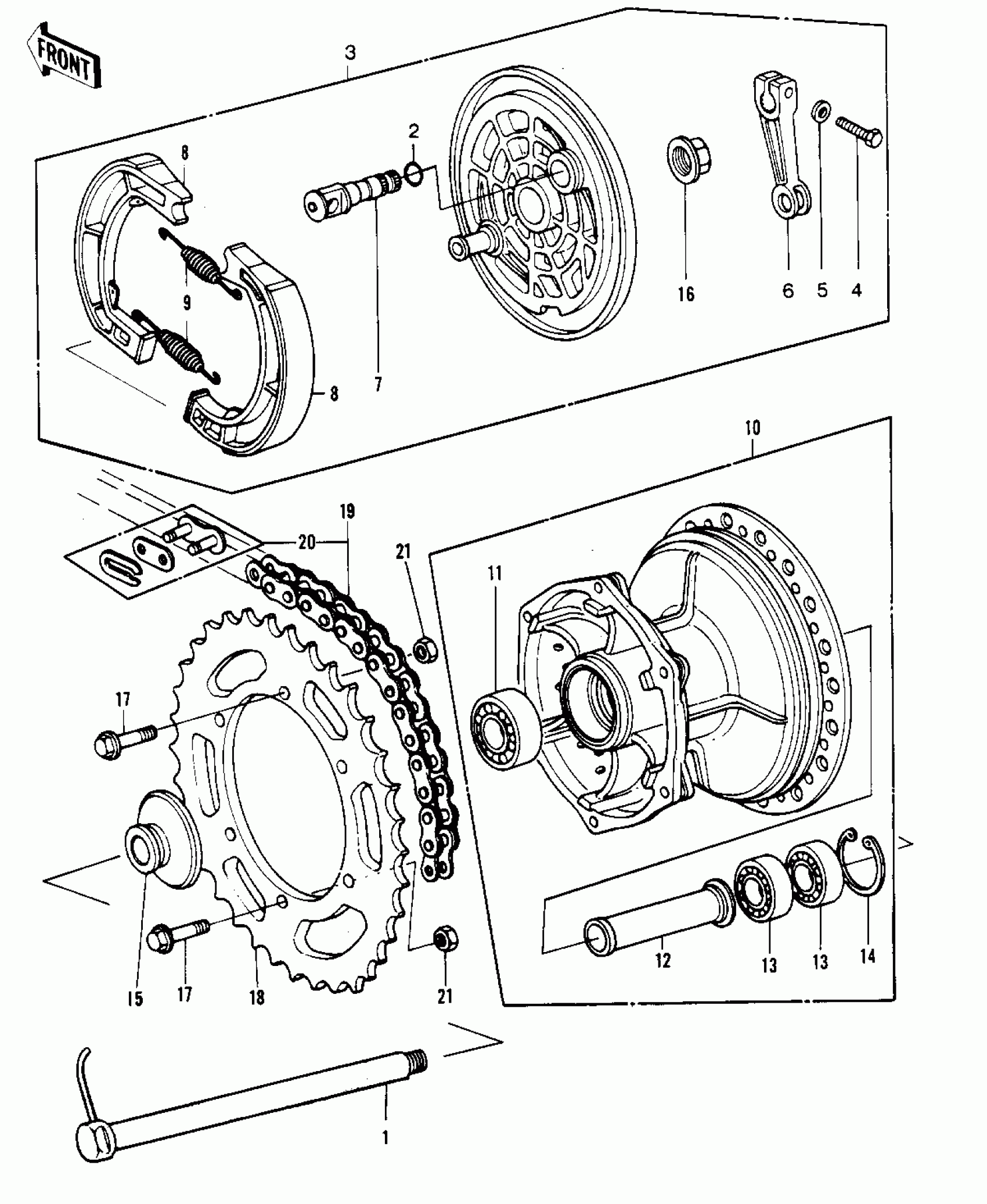

Kawasaki KDX250 REAR HUB/BRAKE/CHAIN ('81KDX250-B1) Diagram

AXLE,REAR

O RING,15MM

PANEL-ASY,RR BRK

BOLT-UPSET

WASHER-PLAIN-SMALL,6MM

LEVER BRAKE CAM

CAME-BRAKE

SHOE-BRAKE

SPRING,BRAKE SHOE

DRUM-ASSY,RR BRK

BEARING-BALL,6204UUC3

COLLAR,REAR BRAKE

BEARING-BALL,#6003UC3

CIRCLIP-TYPE-C,35MM

COLLAR

NUT,16MM

BOLT,FLANGED,8X36

REAR SPROCKET,50T STD

REAR SPROCKET,48T

REAR,SPROCKET,52T

DR CHAIN 520X116

CHAIN JOINT 520

NUT,8MM
