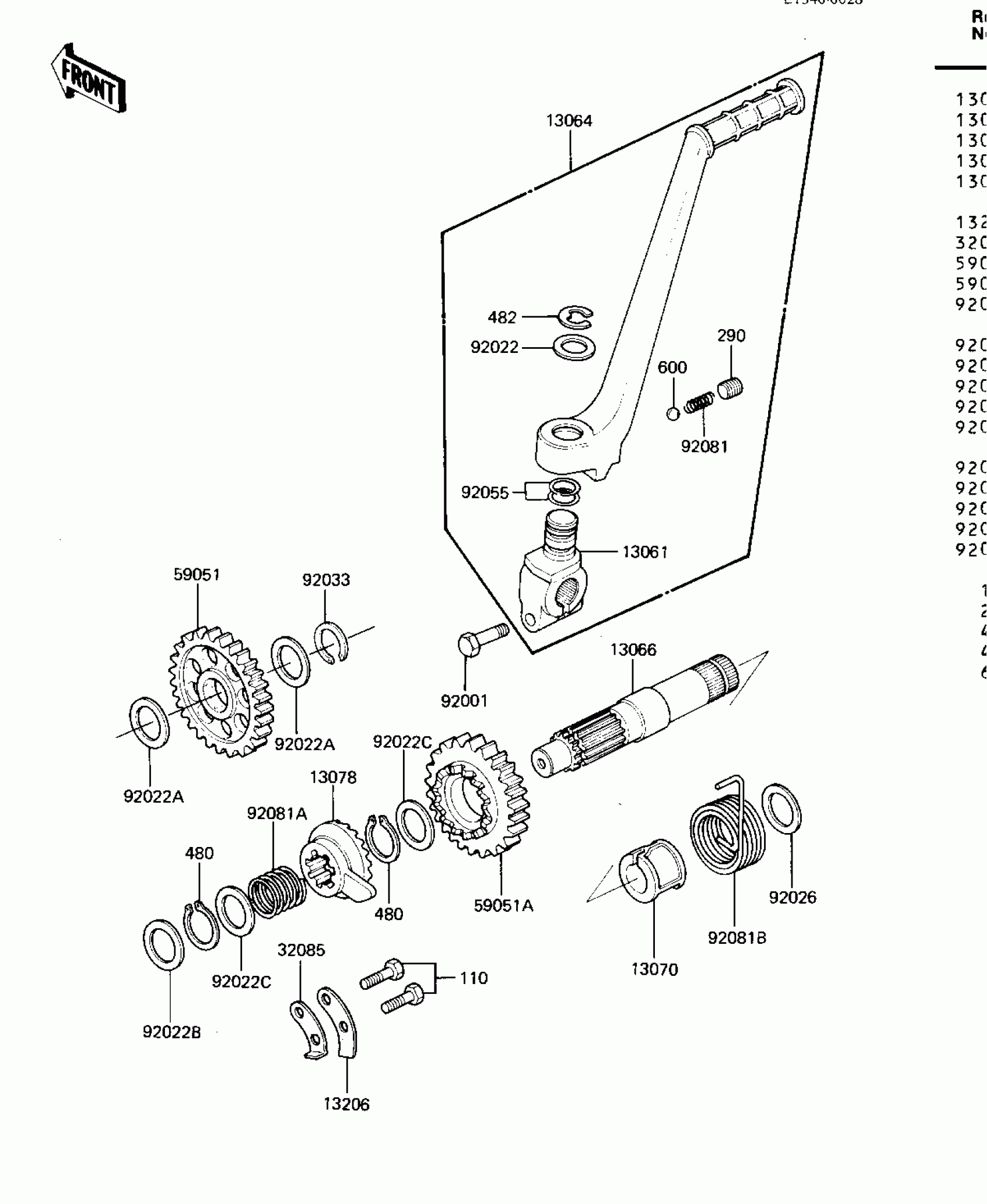

Kawasaki KDX250 KICKSTARTER MECHANISM ('82 KDX250-B2) Diagram

Description

Price

13061

BOSS,KICK PEDAL

13061-1052

Unavailable

13064

LEVER,KICK

13064-1033

Unavailable

13066

SHAFT,KICKSTARTER

13066-1014

Unavailable

13070

GUIDE,KICK SPRING

13070-011

$9.82

13078

RATCHET

13078-1052

$66.54

13206

GUIDE-KICK

13206-1059

Unavailable

32085

STOPPER,KICKSTARTER

32085-1016

$9.58

59051

IDLE GEAR, KICKSTRTE

59051-1022

Unavailable

59051A

GEAR,KICKSTARTER,27T

59051-1023

$74.39

92001

BOLT,8X28

92001-1042

$6.69

92022

WASHER,15.2X20X1

92022-1019

$5.23

92022A

WASHER,20.5X25.5X0.5

92022-252

$6.22

92022B

WASHER,12.3X20X0.5

92022-269

$1.25

92022C

WASHER,16.8X22X0.5

92022-315

$6.22

92026

SPACER,17.2X23X0.5

92026-1037

$4.31

92033

RING-SNAP,18MM

92033-029

$9.82

92055

"O" RING,11.5MM

92055-072

Unavailable

92081

SPRING,KICK PEDAL

92081-020

$4.26

92081A

SPRING,RATCHET

92081-122

$8.79

92081B

SPRING,KICKSTARTER

92081-1253

Unavailable

110

BOLT-UPSET

112G0618

$1.01

290

SCREW, 8X16

290Q0816

$4.58

480

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

482

CIR CLIP

482K0100

$0.70

600

BALL-STEEL,1/4

600A0800

$0.62
