Description

Price

1

LEVER,KICK

13064-1033

Unavailable

2

BOSS,KICKSTARTER

13061-1007

Unavailable

3

SCREW-SET-SOCKET,8X8

290Q0808

$4.78

4

CIR CLIP

482K0100

$0.70

5

BALL-STEEL,1/4

600A0800

$0.62

6

O RING,15MM

670B2015

$1.42

7

BOLT,8X28

92001-1042

$6.69

8

WASHER,15.2X20X1

92022-1019

$5.23

9

SPRING,KICK PEDAL

92081-020

$4.26

10

SHAFT,KICKSTARTER

13066-1014

Unavailable

11

GUIDE,KICK SPRING

13070-011

$9.82

12

RATCHET

13078-1052

$66.54

13

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

14

GEAR,KICKSTARTER,27T

59051-1023

$74.39

15

WASHER,16.8X22X0.5

92022-315

$6.22

16

SPRING,RATCHET

92081-122

$8.79

17

SPRING,KICKSTARTER

92081-1253

Unavailable

18

SPACER,17.2X23X0.5

92026-1037

$4.31

19

WASHER,12.3X20X0.5

92022-269

$1.25

20

BOLT-UPSET

112G0618

$1.01

21

GUIDE-KICK

13206-1059

Unavailable

22

STOPPER,KICKSTARTER

32085-1016

$9.58

23

IDLE GEAR, KICKSTRTE

59051-1022

Unavailable

24

WASHER,20.5X25.5X0.5

92022-252

$6.22

25

RING-SNAP,18MM

92033-029

$9.82

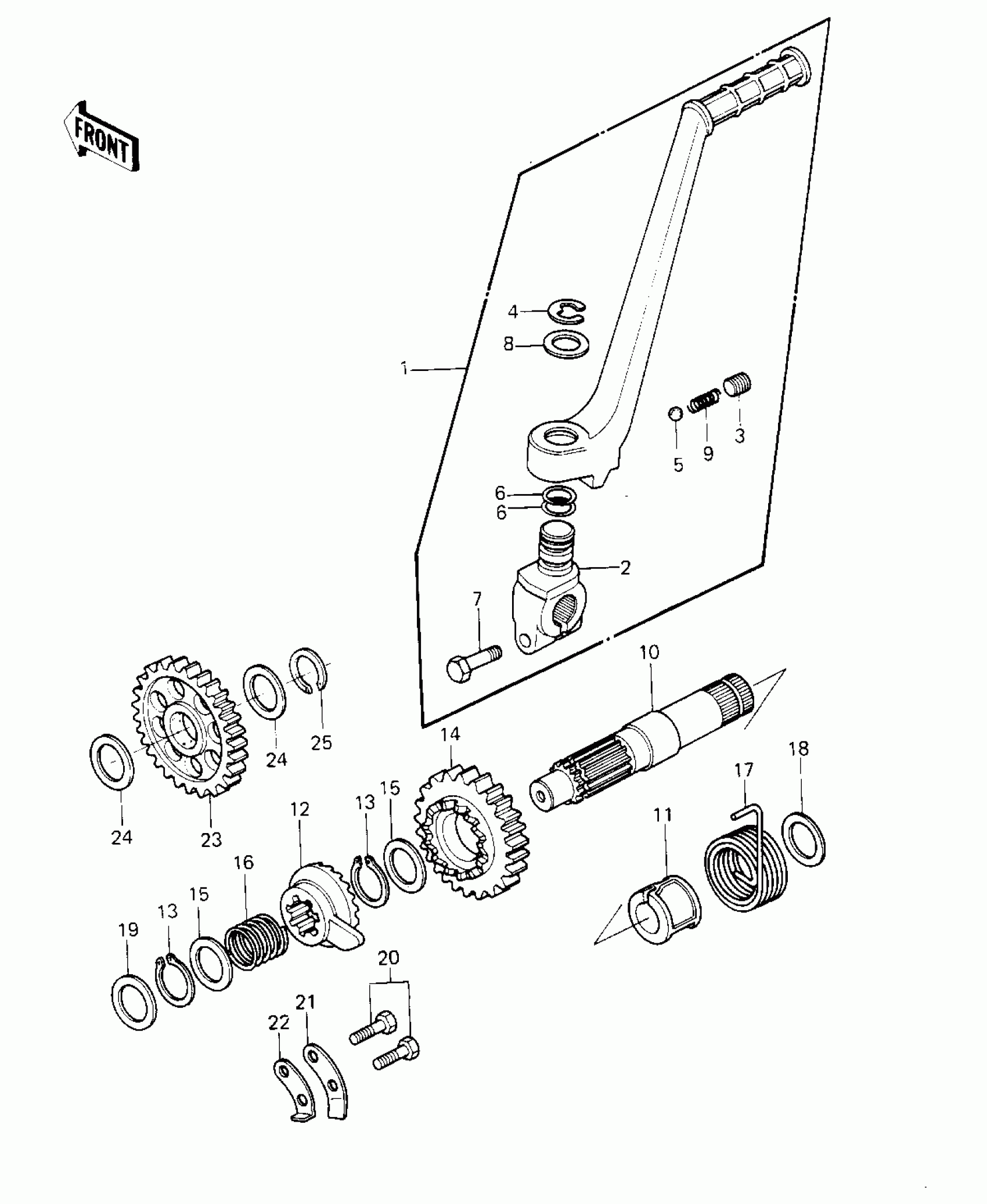

Kawasaki KDX250 KICKSTARTER MECHANISM ('81KDX250-B1) Diagram

LEVER,KICK

BOSS,KICKSTARTER

SCREW-SET-SOCKET,8X8

CIR CLIP

BALL-STEEL,1/4

O RING,15MM

BOLT,8X28

WASHER,15.2X20X1

SPRING,KICK PEDAL

SHAFT,KICKSTARTER

GUIDE,KICK SPRING

RATCHET

CIRCLIP-TYPE-C,16MM

GEAR,KICKSTARTER,27T

WASHER,16.8X22X0.5

SPRING,RATCHET

SPRING,KICKSTARTER

SPACER,17.2X23X0.5

WASHER,12.3X20X0.5

BOLT-UPSET

GUIDE-KICK

STOPPER,KICKSTARTER

IDLE GEAR, KICKSTRTE

WASHER,20.5X25.5X0.5

RING-SNAP,18MM
