Description

Price

11034

BRACKET,HEAD LMP PFI

11034-1688

Unavailable

11034A

BRACKET,HEAD LMP FIT

11034-1693

Unavailable

14025

COVER,HEAD LAMP

14025-4002

Unavailable

23004

LAMP,HEAD

23004-4001

Unavailable

23005

BODY-COMP-HEAD LAMP,

23005-5002-7F

Unavailable

23008

SOCKET-ASSY

23008-1153

$43.29

27004

SWITCH,HEAD LAMP

27004-4001

Unavailable

92009

SCREW,ADJUSTING,4X43

92009-4002

Unavailable

92009A

SCREW,HEAD LAMP

92009-4003

Unavailable

92015

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

92015A

NUT,5MM

23020-023

Unavailable

92022

WASHER,4.1X8X0.8

23021-004

$2.91

92022A

WASHER,PLAIN,5MM

23021-012

$5.43

92022B

WASHER,7.2X21

92022-1258

Unavailable

92037

CLAMP,HEAD LAMP

92037-4001

$8.92

92069

BULB,6V 35/25W

92069-4001

Unavailable

92072

BAND,FUEL TANK

92072-076

Unavailable

92072A

BAND,HEAD LAMP

92072-077

Unavailable

92075

DAMPER

92075-1328

$3.80

92075A

DAMPER

92075-1329

$3.02

92075B

DAMPER

92075-1375

$9.49

92081

SPRING,FOCUS ADJUSTN

92081-4003

Unavailable

92093

SEAL,HEAD LAMP

92093-4001

Unavailable

220

SCREW-PAN-CROS,6X16

220B0616

$2.84

461

WASHER SPRING 6MM

461F0600

$0.69

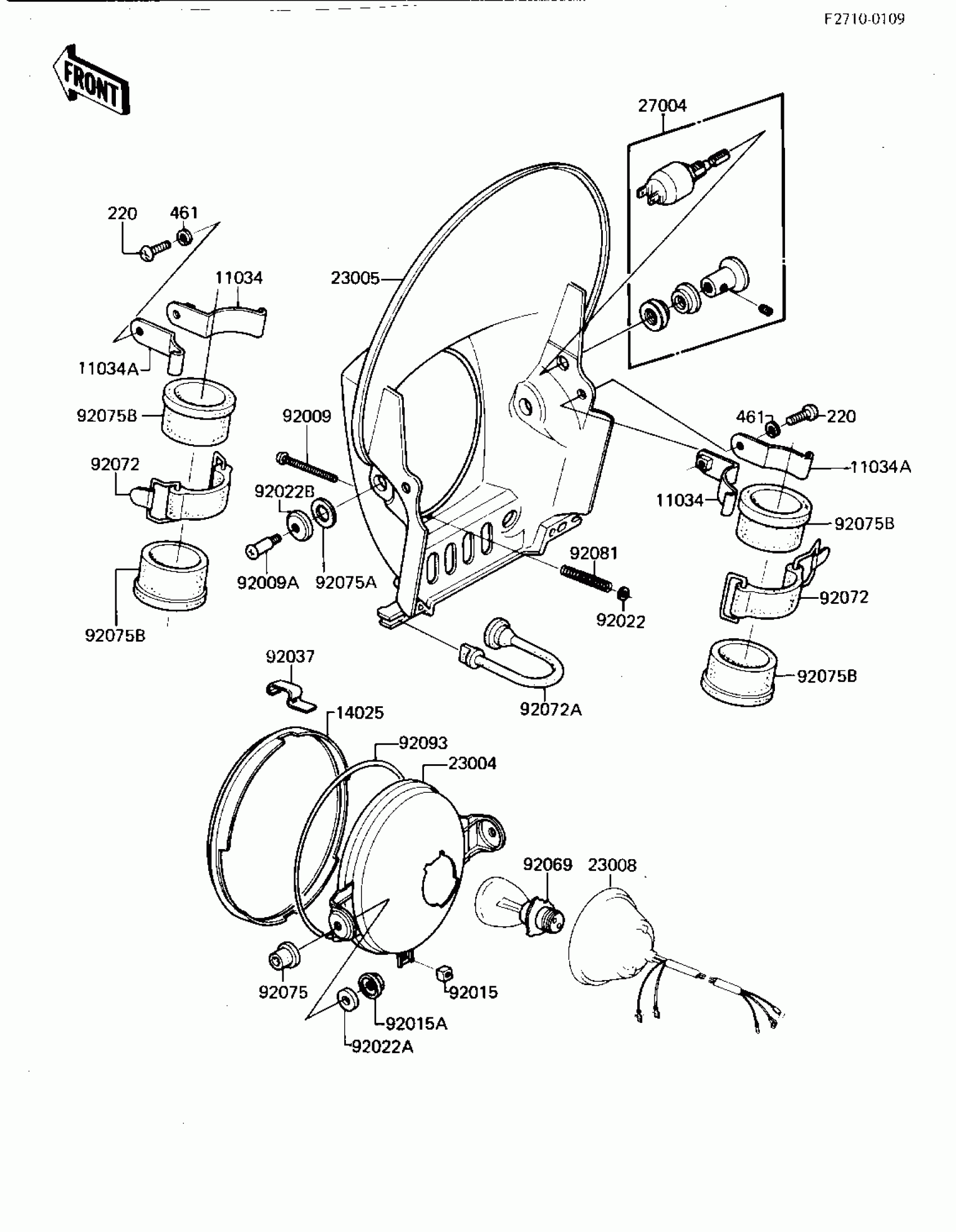

Kawasaki KDX250 HEADLIGHT ('82 KDX250-B2) Diagram

BRACKET,HEAD LMP PFI

BRACKET,HEAD LMP FIT

COVER,HEAD LAMP

LAMP,HEAD

BODY-COMP-HEAD LAMP,

SOCKET-ASSY

SWITCH,HEAD LAMP

SCREW,ADJUSTING,4X43

SCREW,HEAD LAMP

NUT,4MM,FOCUS ADJUST

NUT,5MM

WASHER,4.1X8X0.8

WASHER,PLAIN,5MM

WASHER,7.2X21

CLAMP,HEAD LAMP

BULB,6V 35/25W

BAND,FUEL TANK

BAND,HEAD LAMP

DAMPER

DAMPER

DAMPER

SPRING,FOCUS ADJUSTN

SEAL,HEAD LAMP

SCREW-PAN-CROS,6X16

WASHER SPRING 6MM
