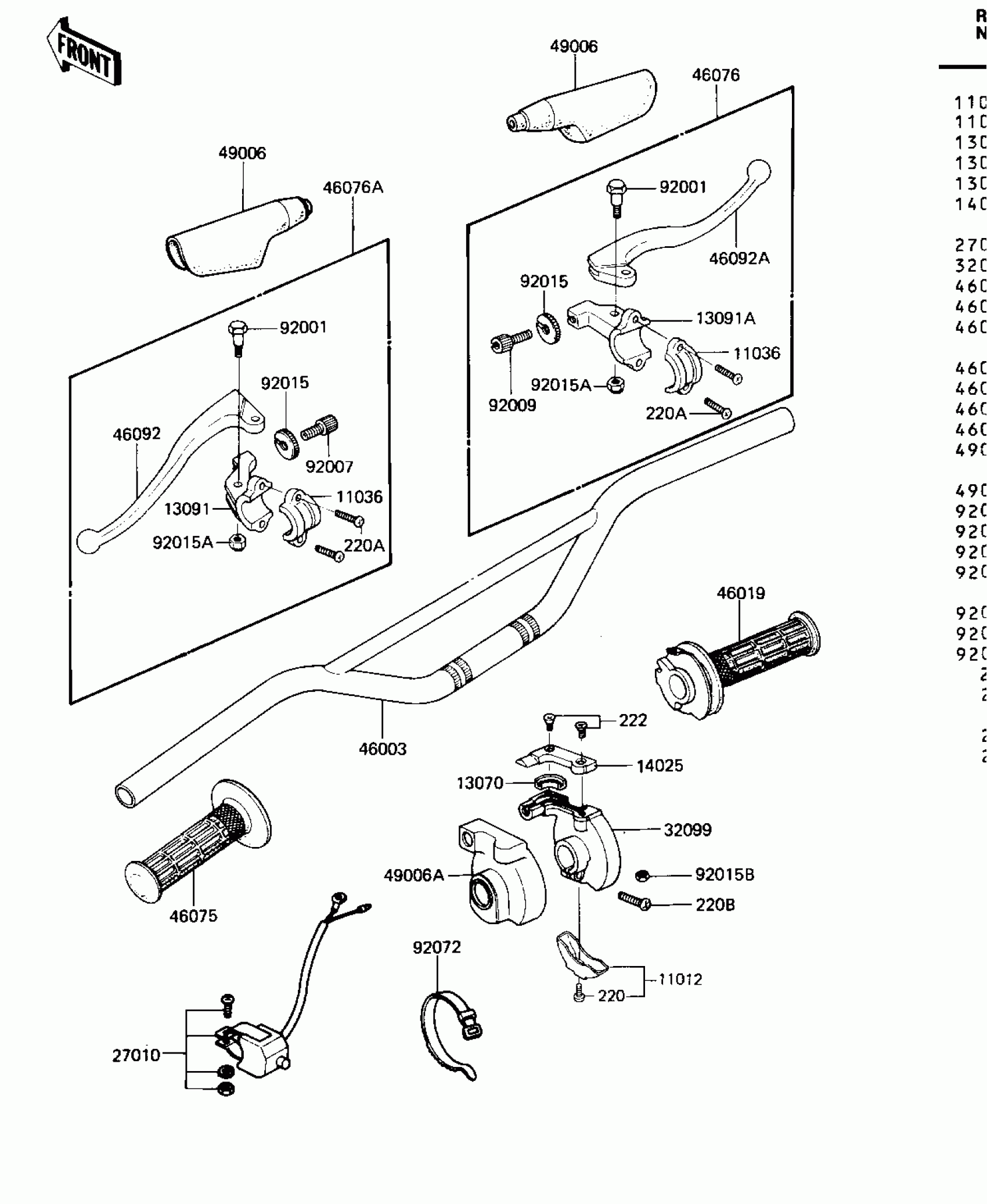

Kawasaki KDX250 HANDLEBAR ('82 KDX250-B2) Diagram
#
Description
Price
11012
CAP, THROTTLE CASE
11012-1271
Unavailable
11036
BRACKET-A,LEVER HOLDER
11036-1297
Unavailable
13070
GUIDE,THROTTLE PEACE
13070-1053
Unavailable
13091
HOLDER,CLUTCH LEVER
13091-1131
$46.92
13091A
HOLDER,BRAKE LEVER
13091-1135
Unavailable
14025
COVER,THROTTLE UPP,R
14025-1392
Unavailable
27010
SWITCH,ASSY,ENG STOP
27010-1018
Unavailable
32099
CASE,THROTTLE LWR,RH
32099-1024
$41.86
46003
HANDLEBAR
46003-1093
$143.60
46019
GRIP-ASSY,THROTTLE
46019-1020
Unavailable
46075
GRIP,LH
46075-1024
$25.66
46076
LEVER-ASSY-GRIP
46076-1120
Unavailable
46076A
LEVER-ASSY-GRIP,CLUTCH
46076-1118
$45.35
46092
LEVER-GRIP,CLUTCH
46092-1110
$26.28
46092A
LEVER-GRIP,BRAKE
46092-1109
Unavailable
49006
DUST COVER
46071-003
Unavailable
49006A
BOOT,THROTTLE CASE,R
49006-1082
$29.95
92001
BOLT,HEX HEAD,6MM
92001-140
Unavailable
92007
SCREW,CABLE ADJUST
46055-010
$28.86
92009
SCREW,CABLE ADJUST,8MM
46055-009
$19.07
92015
NUT,CABLE ADJUST
46056-006
$8.94
92015A
NUT,LOCK,6MM
92019-008
$4.26
92015B
NUT,LOCK,4MM
92019-010
$3.55
92072
BAND,L=123
92072-030
$5.00
220
SCREW PAN HEAD 4X10
220B0410
$2.30
220A
SCREW-PAN-CROS
220B0514
$4.04
220B
SCREW-PAN-CROS
220B0520
$0.68
222
SCREW-CSK-RD-CROS,4X12
222E0412
$2.63
