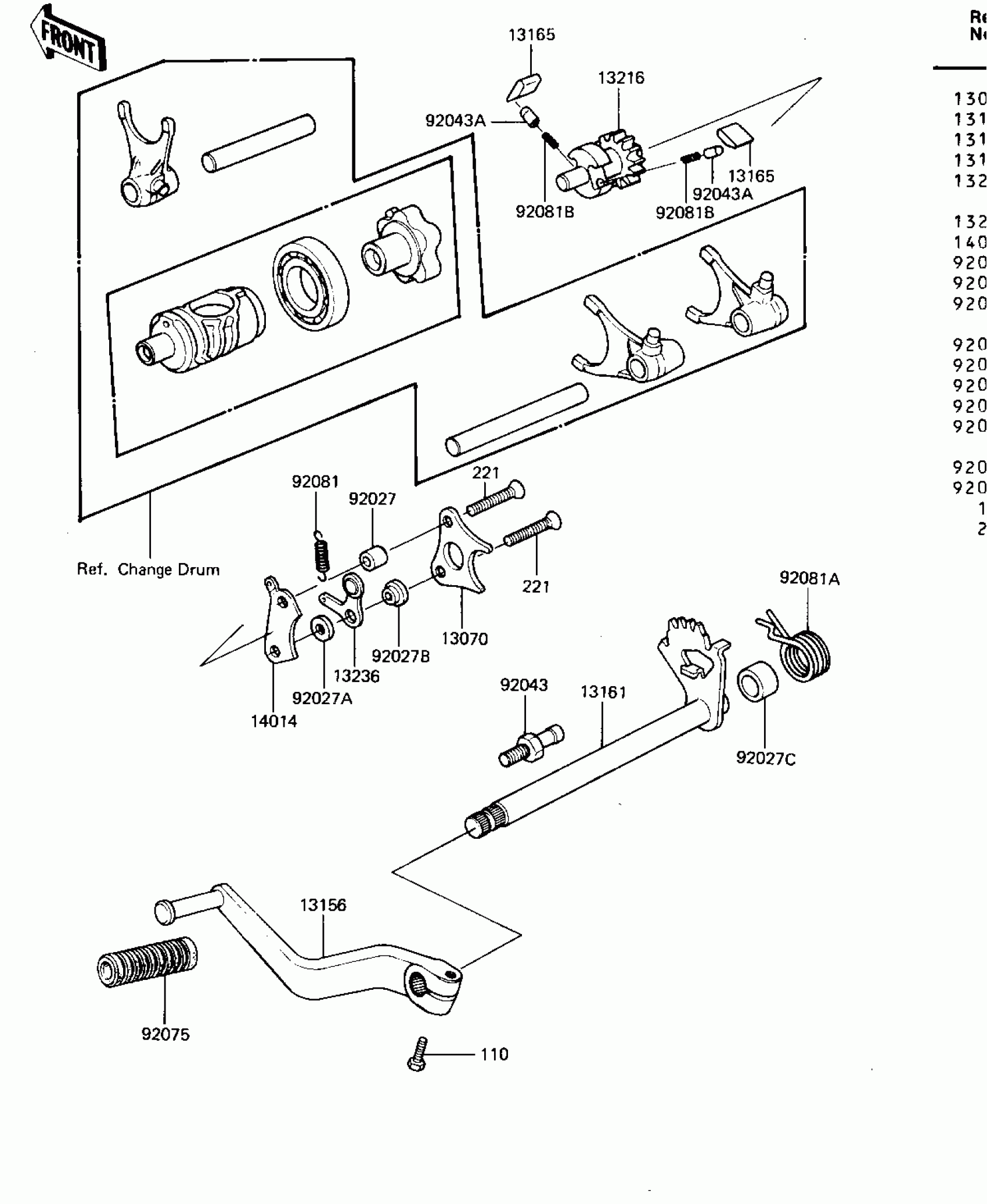

Kawasaki KDX250 GEAR CHANGE MECHANISM ('82 KDX250-B2) Diagram

Description

Price

13070

GUIDE,RATCHET

13070-1049

Unavailable

13156

LEVER-CHANGE

13156-1082

Unavailable

13161

LEVER-COMP-CHANGE SHA

13161-1029

Unavailable

13165

PAWL,RATCHET

13165-1026

Unavailable

13216

RATCHET,CHANGE DRUM

13216-1020

Unavailable

13236

LEVER,CHANGE DRUM

13236-1021

Unavailable

14014

PLATE,POSITIONING

14014-1013

Unavailable

92027

COLLAR,RATCHET GUIDE

92027-1234

$3.02

92027A

COLLAR,RATCHET GUIDE

92027-1235

Unavailable

92027B

COLLAR

92027-1248

Unavailable

92027C

COLLAR

92027-189

Unavailable

92043

PIN,CHANGE PEDAL

92043-1055

Unavailable

92043A

92043-1067

$9.44

92075

DAMPER,CHANGE PEDAL

92160-1108

$8.10

92081

SPRING-COIL

92081-077

Unavailable

92081A

SPRING,TENSION

92081-1129

$9.43

92081B

SPRING,RATCHET PAWL

92081-1201

$4.53

110

BOLT-UPSET,6X20

112G0620

$2.12

221

SCREW-CSK-CROS,6X28

221B0628

$2.14
