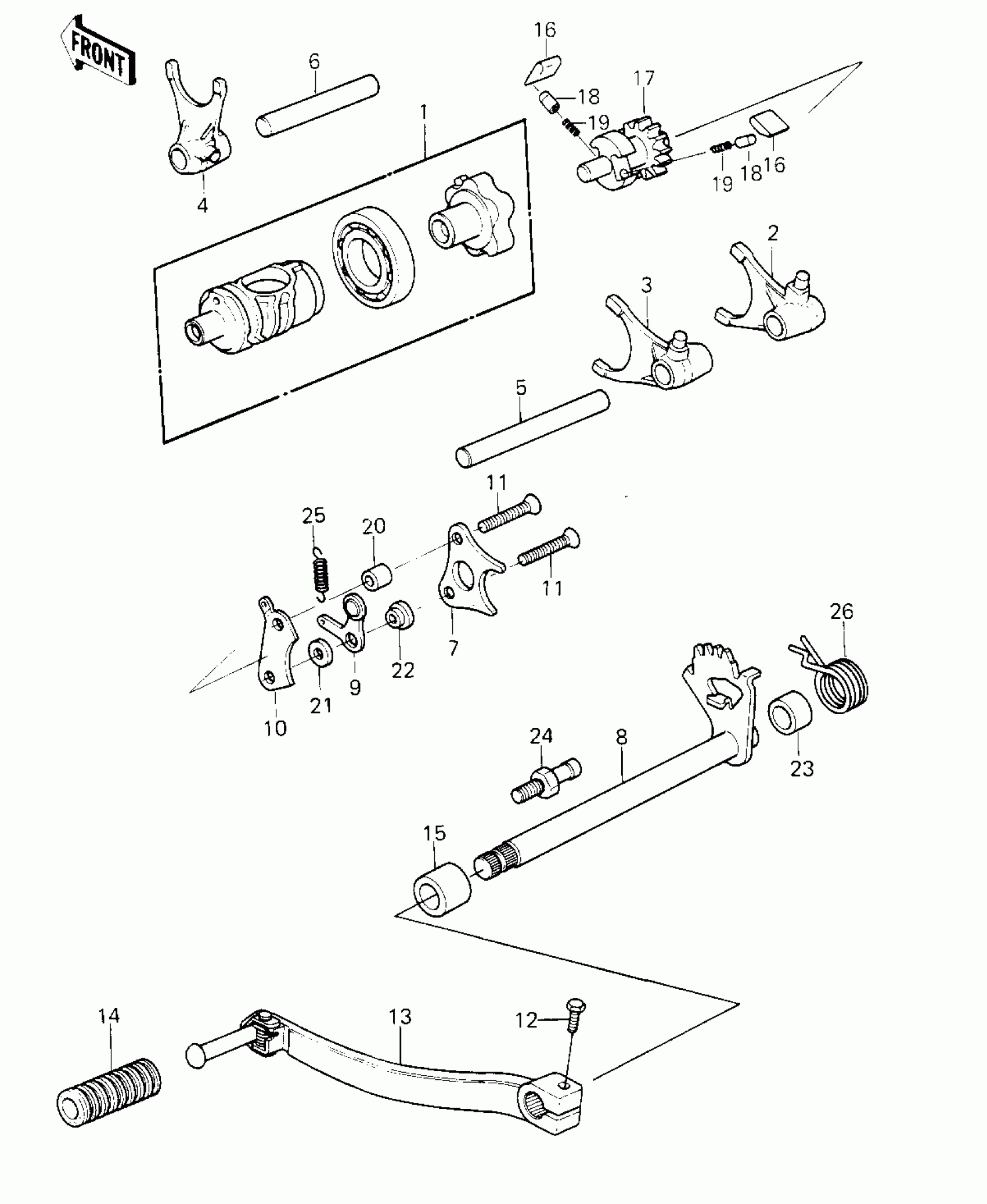

Kawasaki KDX250 GEAR CHANGE MECHANISM ('81KDX250-B1) Diagram

#

Description
Price

1

DRUM ASSY,GEAR CHANGE

13239-1038

Unavailable

2

FORK,SHIFT,LOW

13140-1052

Unavailable

3

FORK,SHIFT

13140-1043

Unavailable

4

FORK,SHIFT

13140-1101

Unavailable

5

ROD-SHIFT,10X90

49047-1009

$16.18

6

ROD-SHIFT,10X65

49047-1011

$7.35

7

GUIDE,RATCHET

13070-1049

Unavailable

8

LEVER ASSY,GEAR CHNGE

13161-1016

Unavailable

9

LEVER,CHANGE DRUM

13236-1021

Unavailable

10

PLATE,POSITIONING

14014-1013

Unavailable

11

SCREW-CSK-CROS,6X28

221B0628

$2.14

12

BOLT,6X20

110P0620

$4.46

13

PEDAL,CHANGE

13242-1043

Unavailable

14

DAMPER

92075-1310

Unavailable

15

COLLAR,13.5X22X18

92027-1274

Unavailable

16

PAWL,RATCHET

13165-1026

Unavailable

17

RATCHET,CHANGE DRUM

13216-1020

Unavailable

18

PIN

92043-1067

$9.44

19

SPRING,RATCHET PAWL

92081-1201

$4.53

20

COLLAR,RATCHET GUIDE

92027-1234

$3.02

21

COLLAR,RATCHET GUIDE

92027-1235

Unavailable

22

COLLAR

92027-1248

Unavailable

23

COLLAR

92027-189

Unavailable

24

PIN,CHANGE PEDAL

92043-1055

Unavailable

25

SPRING-COIL

92081-077

Unavailable

26

SPRING,TENSION

92081-1129

$9.43
