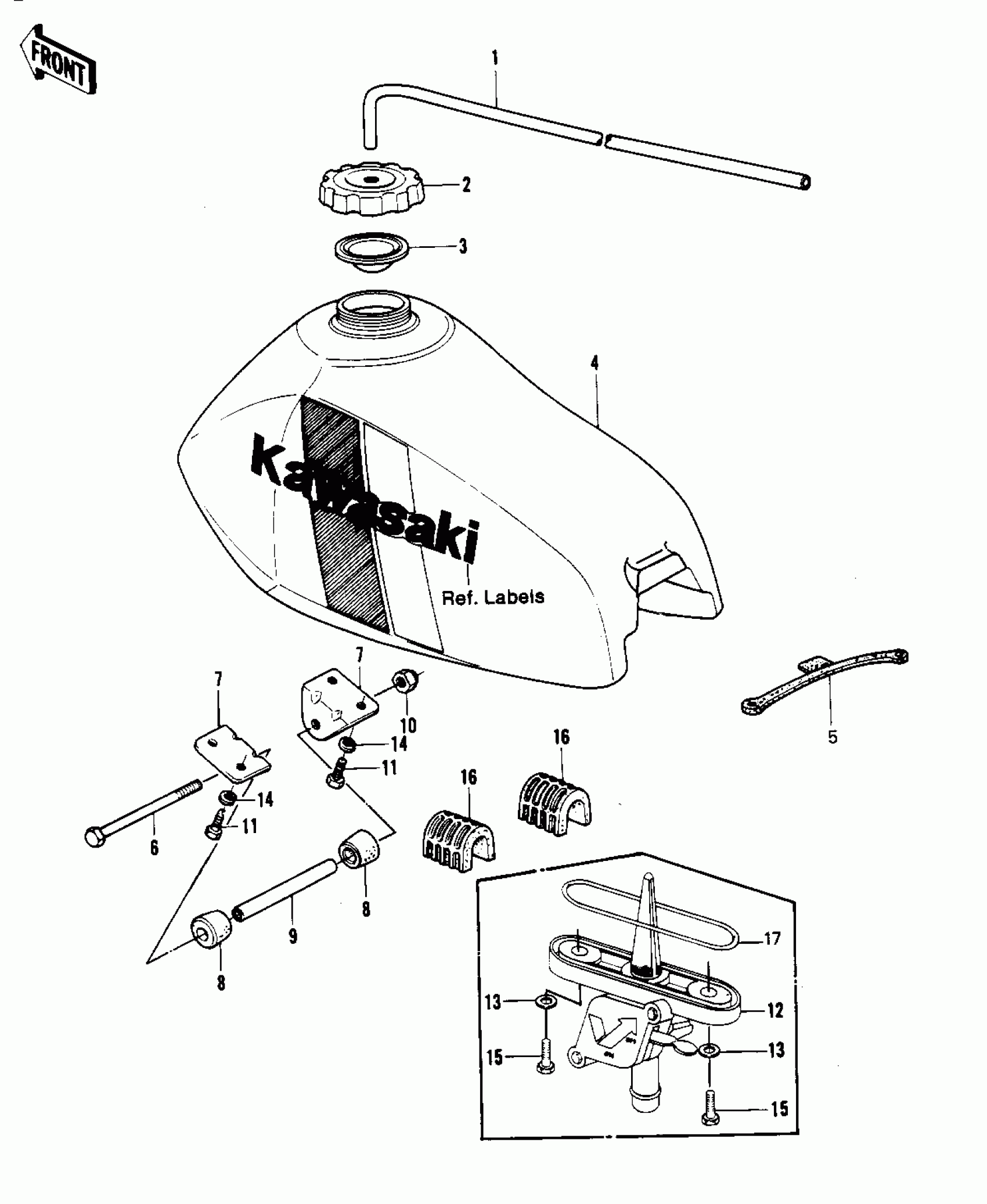

Kawasaki KDX250 FUEL TANK ('81KDX250-B1) Diagram

#

Description
Price

1

TUBE,5X7X500

92059-4001

Unavailable

2

CAP-TANK,FUEL

51049-1060

Unavailable

3

GASKET,FUEL TANK CAP

11009-4001

Unavailable

4

TANK-FUEL,GREEN

51001-4004-6W

Unavailable

5

BAND,FUEL TANK

92072-042

$15.19

6

BOLT-UPSET,6X105

112G06105

$4.46

7

BRACKET,TANK

32052-1031

$13.18

8

DAMPER,FUEL TANK FITT

92075-1220

Unavailable

9

COLLAR,FUEL TANK FIT

92027-1228

Unavailable

10

NUT,LOCK,6MM

92019-008

$4.26

11

BOLT-UPSET,6X12

112G0612

$1.45

12

COCK ASSY,FUEL

51023-4002

Unavailable

13

WASHER-PLAIN

92022-183

$3.92

14

WASHER SPRING 6MM

461F0600

$0.69

15

BOLT-HEX HEAD,6X16

92001-114

$4.37

16

DAMPER,FUEL TANK

92075-1221

Unavailable

17

RING,TAP FLANGED

51039-003

$6.27
