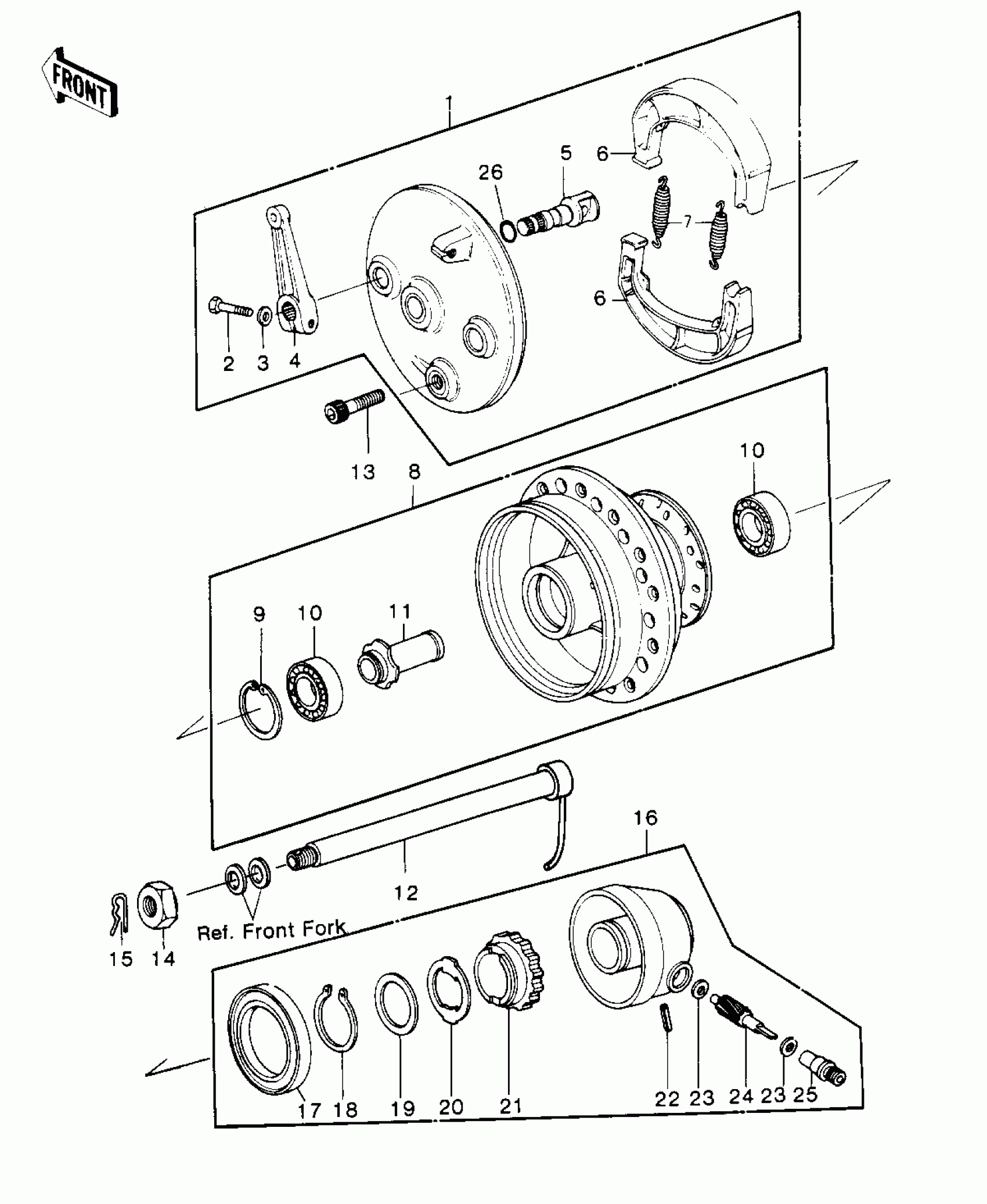

Kawasaki KDX250 FRONT HUB/BRAKE ('81KDX250-B1) Diagram

#

Description
Price

1

PANEL-ASY,FR BRK

41035-1072

$307.50

2

BOLT-UPSET

112G0622

$3.48

3

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

4

LEVER,FRONT BRAKE CAM

41053-1003

$61.71

5

CAM SHAFT,BRAKE

41050-1002

Unavailable

6

SHOE-BRAKE

41048-1068

$27.31

7

SPRING,BRAKE SHOE

42020-004

$8.51

8

DRUM-ASSY,FR BRK

41034-4001

$260.11

9

RING-SNAP,42MM

92033-1041

$6.16

10

BEARING,FRONT DRUM

92045-033

Unavailable

11

COLLAR,FRONT BRAKE

92027-1034

$28.77

12

AXLE,FRONT

41068-4001

$52.53

13

BOLT,SOCKET,10X40

92001-4002

$4.87

14

NUT,CASTLE,14MM

42045-020

$9.91

15

PIN,COTTER

550D3230

$2.33

16

CASE-ASSY-METER GEAR

41078-011

Unavailable

17

OIL SEAL,#50659

654A506509

$17.29

18

CIRCLIP-TYPE-C,24MM

480J2400

$6.32

19

WASHER,24.5X32X0.8

41065-005

Unavailable

20

RECEIVER-SPEEDOMETER

41064-015

Unavailable

21

GEAR-METER SCREW

41059-027

Unavailable

22

PIN,SPRING

41082-001

$3.92

23

WASHER,5.1X9X0.4

41063-001

$4.69

24

GEAR-METER SCREW,8T

41060-015

Unavailable

25

BUSHING,SPEEDOMETER CABLE

41062-005

$19.48

26

O RING,15MM

670B2015

$1.42
