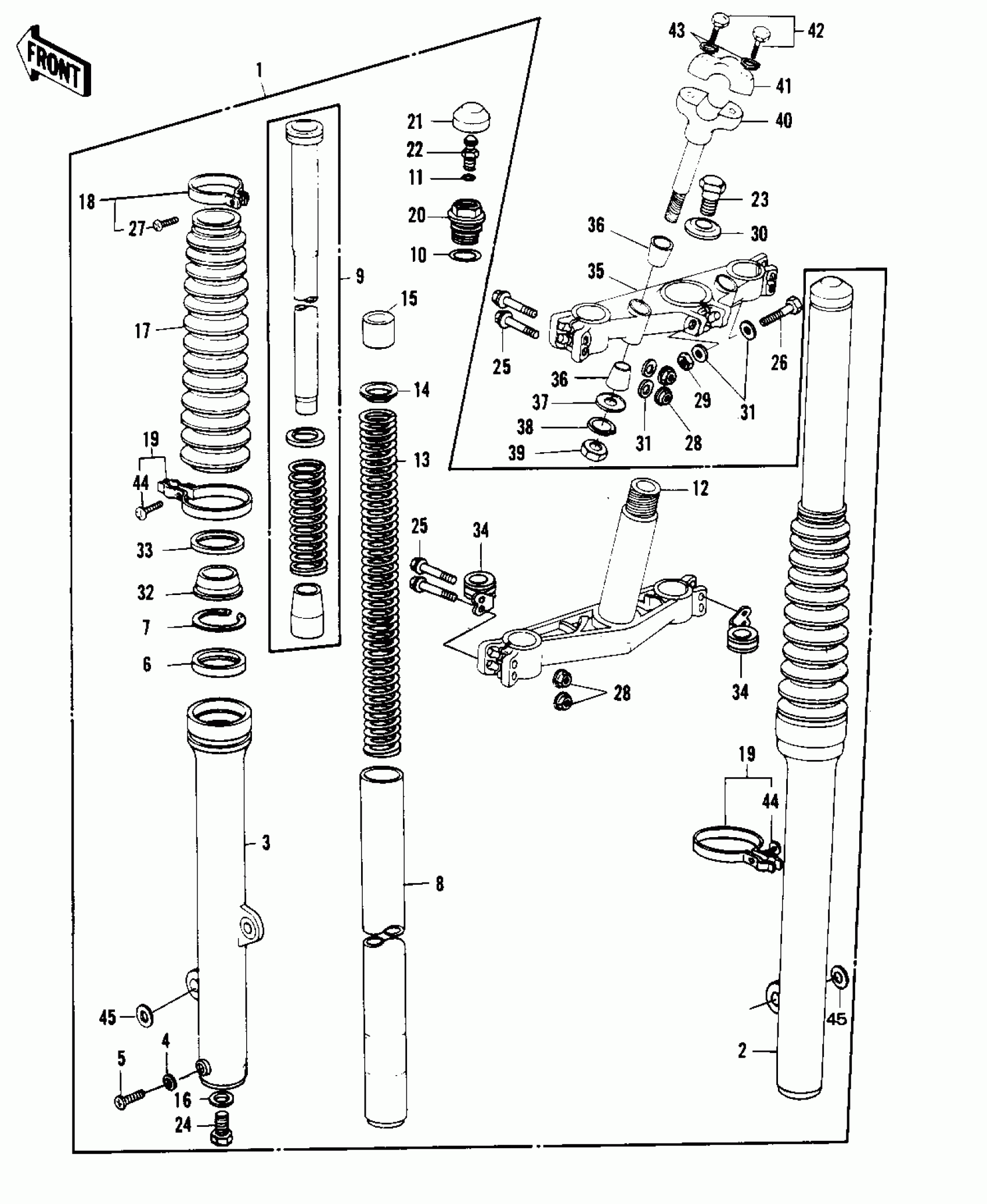

Kawasaki KDX250 FRONT FORK ('81KDX250-B1) Diagram

#

Description
Price

1

FORK-FRONT

44001-4004

$980.59

2

TUBE,RH,FORK OUTER

44006-4001

$167.79

3

TUBE,LH,FORK OUTER

44005-4001

$158.87

4

GASKET,FORK DRAIN PLUG

44045-002

$5.18

5

SCREW PAN HEAD 4X8

220B0408

$0.67

6

OIL SEAL,FORK OUT TUB

92049-1042

Unavailable

7

SNAP RING,FORK OUT TU

92033-1035

Unavailable

8

TUBE,FORK INNER

44013-4001

$248.94

9

CYLINDER-FORK

44022-4001

$82.25

10

RING-O,FORK TOP CAP

92055-1050

$6.27

11

"0" RING,AIR VALVE

92055-1018

Unavailable

12

STEM,STEERING

44037-1065

$458.19

13

SPRING,FORK INNER

44026-4001

$48.79

14

GUIDE-FORK SPRING

44028-1003

$11.28

15

SPACER,FORK SPRING

92026-4002

$5.88

16

GASKET,FORK CYLINDER BOLT

11009-1127

$5.18

17

BOOT,FORK

49006-1174

Unavailable

18

BAND,BOOT

92072-1046

$10.04

19

CLAMP,BOOT,L.H

92072-1026

Unavailable

20

CAP,FORK TOP

44029-1008

Unavailable

21

CAP,RUBBER,FORK TOP

44029-1009

Unavailable

22

VALVE ASSY,AIR

16126-1003

Unavailable

23

BOLT,FORK TOP

44041-065

Unavailable

24

BOLT,FORK CYLINDER

92001-1186

$3.40

25

BOLT-FLANGED,8X55

130G0855

Unavailable

26

BOLT,HEX HEAD,8X57

92001-1141

Unavailable

27

SCREW-PAN-CROS

220B0420

$2.49

28

NUT,8M/M

44007-1002

Unavailable

29

NUT,LOCK,8MM

92015-1124

$5.42

30

WASHER

44043-052

$8.01

31

WASHER PLAIN 8MM

410B0800

$0.93

32

DUST SHIELD,FORK OUTR

92093-1035

$14.45

33

CASE,DUST SHIELD

32099-1013

Unavailable

34

CLAMP,CABLE

92072-1027

Unavailable

35

HEAD,STEERING STEM

44039-4004

$91.95

36

DAMPER RUBBER,HANDLE

92075-275

Unavailable

37

WASHER

92022-4012

$4.87

38

WASHER SPRING 10MM

461F1000

$0.67

39

NUT,LOCK,10MM

92019-021

$6.11

40

HOLDER-HANDLE,LWR

46012-010

$30.76

41

HOLDER-HANDLE,UPP

46012-008

$37.74

42

BOLT 8X38

92001-1405

$16.50

43

WASHER SPRING 8MM

461F0800

$0.40

44

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

45

WASHER,FORK

92022-4006

Unavailable
