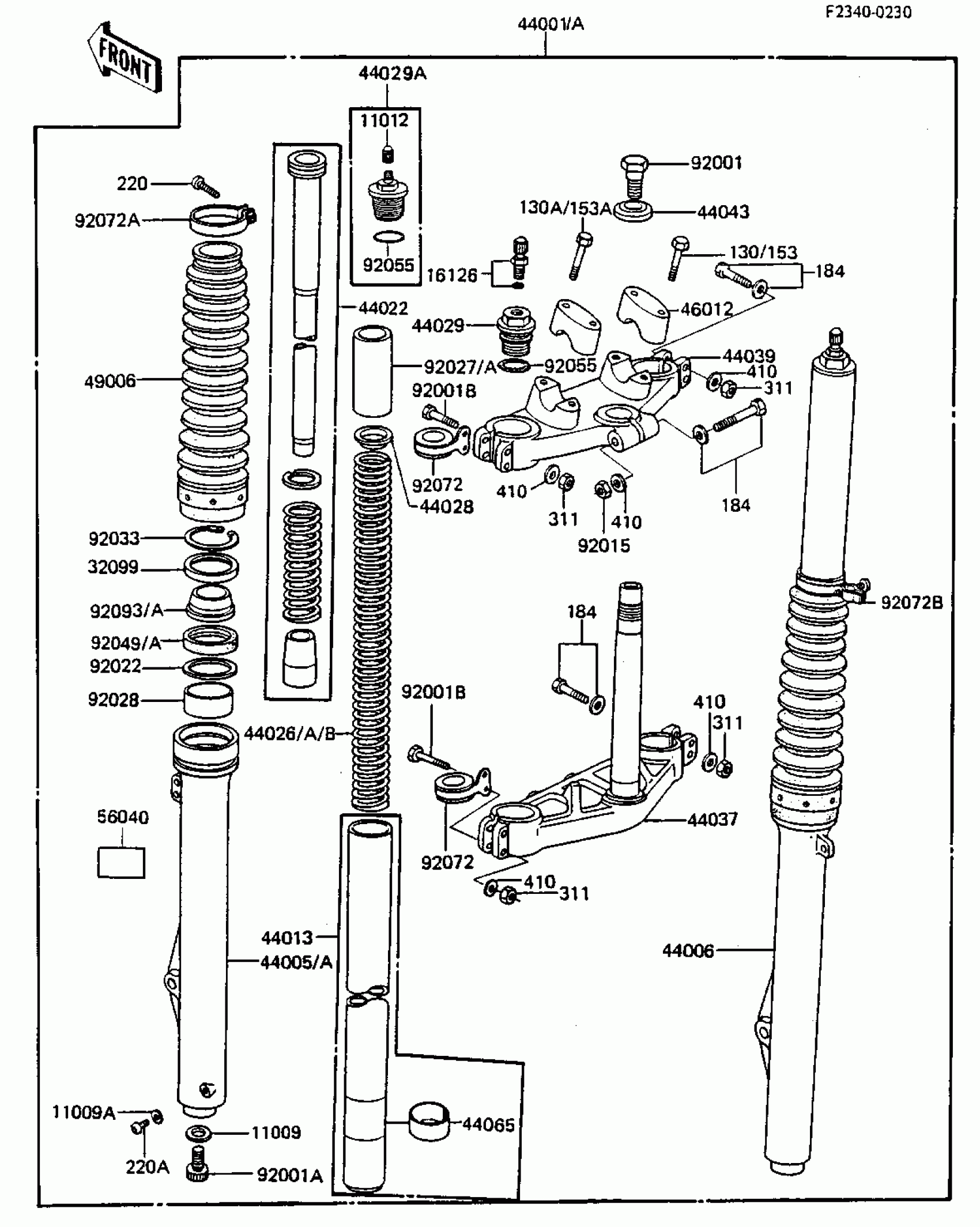

Kawasaki KDX250 FRONT FORK Diagram
#
11009
GASKET,FORK CYLINDER BOLT
11009-1127
$5.18
11009A
GASKET,FORK DRAIN PLUG
44045-002
$5.18
11012
CAP,VALVE AIR
11012-1391
$5.73
44001A
FORK-FRONT
44001-1513
$1,360.30
44005A
PIPE-LEFT FORK OUTER
44005-1209
$315.92
44006
PIPE-RIGHT FORK OUTER
44006-1123
$315.31
44013
PIPE-FORK INNER
44013-1102
$384.42
44022
CYLINDER-FORK
44022-1088
$109.96
44026
SPRING-FRONT FORK
44026-1204
$44.01
44026A
SPRING-FRONT FORK
44026-1205
$38.35
44026B
SPRING-FRONT FORK
44026-1206
$44.09
44028
GUIDE-FORK SPRING
44028-1003
$11.28
44029A
SEAT-FORK SPRING
44029-1106
$37.96
44037
HOLDER-FORK UNDER
44037-1103
$394.50
44039
HOLDER-FORK UPPER
44039-1043
$196.96
44043
WASHER
44043-052
$8.01
44065
BUSHING,FORK PIPE
92028-1126
$49.26
46012
HOLDER-HANDLE
46012-1014
$12.13
49006
BOOT,FORK
49006-1174
Unavailable
56040
LABEL-WARNING,FRONT FORK
56040-1120
$6.10
92001
BOLT,FORK TOP
44041-065
Unavailable
92001A
BOLT,FORK CYLINDER
92001-1309
$7.62
92001B
BOLT FLANGED 8X55
92001-1398
$4.04
92015
NUT,LOCK,8MM
92015-1124
$5.42
92022
WASHER,FORK OUTER PIPE
92022-1262
$8.60
92027A
COLLAR,L=127
92027-1762
$6.17
92028
BUSHING-FRONT FORK,OUTER TUBE
44065-1091
$25.96
92033
RING-SNAP,FORK
92033-1047
$6.46
92049A
SEAL-OIL,FRONT FORK
92049-1180
$22.14
92055
RING-O,FORK TOP CAP
92055-1050
$6.27
92072
BAND,CABLE
92072-1040
Unavailable
92072A
BAND,BOOT
92072-1046
$10.04
92072B
BAND,BOOT,RH
92072-1094
$5.79
92093A
SEAL,FRONT FORK
92093-1166
$18.22
130
BOLT-FLANGED,8X35
130G0835
$1.42
130A
BOLT-FLANGED,8X50
130G0850
$2.19
184
BOLT-UPSET-WP-SMALL
184G0855
$3.55
220
SCREW-PAN-CROS
220B0316
$0.53
220A
SCREW PAN HEAD 4X8
220B0408
$0.67
311
NUT-HEX,8MM
311G0800
Unavailable
410
WASHER PLAIN 8MM
410B0800
$0.93
