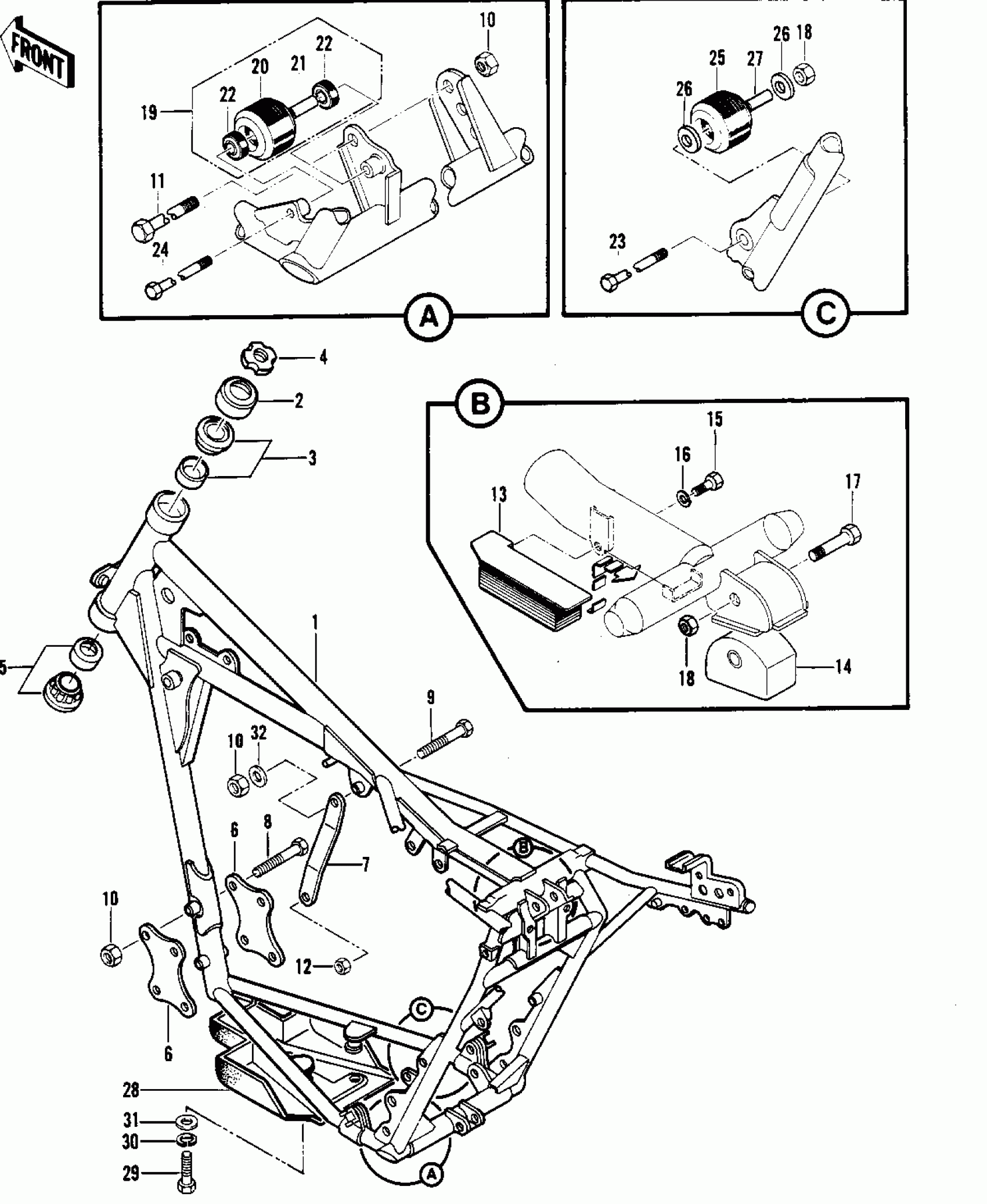

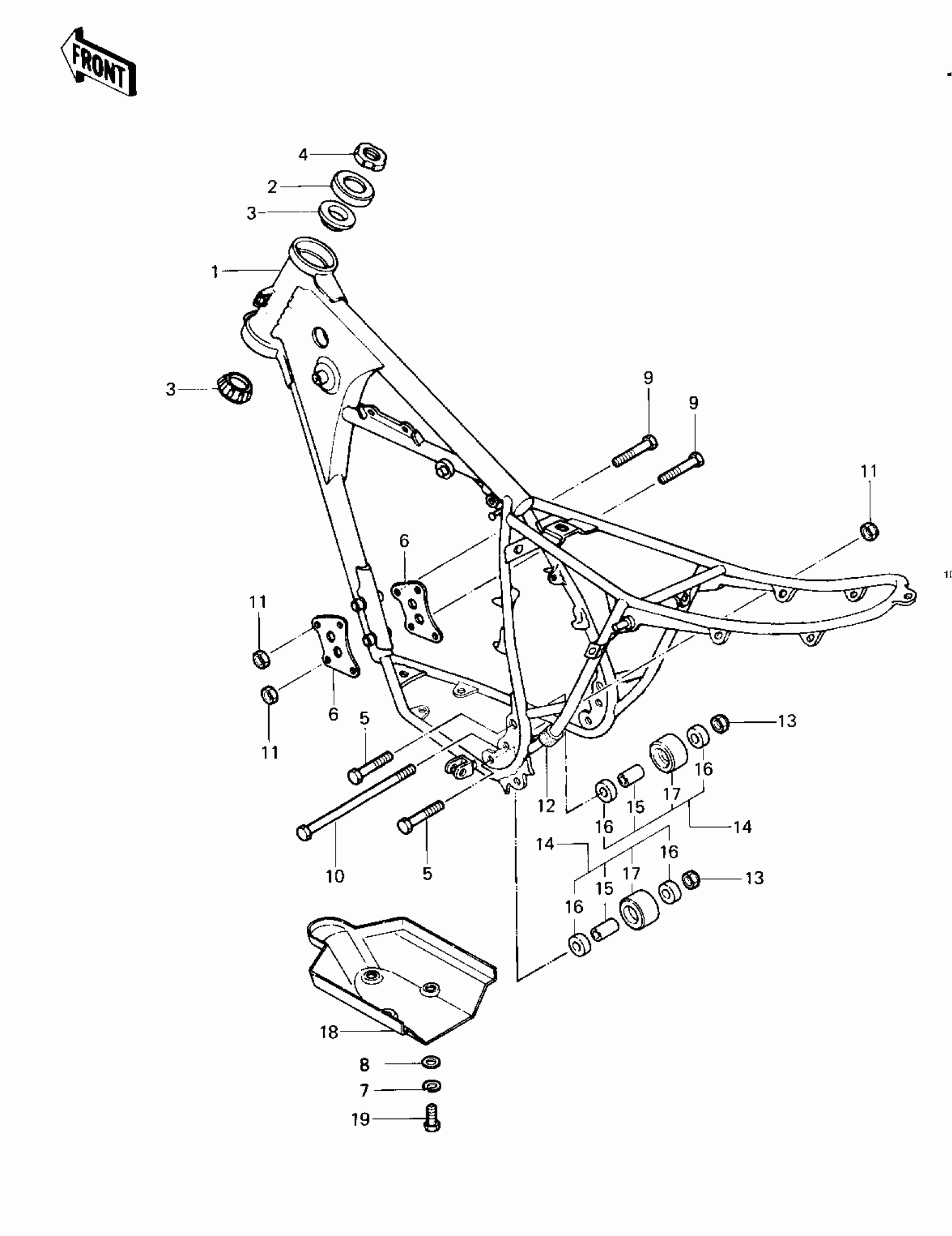

Kawasaki KDX250 FRAME/FRAME FITTINGS Diagram

#

Description
Price

1

FRAME

32002-4004

Unavailable

2

CAP,STEERING STEM

46098-015

Unavailable

3

RACE,ROLLER,32005JR RS

92047-017

$43.75

4

NUT,25MM,T=12

92015-1546

$20.96

5

BOLT-SMALL-UPSET

115G0855

$6.13

6

BRKT,ENG

32029-4009

$15.16

7

WASHER SPRING 6MM

461F0600

$0.69

8

WASHER-PLAIN,7MM

92022-240

Unavailable

9

BOLT HEX HEAD,10X66.5

92001-1033

Unavailable

10

BOLT,HEX HEAD,10X127

92001-4001

Unavailable

11

NUT,LOCK,10MM

92019-021

$6.11

12

GUARD, FRAME

55020-4004

Unavailable

13

NUT,LOCK,8MM

92015-1124

$5.42

14

ROLLER,CHAIN ADJUST

92122-4004

$35.97

15

SPACER,CHN GDE ROLLER

92027-4007

$8.54

16

BEARING-BALL,608LLU/2A

92045-1009

$35.22

17

ROLLER

92122-1014

Unavailable

18

GUARD,ENG

55020-4005

Unavailable

19

BOLT-UPSET,6X16

112G0616

$1.10
