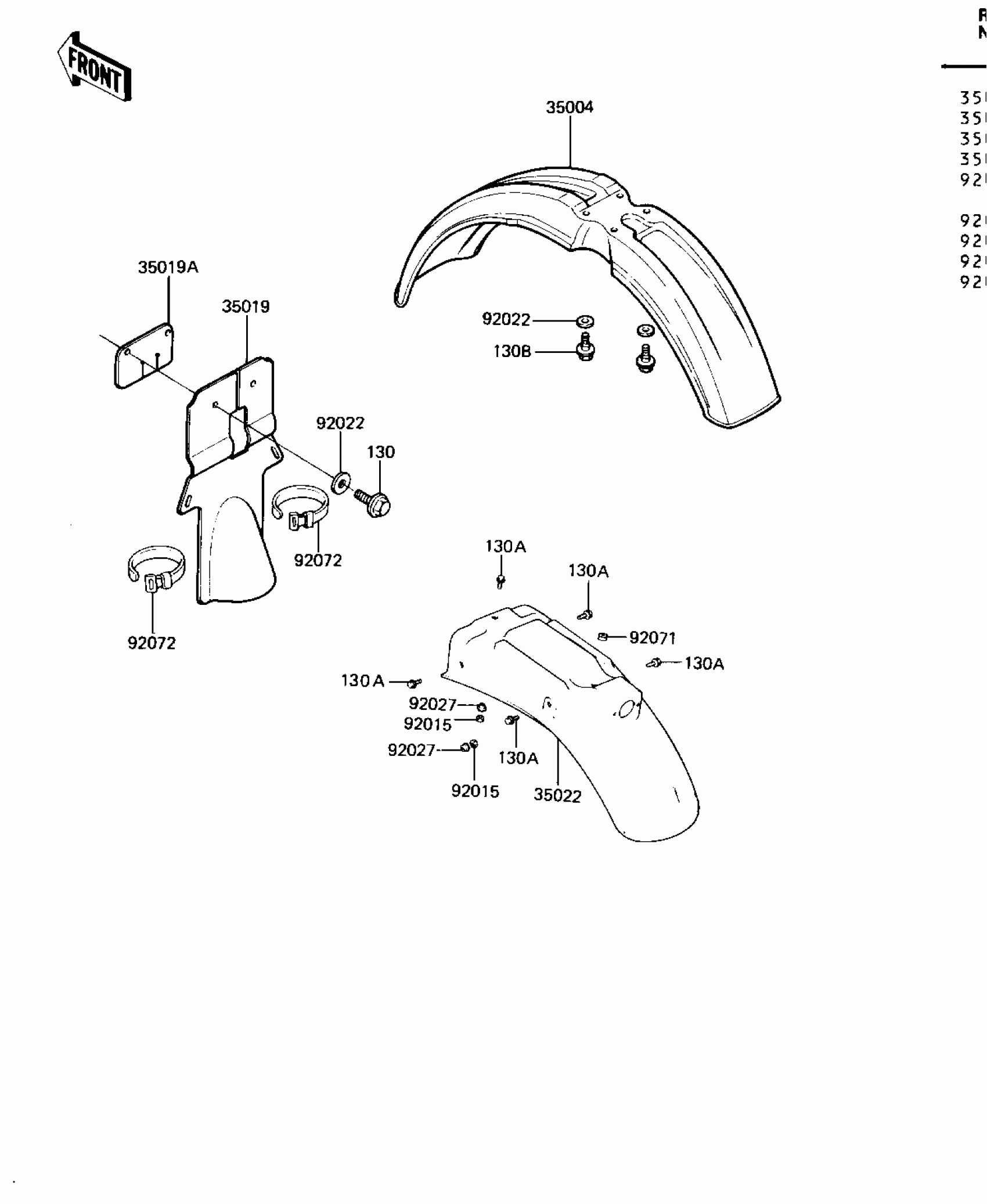

Kawasaki KDX250 FENDERS ('82 KDX250-B2) Diagram

Description

Price

35004

FENDER-FRONT,L.GREEN

35004-1233-6W

Unavailable

35019

FLAP,REAR FENDER

35019-1035

$20.10

35019A

FLAP

35019-1038

Unavailable

35022

FENDER-RR,L.GREEN

35022-1095-6W

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92027

COLLAR,L=5.1

92027-1260

$6.22

92071

GROMMET

92071-024

$4.65

92072

BAND,L=186

92072-056

$5.00

130

BOLT-FLANGED,6X12

130G0612

$1.69

130A

BOLT,FLANGED,6X14

130G0614

$1.17

130B

BOLT-FLANGED,6X18

130G0618

$1.44
