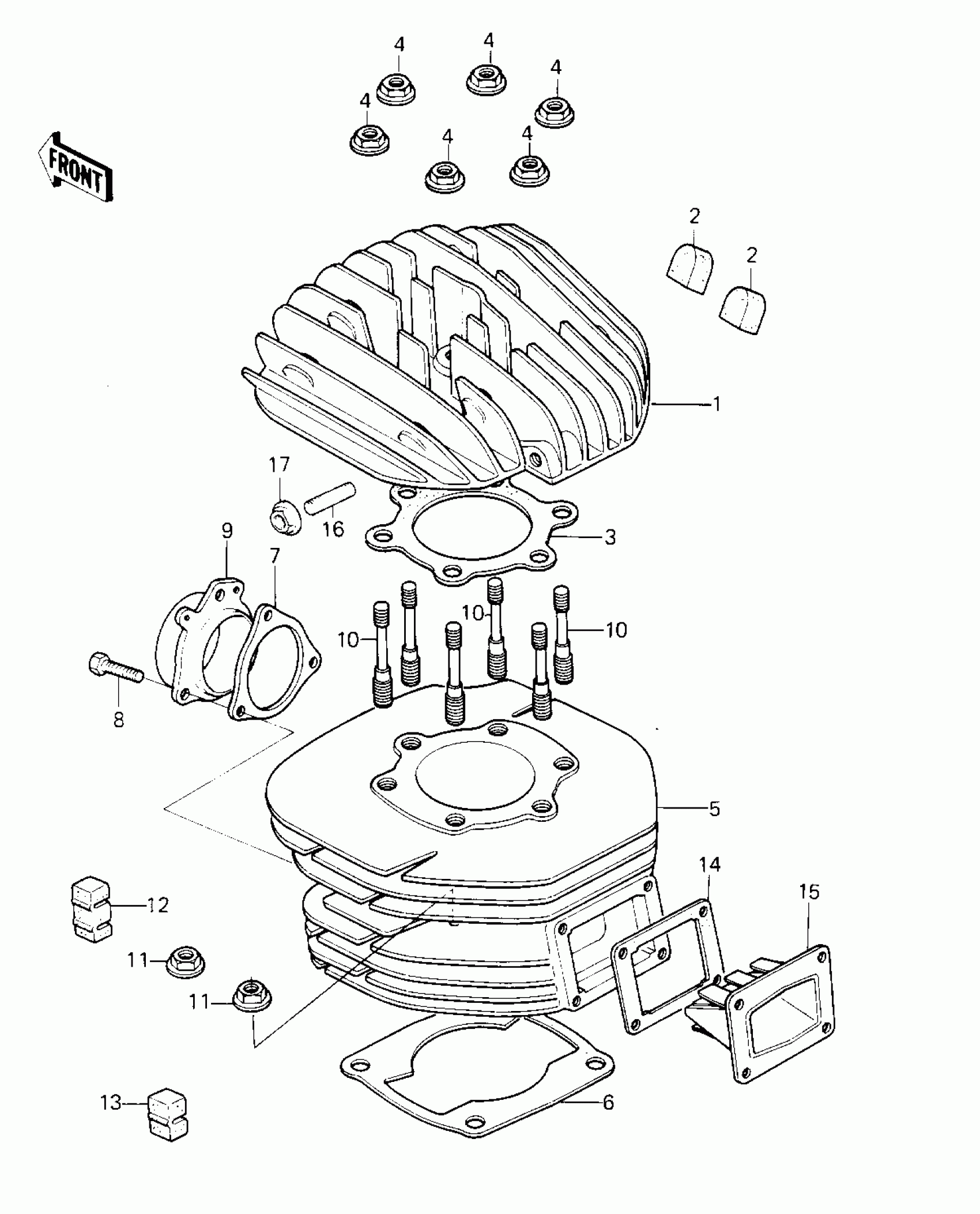

Kawasaki KDX250 CYLINDER HEAD/CYLINDER/REED VALVE ('81KD Diagram
#
Description
Price
1
CYLINDER HEAD,F BLACK
11001-1031
Unavailable
3
GASKET,CYL HEAD
11004-1012
Unavailable
5
CYLINDER
11005-1094
Unavailable
6
GASKET,CYLINDER BASE
11009-038
Unavailable
7
GASKET,EXHAUST PIPE
11009-1017
Unavailable
9
HOLDER,EXHAUST PIPE
18069-1013
Unavailable
10
STUD,L=39
92004-1026
Unavailable
12
DAMPER,CYLINDER
92075-1160
Unavailable
13
DAMPER,CYLINDER
92075-1161
Unavailable
14
GASKET,REED VALVE
11009-1018
Unavailable
15
VALVE ASSY,REED
12021-1007
Unavailable
