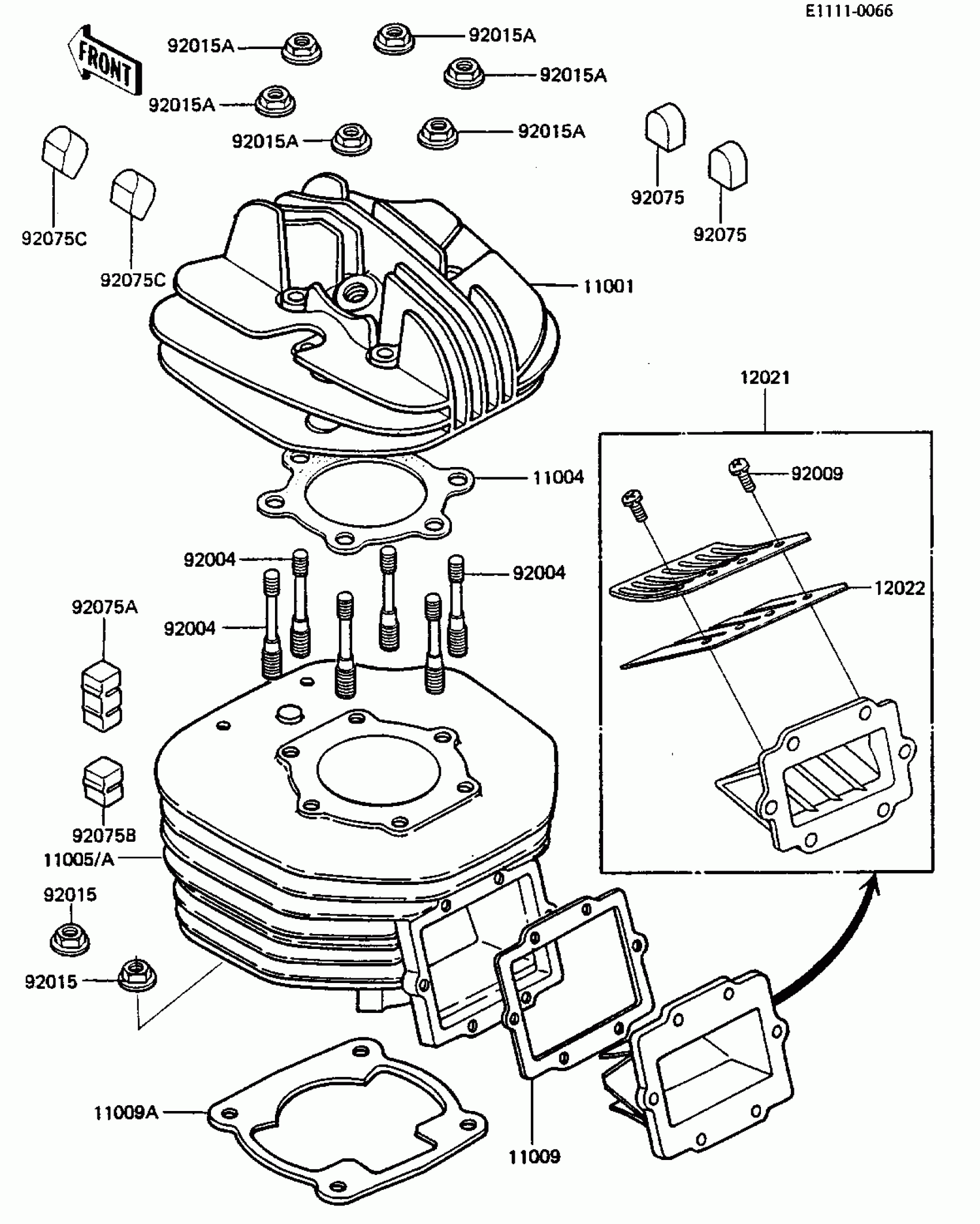

Kawasaki KDX250 CYLINDER HEAD/CYLINDER/REED VALVE Diagram

Description

Price

11001

HEAD-CYLINDER

11001-1070

Unavailable

11004

GASKET,CYL HEAD

11004-1012

Unavailable

11005A

CYLINDER-ENGINE

11005-1348

Unavailable

11009

GASKET,REED VALVE

11009-1950

$11.49

11009A

GASKET,CYLINDER BASE

11009-1254

Unavailable

12021

VALVE-ASSY-REED

12021-1022

Unavailable

12022

VALVE-REED

12022-1010

Unavailable

92004

STUD,L=39

92004-1026

Unavailable

92009

SCREW,REED VALVE

92009-1014

$2.49

92015

NUT,FLANGED,10MM

92015-1415

$4.69

92015A

NUT,8MM

92015-1143

$0.65

92075

DAMPER,CYLINDER HEAD

92075-1176

$5.61

92075A

DAMPER,CYLINDER

92075-1229

Unavailable

92075B

DAMPER,CYLINDER

92075-1344

$4.18

92075C

DAMPER,CYLINDER HEAD

92075-1368

$3.98
