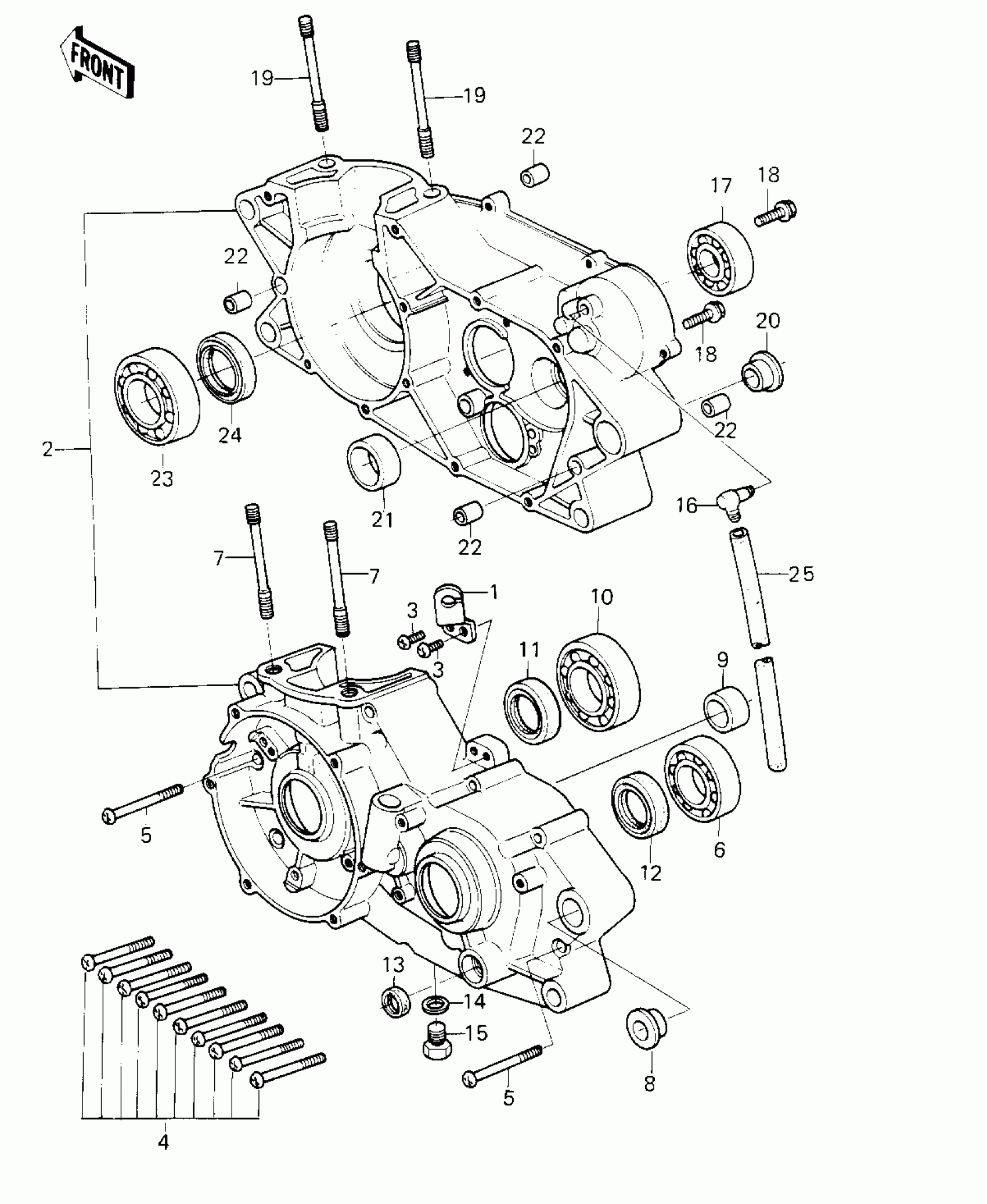

Kawasaki KDX250 CRANKCASE ('81KDX250-B1) Diagram
#
Description
Price
1
HOLDER,CLUTCH CABLE
13091-1068
Unavailable
2
CRANKCASE SET
14001-5069
Unavailable
3
SCREW-PAN-CROS,6X16
220B0616
$2.84
4
SCREW PAN HEAD 6X50
220B0650
$1.25
5
SCREW-PAN-CROS,6X60
220B0660
$1.79
6
BEARING-BALL,#6205C3
601B6205
$19.57
7
STUD,10X65
92004-1032
Unavailable
8
BUSHING,CASE PIVOT
92028-1123
$29.15
9
BUSHING,23X30X13
92028-132
$38.06
10
BEARING,BALL,#6305SH
92045-1024
Unavailable
11
SEAL-OIL,TCJ20407
92049-1052
$31.73
12
SEAL-OIL,TB3040
92050-033
$21.74
13
SEAL-OIL,TB13225.5
92051-005
$7.74
14
GASKET,10.5X16X1
92065-058
$3.96
15
PLUG,DRAIN,10X12
92067-001
$4.41
16
BREATHER
14069-003
$10.29
17
BEARING-BALL,#6204C3
601B6204
$13.65
18
BOLT,FLANGED,6X18
92001-1066
$6.22
19
STUD,10X65
92004-1032
Unavailable
20
BUSHING,CASE PIVOT
92028-1123
$29.15
21
BUSHING,26X35X14
92028-131
$38.06
22
PIN,DOWEL,10X14
92043-1037
$0.74
23
BEARING,BALL,#6305SH
92045-1024
Unavailable
24
SEAL-OIL,TCJ25457
92049-1051
$36.79
25
TUBE,6X9X500
92059-1125
$18.63
