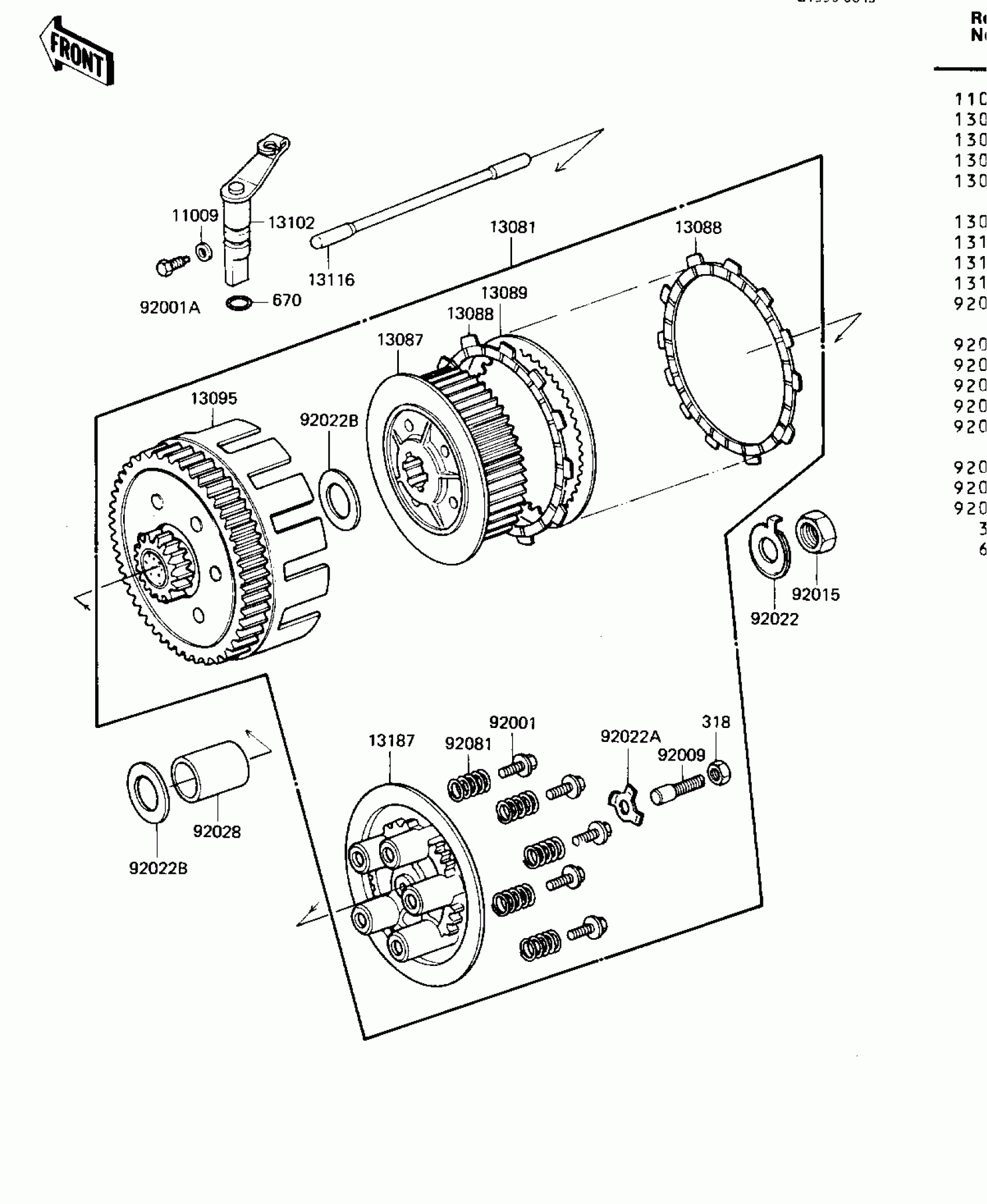

Kawasaki KDX250 CLUTCH ('82 KDX250-B2) Diagram

Description

Price

11009

GASKET,6X14X0.8

92065-092

$4.34

13081

CLUTCH-ASSY

13081-1073

Unavailable

13087

HUB,CLUTCH

13087-044

Unavailable

13088

PLATE-FRICTION

13088-1009

$16.82

13089

PLATE-CLUTCH,T=1.2

13089-1010

$15.41

13095

HOUSING,CLUTCH

13095-1026

Unavailable

13102

RELEASE,CLUTCH

13102-1006

Unavailable

13116

ROD,CLUTCH PUSH

13116-1021

Unavailable

13187

PLATE-CLUTCH OPERATIN

13187-1009

Unavailable

92001

BOLT,FLANGED,6X18

92001-1066

$6.22

92001A

BOLT,CLUTCH RELEASE

92003-130

$6.01

92009

SCREW,SLOTTED,8X35

92014-017

$20.07

92015

NUT,20MM

92016-028

$9.91

92022

WASHER,LOCK

92022-1047

Unavailable

92022A

WASHER,LOCK,8.5MM

92022-1287

Unavailable

92022B

WASHER,CLUTCH THRUST

92022-282

Unavailable

92028

BUSHING,CLUTCH

92028-1076

Unavailable

92081

SPRING,CLUTCH

92081-1151

Unavailable

318

NUT-HEX-SMALL,8MM

318G0800

Unavailable

670

O RING,10MM

670B2010

$1.50
