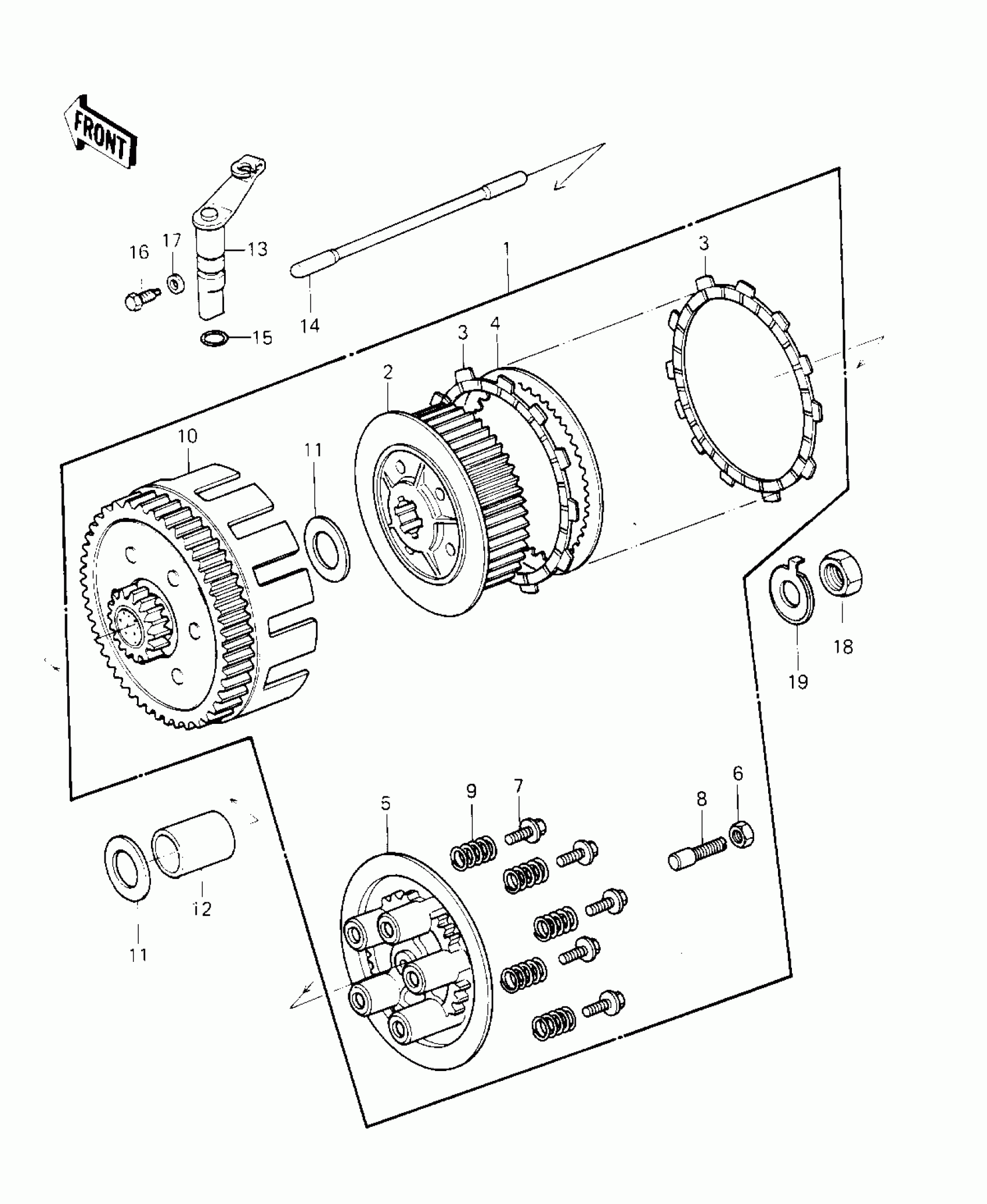

Kawasaki KDX250 CLUTCH ('81KDX250-B1) Diagram

#

Description
Price

1

CLUTCH-ASSY

13081-1038

Unavailable

2

HUB,CLUTCH

13087-044

Unavailable

3

PLATE,CLUTCH FRICTION

13088-041

Unavailable

4

PLATE,CLUTCH STEEL

13089-025

Unavailable

5

PLATE-CLUTCH OPERATIN

13187-1009

Unavailable

6

NUT-HEX-SMALL,8MM

318G0800

Unavailable

7

BOLT,FLANGED,6X18

92001-1066

$6.22

8

SCREW,SLOTTED,8X35

92014-017

$20.07

9

SPRING,CLUTCH

92081-1151

Unavailable

10

HOUSING,CLUTCH

13095-1026

Unavailable

11

WASHER,CLUTCH THRUST

92022-282

Unavailable

12

BUSHING,CLUTCH

92028-1076

Unavailable

13

RELEASE,CLUTCH

13102-1006

Unavailable

14

ROD,CLUTCH PUSH

13116-1021

Unavailable

15

O RING,10MM

670B2010

$1.50

16

BOLT,CLUTCH RELEASE

92003-130

$6.01

17

GASKET,6X14X0.8

92065-092

$4.34

18

NUT,LOCK,16MM

92015-072

$7.34

19

WASHER,LOCK,16M/M

92024-076

Unavailable
