Description

Price

1

BOLT SMALL

114G0812

Unavailable

2

LEVER-BRAKE,PEDAL

43001-4008

Unavailable

3

PIN,6X17

92043-064

$4.69

4

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

5

PIN COTTER 2.0X15

550D2015

$1.04

6

NUT 6MM

311B0600

$0.93

7

BOLT 6X22

112B0622

$3.48

8

ROD-BRAKE

43011-4004

Unavailable

9

SPRING RETURN

92081-1059

Unavailable

10

SPRING,BRAKE ROD

43012-001

$4.65

11

PIN,BRAKE

92043-1024

$10.86

12

NUT,WING,6MM

92015-4004

$7.29

13

HOOK

27012-4001

$0.36

14

WASHER SPRING 8MM

461F0800

$0.40

15

WASHER,8.5X20X1.6

92022-1561

$4.31

16

WASHER, BRAKE ROD

92022-4003

Unavailable

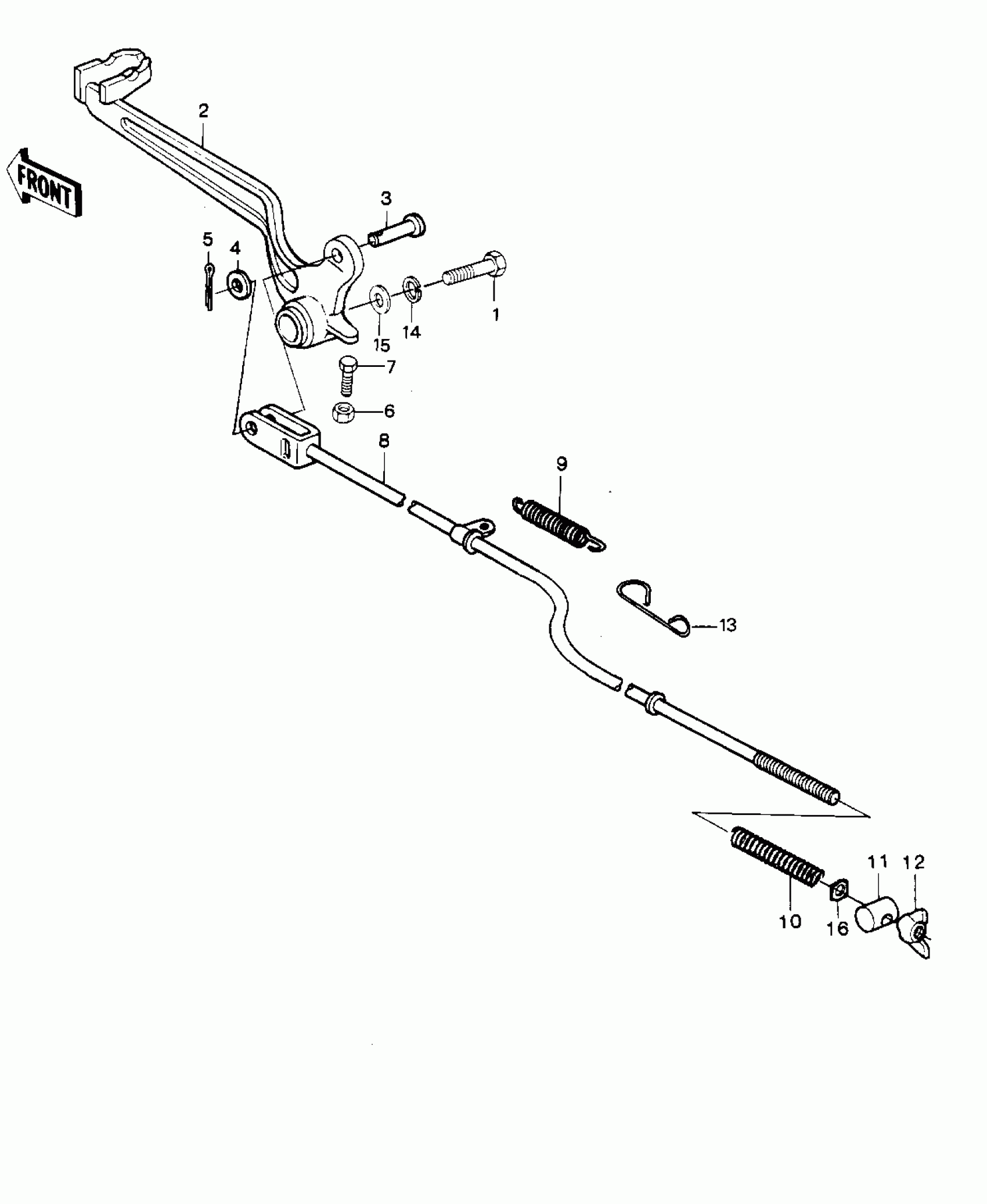

Kawasaki KDX250 BRAKE PEDAL ('81KDX250-B1) Diagram

BOLT SMALL

LEVER-BRAKE,PEDAL

PIN,6X17

WASHER-PLAIN-SMALL,6MM

PIN COTTER 2.0X15

NUT 6MM

BOLT 6X22

ROD-BRAKE

SPRING RETURN

SPRING,BRAKE ROD

PIN,BRAKE

NUT,WING,6MM

HOOK

WASHER SPRING 8MM

WASHER,8.5X20X1.6

WASHER, BRAKE ROD
