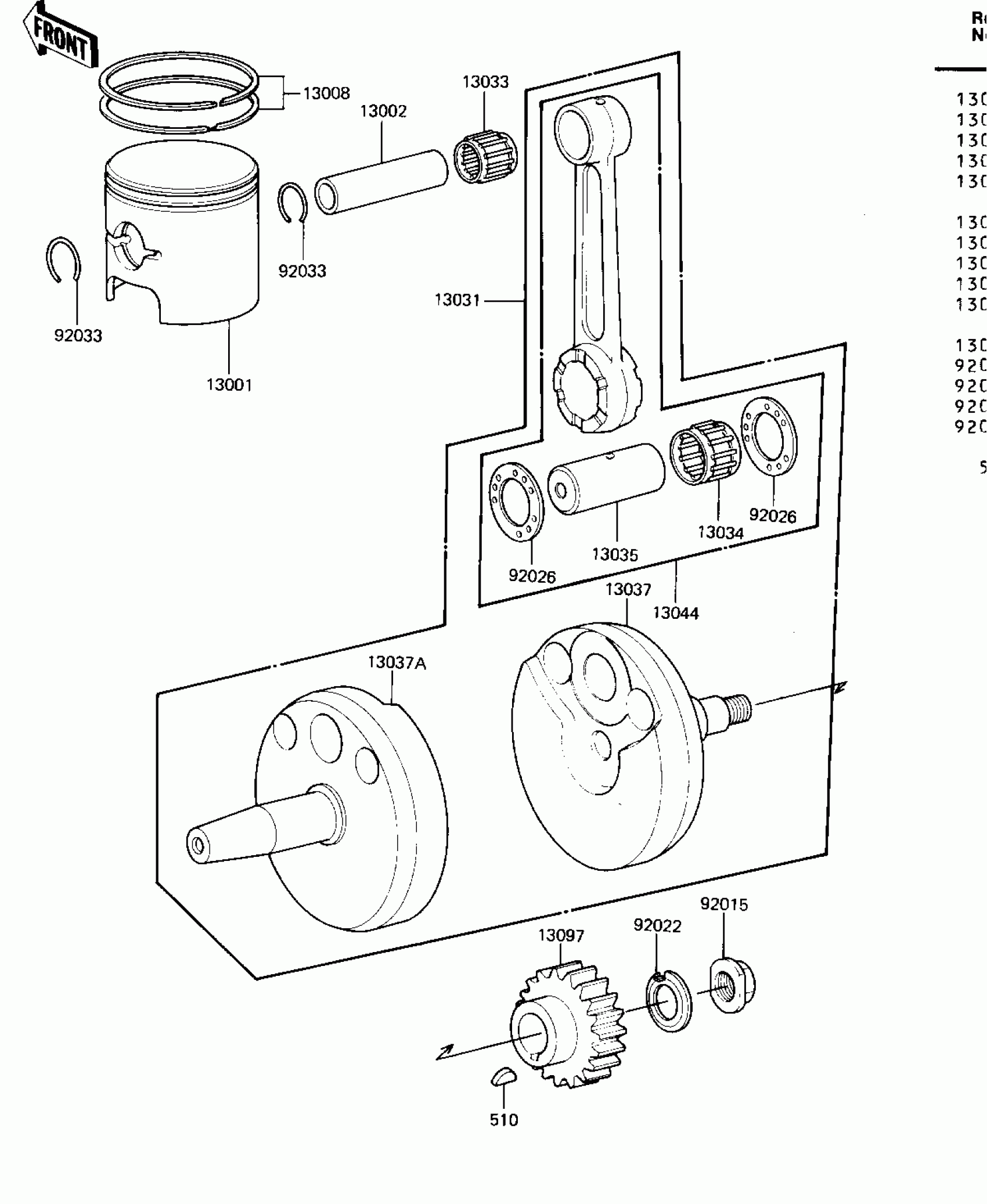

Kawasaki KDX250 ('82 KDX250-B2) Diagram

Description

Price

13001

PISTON,STD

13001-1039

Unavailable

13002

PIN-PISTON

13002-017

$29.98

13008

RING SET,STD

13008-5026

Unavailable

13031

CRANKSHAFT ASSY

13031-1049

Unavailable

13033

BEARING-SMALL END

13033-1010

$25.15

13034

BEARING,BIG END NEEDL

13034-049

$38.29

13035

PIN,CRANK

13035-034

$85.12

13037

CRANKSHAFT,R.H

13037-1069

Unavailable

13037A

CRANKSHAFT

13037-1097

Unavailable

13044

CONNECTING ROD SET

13044-5007

Unavailable

13097

GEAR,PRIMARY

13097-1028

Unavailable

92015

NUT,CRANKSHAFT

92015-069

Unavailable

92022

WASHER,LOCK

92024-061

Unavailable

92026

SPACER

92026-1241

$9.48

92033

CIRCLIP-PISTON PIN

92036-015

$4.95

510

WOODRUFF KEY

510A5100

$2.70
