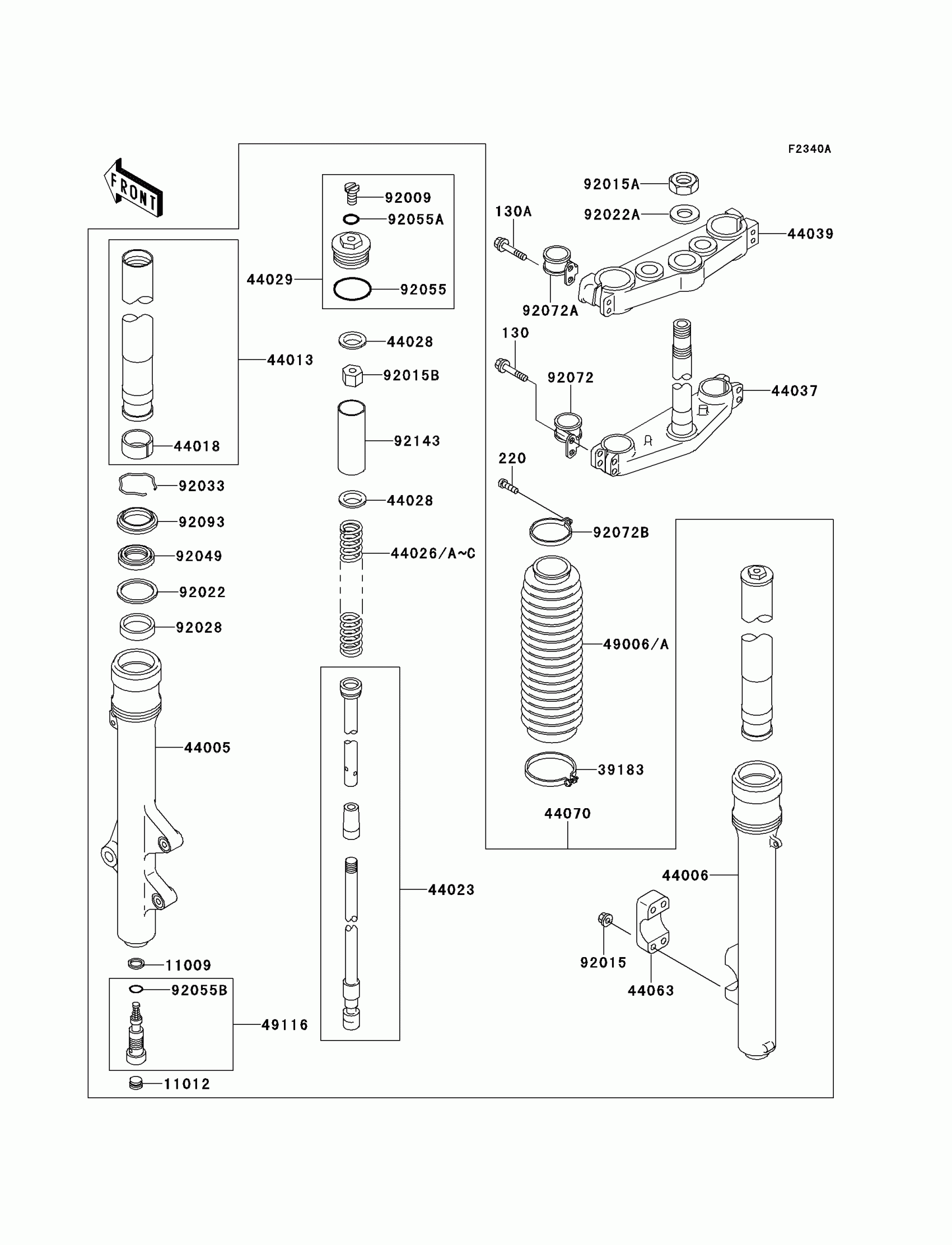

Kawasaki KDX220R Front Fork(KDX220-A5-A8) Diagram
#
11009
GASKET,FORK CYLINDER BOLT
11009-1592
$6.16
11012
CAP,FORK CYLINDER
11012-1381
$6.11
39183
BAND-ASSY,BOOT
39183-1060
$11.07
44005
PIPE-LEFT FORK OUTER
44005-1345
$435.87
44006
PIPE-RIGHT FORK OUTER
44006-1343
Unavailable
44013
PIPE-FORK INNER
44013-1403
$517.29
44018
PISTON-FORK,INNER PIPE
44018-1056
$28.45
44023
CYLINDER-COMP-FORK
44023-1109
$302.02
44026
SPRING-FRONT FORK,K=0.34
44026-1574
$105.65
44026A
SPRING-FRONT FORK,K=0.36
44026-1575
$96.18
44026B
SPRING-FRONT FORK,K=0.37
44026-1576
$96.18
44026C
SPRING-FRONT FORK,K=0.35
44026-1638
$103.73
44028
GUIDE-FORK SPRING
44028-1010
$11.30
44029
SEAT-FORK SPRING
44029-1152
$67.65
44037
HOLDER-FORK UNDER
44037-1369
$751.54
44039
HOLDER-FORK UPPER
44039-1256
$325.96
44063
HOLDER-FRONT AXLE
44063-1056
$55.31
44070
DAMPER-ASSY,FORK SET
44070-1576
Unavailable
49006
BOOT,FORK,BLACK
49006-1296-BD
$99.26
49116
VALVE-ASSY,FORK
49116-1132
$195.65
92009
SCREW
92009-1568
$7.21
92015
NUT,FLANGED,6MM
92015-1078
Unavailable
92015A
NUT,STEERING STEM,22MM
92015-1653
$16.69
92015B
NUT
92015-1839
$19.64
92022
WASHER
92022-1299
$8.58
92022A
WASHER,STEERING STEM
92022-1873
$7.45
92028
BUSHING
92028-1581
$21.80
92033
RING-SNAP
92033-1077
$4.96
92049
SEAL-OIL,FORK OUTER TUBE
92049-1316
$28.98
92055
RING-O
92055-1123
$6.22
92055A
RING-O,2.8X6.6X1.9
92055-1441
$4.33
92055B
RING-O,FORK VALVE
92055-1502
$7.45
92072
BAND,CABLE
92072-1166
$27.29
92072A
BAND
92072-1268
$23.46
92072B
BAND,BOOT
92072-1316
$11.49
92093
SEAL,FORK DUST
92093-1260
$27.10
130
BOLT-FLANGED,8X45
130G0845
$1.58
130A
BOLT-FLANGED,8X50
130G0850
$2.19
220
SCREW PAN HEAD 4X16
220B0416
$1.66
92143
COLLAR,FORK,L=90
92143-1645
$25.61
