Description

Price

11009

GASKET,5.5X13X1.2

11009-1881

Unavailable

11012

CAP,TAIL PIPE

11012-1739

Unavailable

11060

GASKET,EXHAUST PIPE

11009-1995

$9.03

13183

PLATE,TAIL PIPE

13183-1569

Unavailable

18002

BODY-COMP-MUFFLER

18002-1933

$449.85

18046

WOOL,BAFFLE PIPE

18046-1115

Unavailable

49069

MUFFLER-ASSY

49069-1137

$429.67

49099

BAFFLE-PIPE MUFFLER,FR

49099-1286

Unavailable

49099A

BAFFLE-PIPE MUFFLER,RR

49099-1287

$110.38

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.5X22X1.6

92022-237

$3.92

92027

COLLAR,6.8X10X11.5

92027-1210

$10.28

92027A

COLLAR,L=5.6

92027-1933

$5.78

92037

CLAMP,CARBURETOR,40MM

92037-1129

$9.58

92055

RING-O,61.6X3.5

92055-1431

Unavailable

92075

DAMPER

92075-1598

$8.58

92075A

DAMPER,MUFFLER FITTING

92075-1857

$5.96

92075B

DAMPER,MUFFLER

92075-1891

$32.39

92093

SEAL,MUFFLER

92093-1085

$41.75

92144

SPRING

92144-1035

$10.53

92150

BOLT,6X20

92150-1339

$4.39

92150A

BOLT,6X14

92150-1340

$5.07

92160

DAMPER,HEAT

92160-1145

Unavailable

130

BOLT-FLANGED,5X10

130G0510

$1.60

132

BOLT-FLANGED-SMALL

132G0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132G0630

$2.48

670

O RING,39MM

670E3039

$15.89

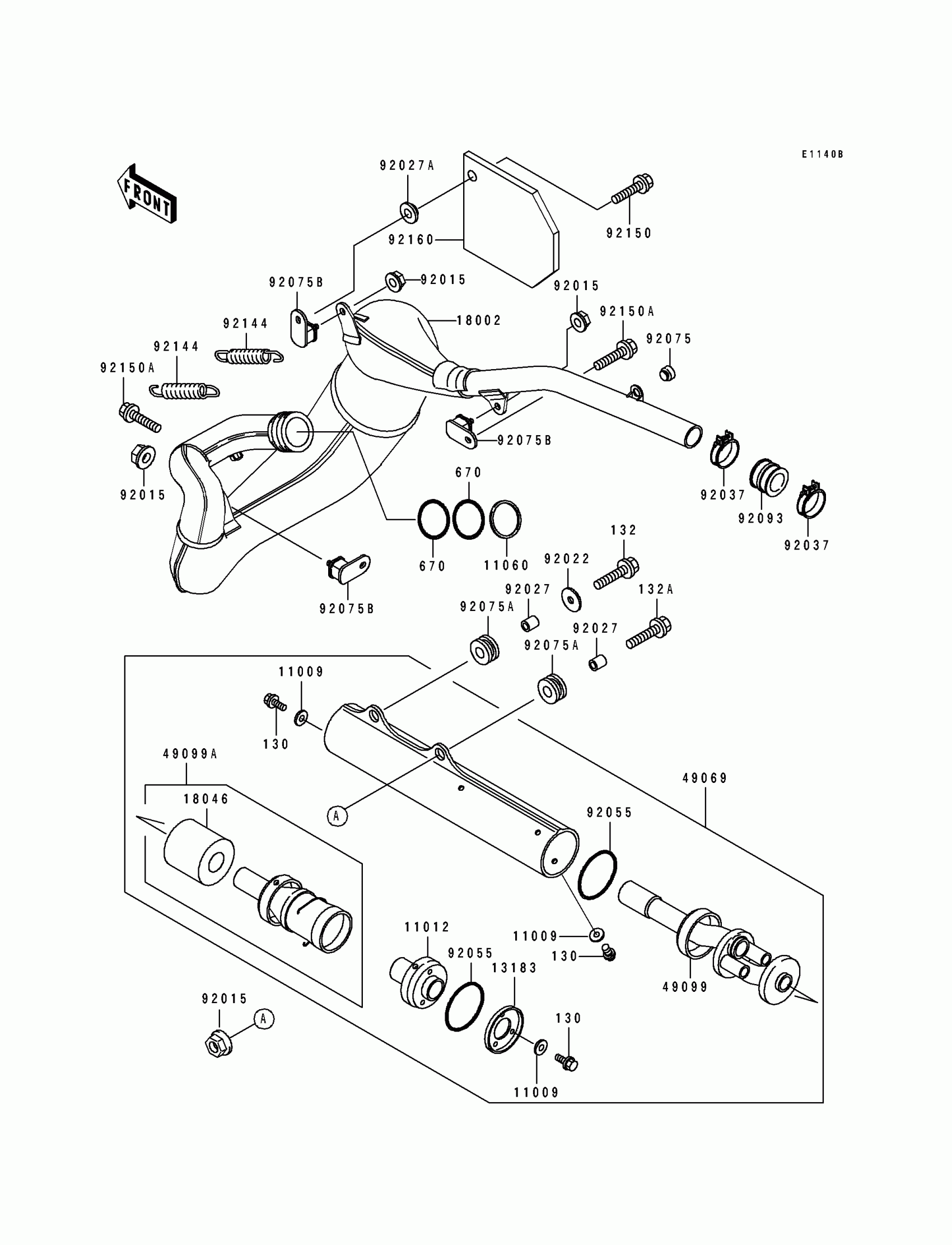

Kawasaki KDX200 Muffler(KDX200-E3) Diagram

GASKET,5.5X13X1.2

CAP,TAIL PIPE

GASKET,EXHAUST PIPE

PLATE,TAIL PIPE

BODY-COMP-MUFFLER

WOOL,BAFFLE PIPE

MUFFLER-ASSY

BAFFLE-PIPE MUFFLER,FR

BAFFLE-PIPE MUFFLER,RR

NUT,FLANGED,6MM

WASHER,6.5X22X1.6

COLLAR,6.8X10X11.5

COLLAR,L=5.6

CLAMP,CARBURETOR,40MM

RING-O,61.6X3.5

DAMPER

DAMPER,MUFFLER FITTING

DAMPER,MUFFLER

SEAL,MUFFLER

SPRING

BOLT,6X20

BOLT,6X14

DAMPER,HEAT

BOLT-FLANGED,5X10

BOLT-FLANGED-SMALL

BOLT-FLANGED-SMALL,6X30

O RING,39MM
