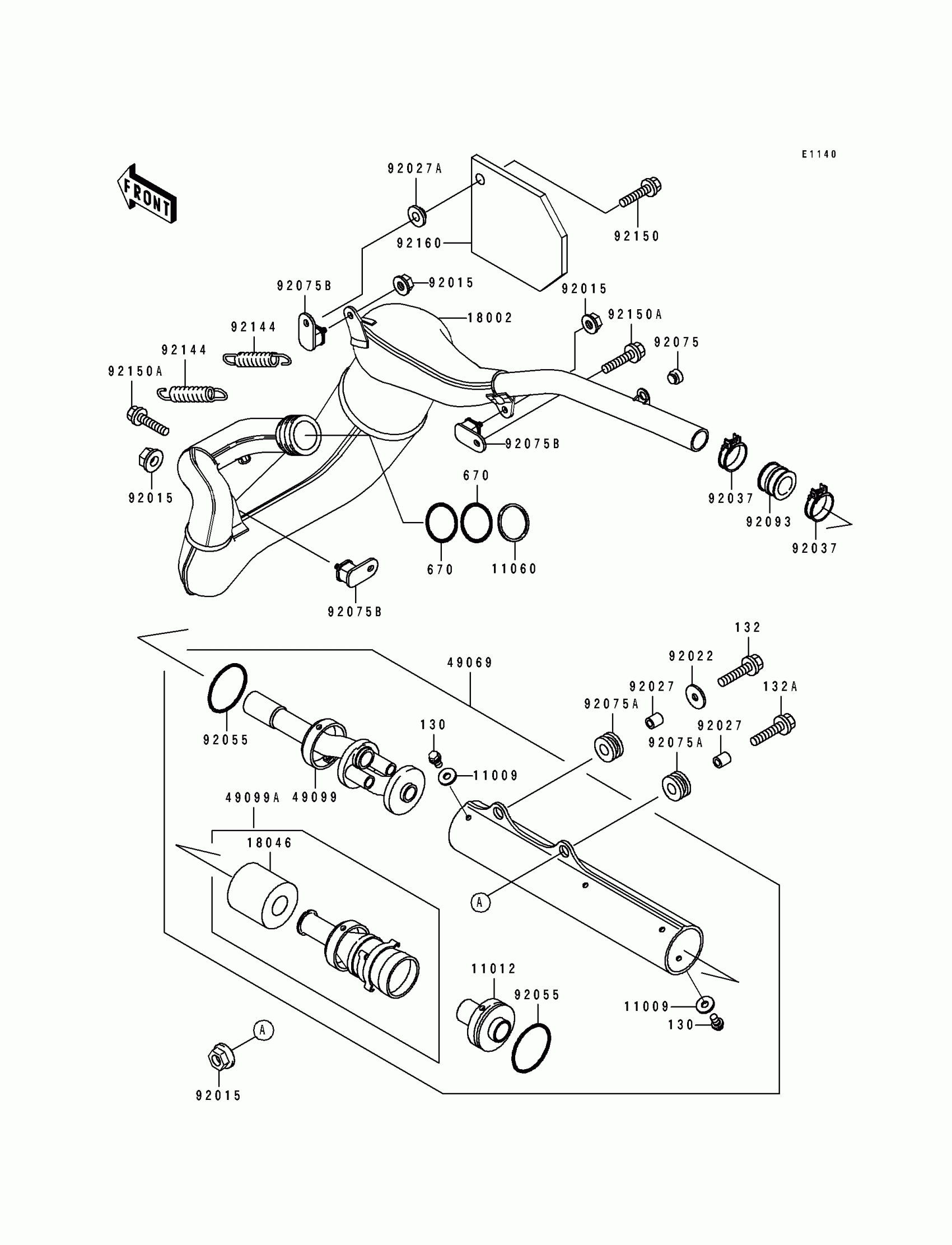

Kawasaki KDX200 Muffler(KDX200-E1) Diagram
#
Description
Price
11009
GASKET,MUFFLER
11009-1818
Unavailable
11012
CAP,TAIL PIPE
11012-1680
Unavailable
11060
GASKET,EXHAUST PIPE
11009-1995
$9.03
18002
BODY-COMP-MUFFLER
18002-1933
$449.85
18046
WOOL
18046-1098
Unavailable
49069
MUFFLER-ASSY
49069-1101
$340.94
49099
BAFFLE-PIPE MUFFLER,FR
49099-1263
$94.11
49099A
BAFFLE-PIPE MUFFLER,RR
49099-1264
$53.23
92015
NUT,FLANGED,6MM
92015-1078
Unavailable
92022
WASHER,6.5X22X1.6
92022-237
$3.92
92027
COLLAR,6.8X10X11.5
92027-1210
$10.28
92027A
COLLAR,L=5.6
92027-1933
$5.78
92037
CLAMP,CARBURETOR,40MM
92037-1129
$9.58
92055
RING-O,61.6X3.5
92055-1431
Unavailable
92075
DAMPER
92075-1598
$8.58
92075A
DAMPER,MUFFLER FITTING
92075-1857
$5.96
92075B
DAMPER,MUFFLER
92075-1891
$32.39
92093
SEAL,MUFFLER
92093-1085
$41.75
92144
SPRING
92144-1035
$10.53
92150
BOLT,6X20
92150-1339
$4.39
92150A
BOLT,6X14
92150-1340
$5.07
92160
DAMPER,HEAT
92160-1145
Unavailable
130
BOLT-FLANGED,5X8
130G0508
$1.85
132
BOLT-FLANGED-SMALL
132G0625
Unavailable
132A
BOLT-FLANGED-SMALL,6X30
132G0630
$2.48
670
O RING,39MM
670E3039
$15.89
