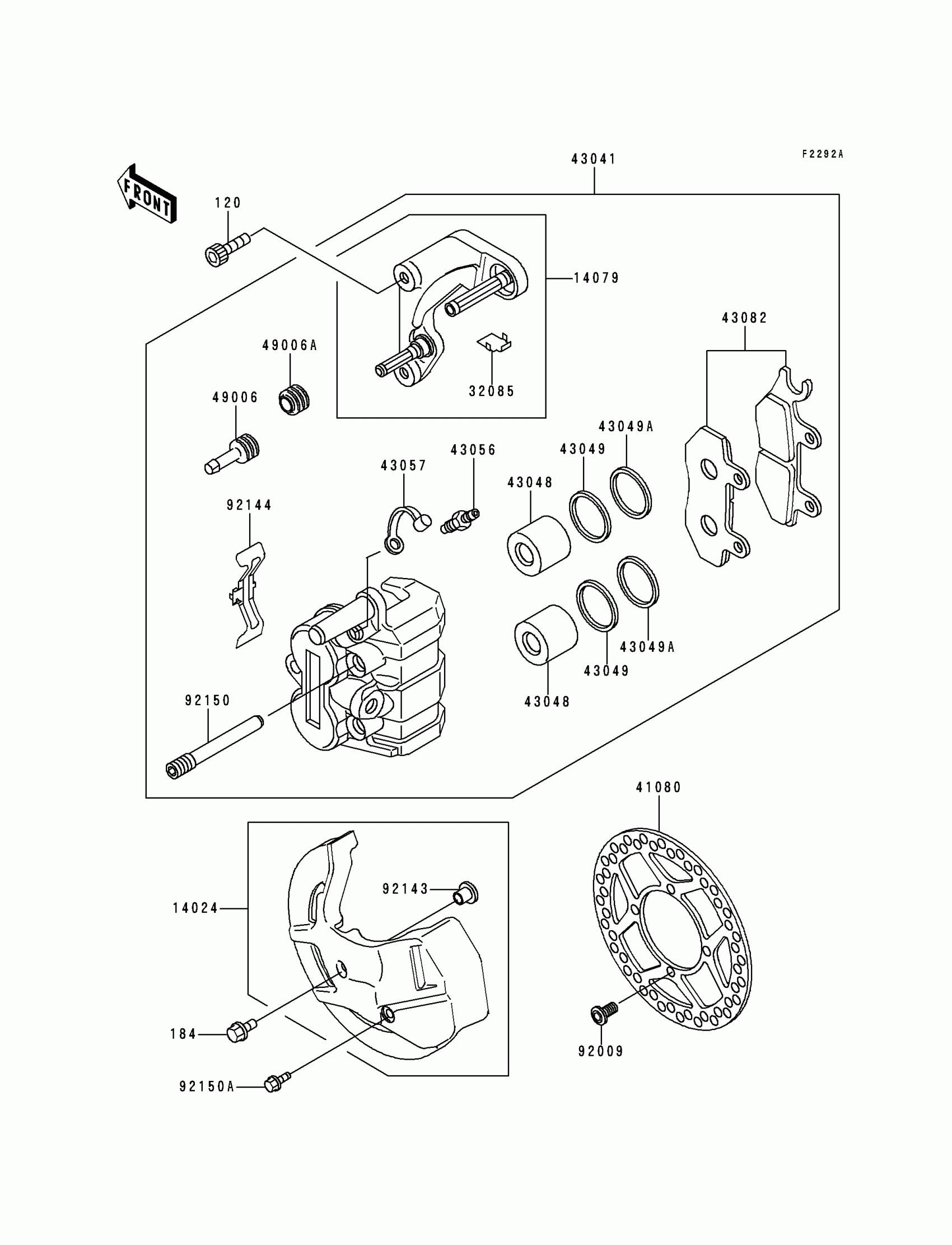

Kawasaki KDX200 Front Caliper(KDX200-E5/E6) Diagram

Description

Price

120

BOLT-SOCKET,8X35

120P0835

$2.62

184

BOLT-UPSET-WP-SMALL

184B0812

Unavailable

14024

COVER,DISC,P.WHITE

14024-1861-6F

$80.76

14079

HOLDER-ASSY,FRONT CALIPER

14079-1088

Unavailable

32085

STOPPER,PAD

32085-1314

Unavailable

41080

DISC,FR

41080-1293

$309.63

43041

CALIPER-ASSY,FR,LH

43041-1427

$416.91

43048

PISTON-CALIPER

43048-1057

Unavailable

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43082

PAD-ASSY-BRAKE

43082-1089

Unavailable

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92009

SCREW,6X14

92009-1546

$4.80

92143

COLLAR

92143-1196

$4.69

92144

SPRING,PAD

92144-1636

Unavailable

92150

BOLT

92150-1144

$9.91

92150A

BOLT,6X14

92150-1340

$5.07
