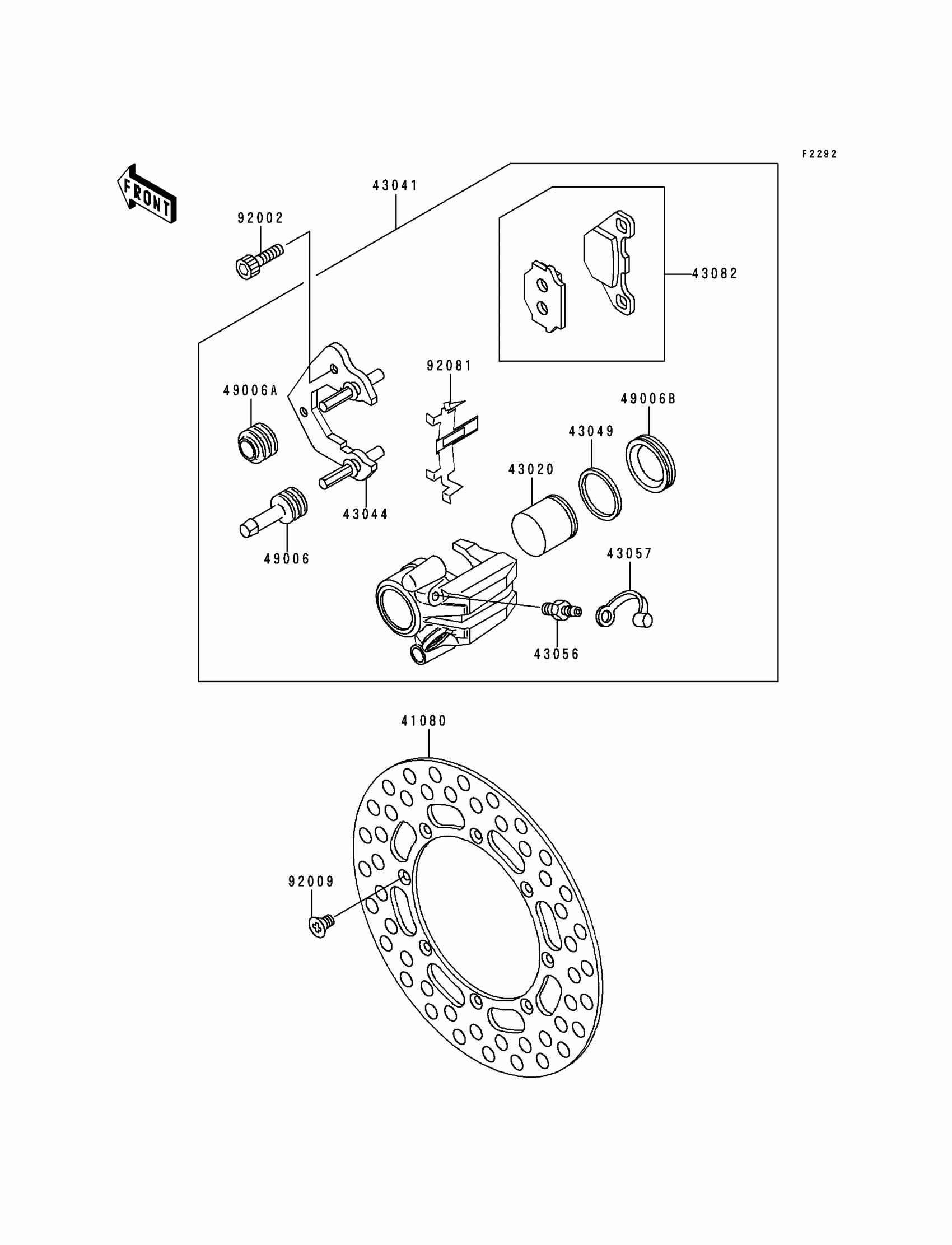

Kawasaki KDX200 Front Caliper(KDX200-E4) Diagram

Description

Price

41080

DISC,FR

41080-1252

$309.63

43020

PISTON-COMP-BRAKE

43020-1082

$72.80

43041

CALIPER-ASSY,FR

43041-1438

Unavailable

43044

HOLDER-COMP-CALIPER

43044-1034

$140.40

43049

PACKING

43049-1027

$13.10

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1086

Unavailable

49006

BOOT,CALIPER

49006-1054

$11.61

49006A

BOOT,CALIPER

49006-1055

$7.27

49006B

BOOT,CALIPER

49006-1093

$17.39

92002

BOLT,SOCKET,8X20

92002-1178

$5.05

92009

SCREW,6X10

92009-1375

$3.92

92081

SPRING,PAD

92081-1341

$14.76
