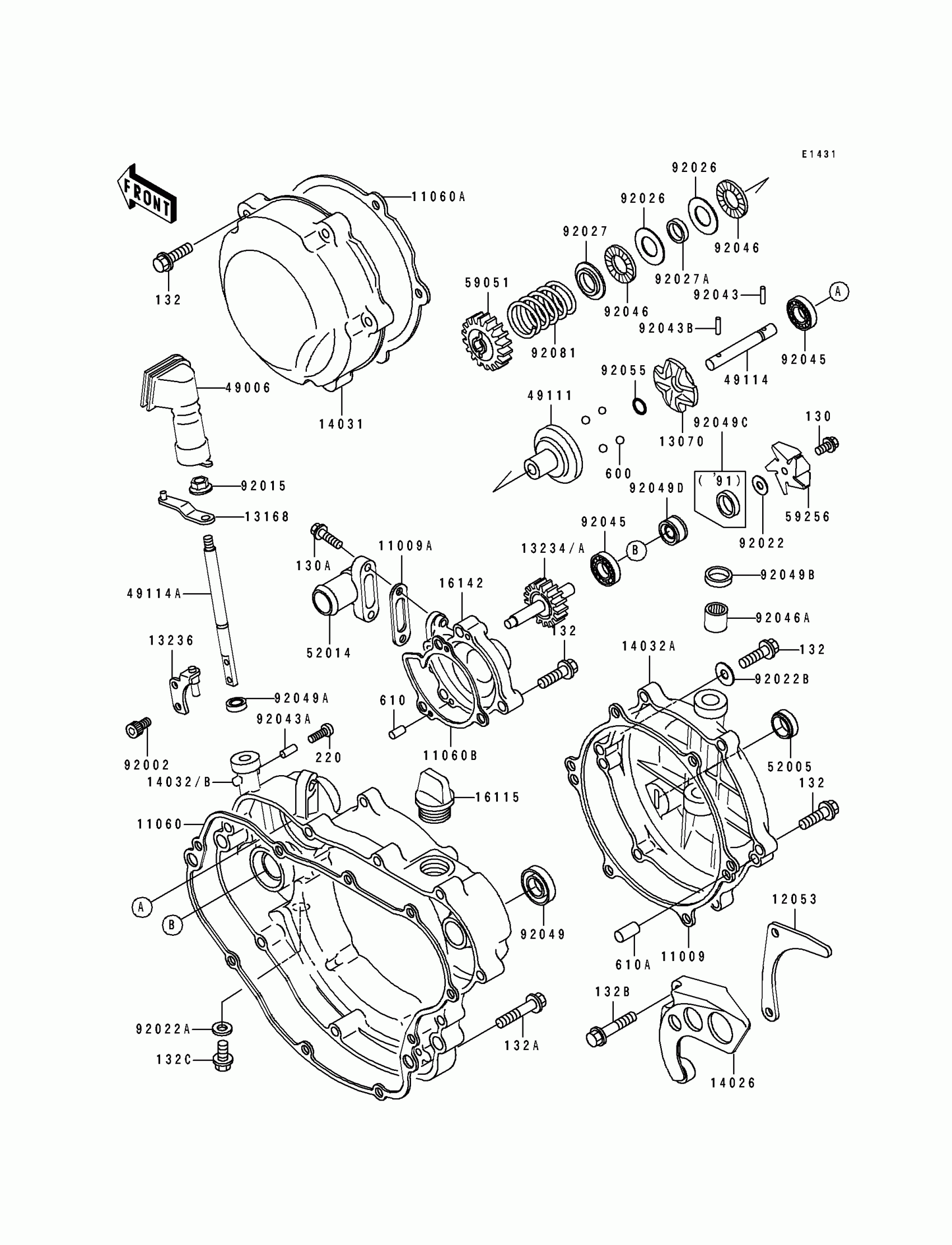

Kawasaki KDX200 Engine Cover Diagram

#

Description
Price

11009

GASKET,RELESASE COVER

11009-1939

$13.50

11009A

GASKET,ELBOW

11009-1952

$5.54

11060

GASKET,CLUTCH COVER

11009-1996

$20.79

11060A

GASKET,GENERATOR COVER

11009-1997

$15.24

11060B

GASKET,WATER PUMP COVER

11009-1998

Unavailable

12053

GUIDE-CHAIN

12053-1228

$26.22

13070

GUIDE

13070-1122

$79.07

13168

LEVER,GOVERNOR

13168-1371

$10.30

13234A

SHAFT-COMP,PUMP

13234-1092

Unavailable

13236

LEVER-COMP,GOVERNOR SHAFT

13236-1190

$11.62

14026

COVER-CHAIN

14026-1158

$27.07

14031

COVER-GENERATOR

14031-1231

$68.76

14032A

COVER-CLUTCH

14032-1266

Unavailable

14032B

COVER-CLUTCH

14032-1296

Unavailable

16115

CAP-OIL FILLER

16115-018

$10.56

16142

COVER-PUMP

16142-1090

$131.21

49006

BOOT,GOVERNOR

49006-1228

$11.64

49111

HOLDER-GOVERNOR WEIGHT

49111-1051

$67.40

49114

SHAFT-GOVERNOR

49114-1058

$32.40

49114A

SHAFT-GOVERNOR

49114-1067

Unavailable

52005

GAUGE,OIL LEVEL

52005-1055

$14.76

52014

ELBOW

52014-1067

$15.89

59051

GEAR-SPUR,GOVERNOR,18T

59051-1189

$35.74

59256

IMPELLER

59256-1067

Unavailable

92002

BOLT,SOCKET,4X8

92002-1403

$3.32

92015

NUT,LEFT HANDED,6MM

92015-1572

$4.11

92022

WASHER,5.2X13X1

92022-1380

$4.31

92022A

WASHER,8.2X14X1.0

92022-1488

$4.92

92022B

WASHER,6.2X11X1

92022-304

$3.65

92026

SPACER,15X28X1

92026-1238

$8.47

92027

COLLAR

92027-1838

$29.26

92027A

COLLAR,15.2X17X4

92027-1839

$12.27

92043

PIN,3X12.8

92043-1256

$4.50

92043A

PIN,2X9.8

92043-1293

$6.52

92043B

PIN,3X19.8

92043-1319

$4.11

92045

BEARING-BALL

92045-1212

$12.37

92046

BEARING-NEEDLE,AXK1102

92046-1052

$14.47

92046A

BEARING-NEEDLE

92046-1176

$15.25

92049

SEAL-OIL,SB18307

92049-013

$14.36

92049A

SEAL-OIL,SDO8144

92049-1207

$9.73

92049B

SEAL-OIL,AG0353-F0

92049-1262

$6.57

92049C

SEAL-OIL,MH8X18X3.5-A

92049-1359

$9.28

92049D

SEAL-OIL,MHSD8X18X10J-1

92049-1366

$17.95

92055

RING-O,5.5X1.5

92055-1343

$0.64

92081

SPRING,GOVERNOR

92081-1769

$6.10

130

BOLT-FLANGED

130P0510

$1.76

130A

BOLT-FLANGED

130P0520

Unavailable

132

BOLT-FLANGED-SMALL

132G0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132G0630

$2.48

132B

BOLT-FLANGED-SMALL,6X40

132G0640

$4.15

132C

BOLT-FLANGED-SMALL

132G0810

$4.02

220

SCREW-PAN-CROS,3X6

220B0306

$0.63

600

BALL-STEEL,5/16

600A1000

$0.73

610

ROLLER,4X8

610A0408

$4.31

610A

ROLLER,6X12

610A0612

$4.69
