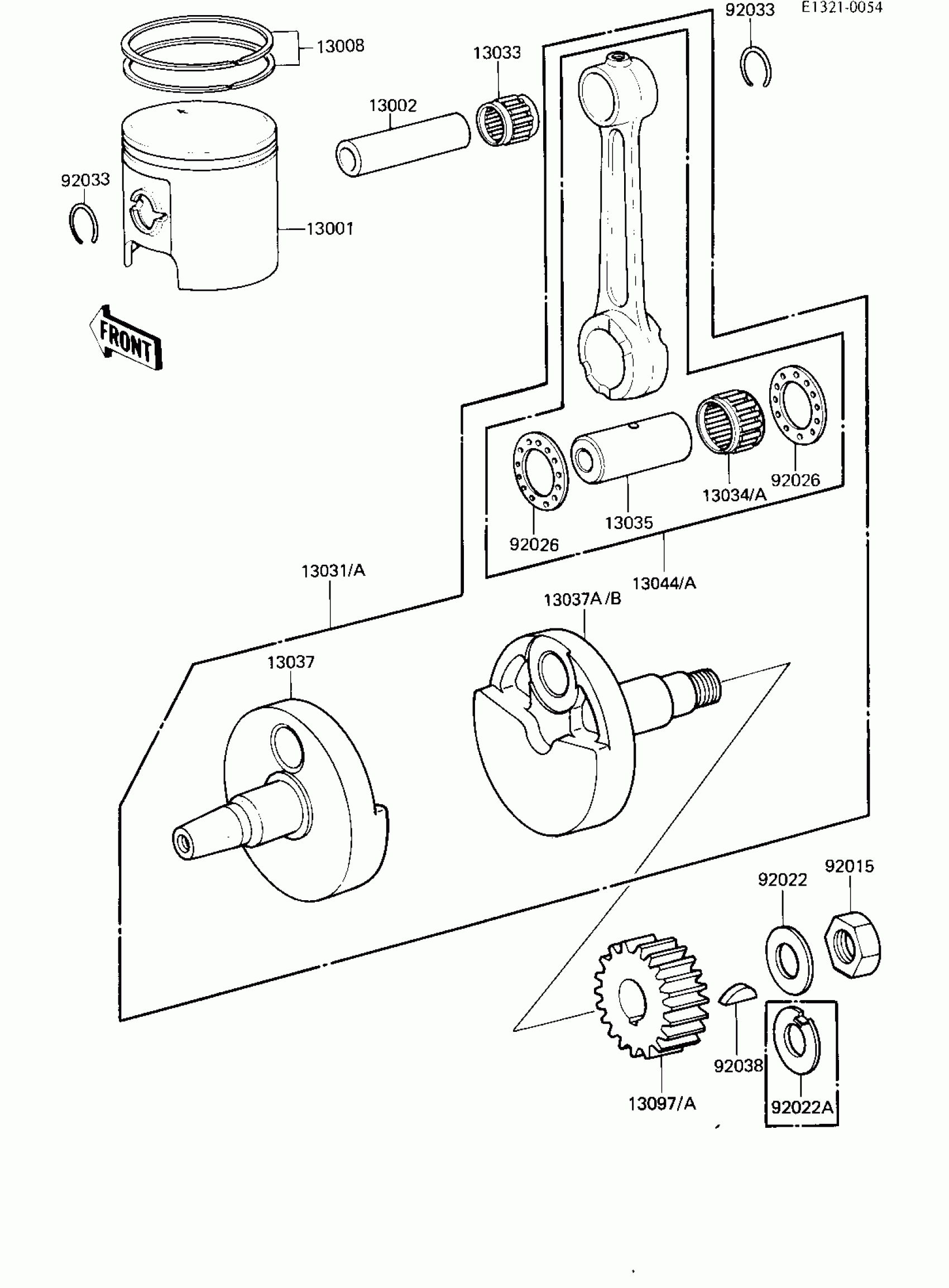

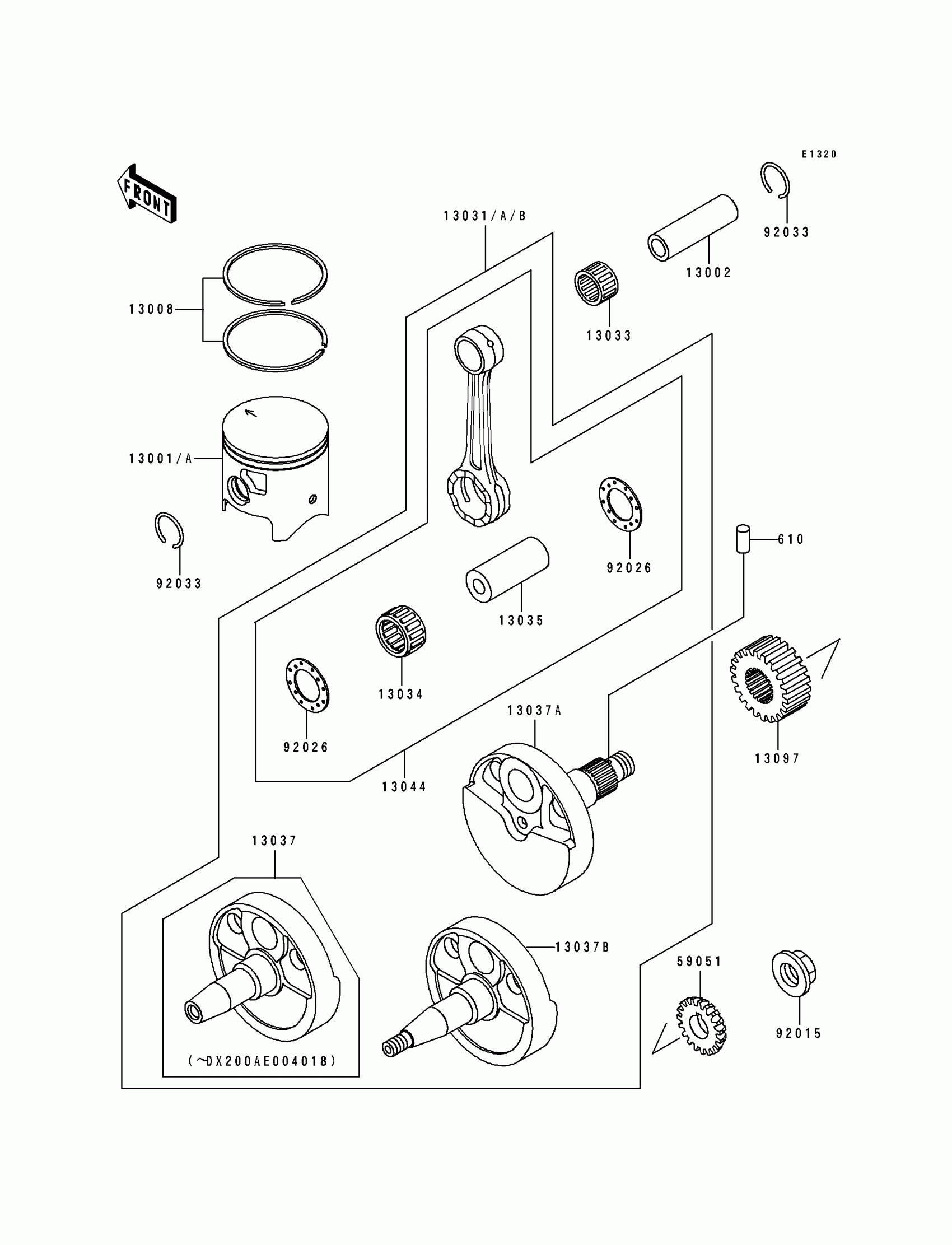

Kawasaki KDX200 Crankshaft/Piston Diagram

Description

Price

13001A

PISTON-ENGINE

13001-1317

$158.51

13002

PIN-PISTON

13002-1053

$22.42

13008

RING-SET-PISTON

13008-1116

$68.29

13031A

CRANKSHAFT-COMP

13031-1300

Unavailable

13033

BEARING-SMALL END

13033-1056

$23.42

13034

BEARING-BIG END,B4

13034-1081

$71.95

13035

PIN-CRANK

13035-1010

Unavailable

13037A

CRANKSHAFT,RH

13037-1361

Unavailable

13037B

CRANKSHAFT,LH

13037-1382

Unavailable

13044

SET-CONNECTING ROD

13044-5071

Unavailable

13097

GEAR-PRIMARY SPUR,22T

13097-1157

Unavailable

59051

GEAR-SPUR,WATER PUMP

59051-1207

$33.06

92015

NUT,16MM

92015-1581

$19.64

92026

SPACER,22.5X37X1.0

92026-011

$9.89

92033

RING-SNAP,PISTON PIN

92033-1242

$4.07

610

ROLLER,4X8

610A0408

$4.31
