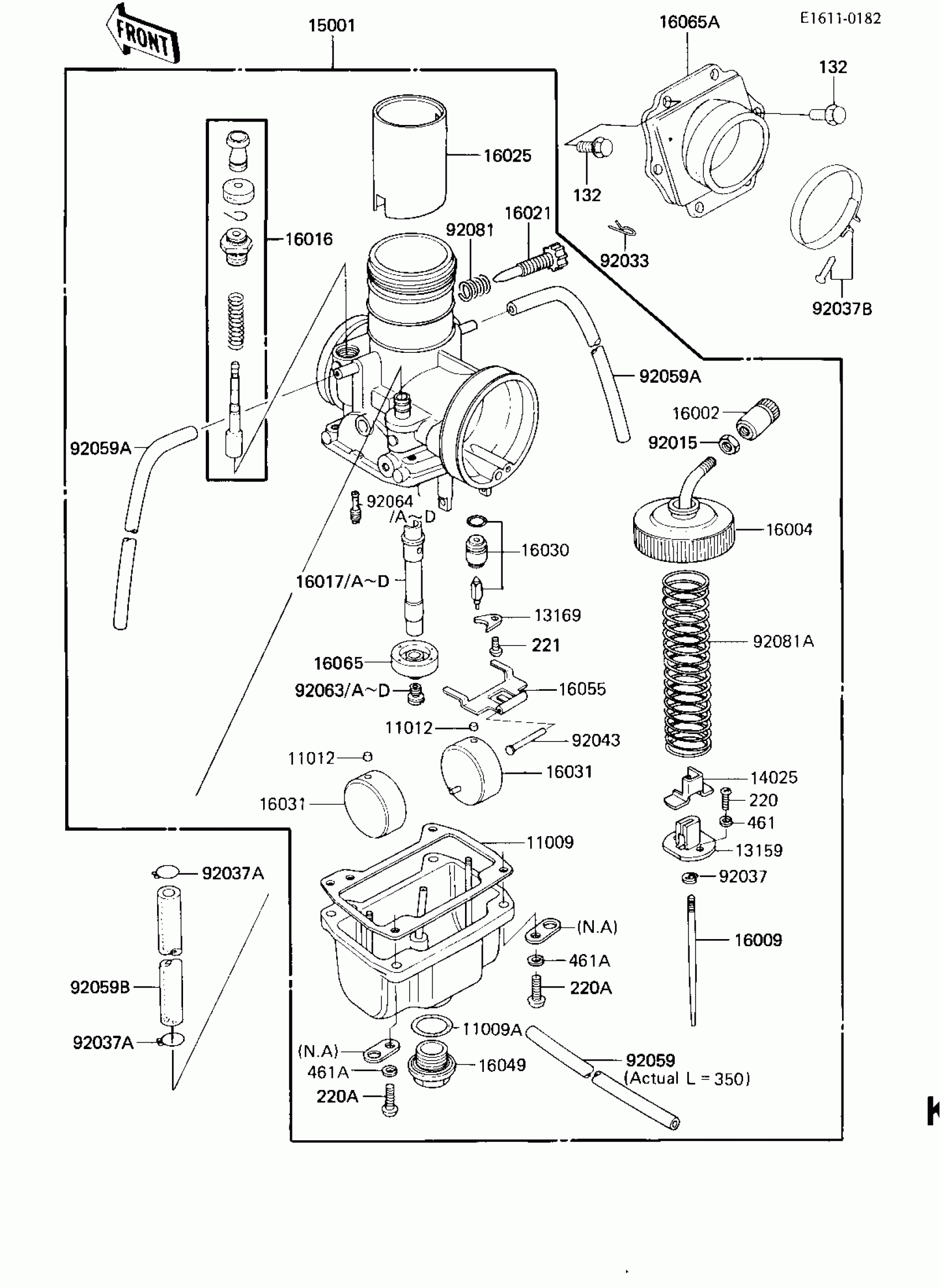

Kawasaki KDX200 CARBURETOR (KDX200-A3) Diagram

#

Description
Price

11009

GASKET,FLOAT CHAMBER

11009-1275

Unavailable

11009A

GASKET,MAIN JET COVER

16038-009

Unavailable

11012

CAP,FLOAT

11012-1047

Unavailable

13159

CONNECTOR,THROTTLE

13159-1010

Unavailable

13169

PLATE,LOCK

13169-1923

Unavailable

14025

COVER,THROTTLE VALVE

14025-1113

Unavailable

15001

CARBURETOR-ASSY

15001-1120

$359.49

16002

ADJUSTER-CABLE

16002-1006

Unavailable

16004

CAP-CHAMBER,MIXING

16004-1013

Unavailable

16009

NEEDLE-JET,6FL51-4

16009-1245

Unavailable

16016

PLUNGER ASSY,STARTER

16016-1013

Unavailable

16017

JET-NEEDLE,R-4

16017-1212

$45.79

16017A

JET-NEEDLE,R-6

16017-1213

$45.79

16017B

JET-NEEDLE,R-0

16017-1238

Unavailable

16017C

JET-NEEDLE,Q-8

16017-1239

$45.79

16017D

JET-NEEDLE,R-2

16017-1250

Unavailable

16021

SCREW,THROTTLE STOP

16021-1034

Unavailable

16025

VALVE-THROTTLE,CA.3.0

16025-1114

$162.29

16030

VALVE-FLOAT,3.3

16030-1020

Unavailable

16031

FLOAT

16031-029

$64.25

16049

COVER-MAIN JET

16049-006

Unavailable

16055

ARM-FLOAT

16055-009

Unavailable

16065

HOLDER-CARBURETOR,NEEDLE JET

16065-1045

Unavailable

16065A

HOLDER-CARBURETOR

16065-1070

Unavailable

92015

NUT,CABLE ADJUST LOCK

16003-004

$7.34

92033

RING-SNAP

92036-018

$3.89

92037

CLAMP,E-TYPE

16008-010

$9.21

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP,CARBURETOR HOLD

92037-1484

Unavailable

92043

PIN,FLOAT

16032-008

$6.57

92059

TUBE,3.5X6.5X350

92059-1211

$12.19

92059A

TUBE,4X7X400

92059-1292

Unavailable

92059B

TUBE,5.8X10.8X180

92059-1443

$35.06

92063

JET-MAIN NO 260A

92063-028

$16.36

92063A

JET-MAIN NO 270A

92063-029

Unavailable

92063B

JET-MAIN NO 280A

92063-030

$16.36

92063C

JET-MAIN NO 290A

92063-031

$16.36

92063D

JET-MAIN,#300

92063-045

Unavailable

92064

JET-PILOT,#30

92064-022

$17.03

92064A

JET-PILOT NO 35

92064-023

$20.51

92064B

JET-PILOT NO 40

92064-024

$22.86

92064C

JET-PILOT NO 45

92064-044

$19.70

92064D

JET-PILOT,#27.5

92064-1033

$17.03

92081

SPRING,THRTL STP SCRW

92081-1200

$9.28

92081A

SPRING,THROTTLE VALVE

92081-1432

Unavailable

132

BOLT-FLANGED-SMALL

132G0620

$2.33

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

220A

SCREW-PAN-CROS

220B0518

$4.62

221

SCREW-CSK-CROS,4X8

221B0408

$1.00

461

WASHER SPRING 3MM

461F0300

$0.46

461A

WASHER SPRING 5MM

461F0500

$0.69
